Shell脚本快速部署Kubernetes集群系统

0opi

本文紧跟上节所讲的手动部署Kubernetes管理Docker篇所写，本篇主要内容利用Shell脚本完成快速部署Kubernetes集群。上节博文看过的朋友也能感觉到部署过程相对比较简单，那么，出于简化工作流程，推进运维自动化角度来说，于是花了2/3天时间写这个部署Kubernetes脚本。  运维工作中，常常会遇到部署各种各样的服务，建议：常规部署都应该尽量使用脚本完成，一方面提高自身脚本编写能力，另一方面推进运维自动化。
详细部署说明文档：http://www.iyunv.com/thread-169986-1-1.html
提醒：即使按照本篇文章一步一步做，也不一定部署成功。原因你懂得！如果失败，也建议你仔细看看脚本内容，从中寻找解决办法。同时，相信你也会从脚本中获取到其他有价值的信息。
实验环境：
操作系统：Ubuntu14.04_x64
master：192.168.1.150
minion01 : 192.168.1.151  容器网段：172.17.1.0/24
minion02 : 192.168.1.152  容器网段：172.17.2.0/24
安装包下载：

etcd：http://pan.baidu.com/s/1c1wITMw

kubernetes：http://pan.baidu.com/s/1kUoxgYb

相关脚本下载：http://pan.baidu.com/s/1o7nEaca

百度云附件：k8s-install-scripts.rar等

脚本说明：

config_ssh_root_remote.sh     #配置root SSH登录（默认ubuntu系统禁止root SSH登录）
ssh_keypair_auth.sh         #配置master主机与minion主机SSH免交互认证
kubernetes-install.sh        #安装kubernetes的master端与minion端
config_gre_channel.sh        #配置两台Docker主机容器实现跨主机访问（OVS）

安装步骤（请按照步骤做）：
1）在minion主机root权限开启root允许SSH远程登录
操作命令：$ sudo bash config_ssh_root_remote.sh
脚本内容：$ cat config_ssh_root_remote.sh

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56

#!/bin/bash # Description: configuration root account ssh remote login if [ $USER != "root" ]; then     echo "Please use root account operation or sudo!"     exit 1 fi function color_echo() {     if [ $1 == "green" ]; then         echo -e "\033[32;40m$2\033[0m"     elif [ $1 == "red" ]; then         echo -e "\033[31;40m$2\033[0m"     fi } function check_pkg() {     if ! $(dpkg -l $PKG_NAME >/dev/null 2>&1); then         echo no     else         echo yes     fi } function install_pkg() {     local PKG_NAME=$1     if [ $(check_pkg $PKG_NAME) == "no" ]; then         apt-get install $PKG_NAME -y         if [ $(check_pkg $PKG_NAME) == "no" ]; then             color_echo green "$PKG_NAME installation failure! Try to install again."             apt-get autoremove && apt-get update             apt-get install $PKG_NAME --force-yes -y             [ $(check_pkg $PKG_NAME) == "no" ] && color_echo red "The $PKG_NAME installation failure!" && exit 1         fi     fi } install_pkg expect # modify ssh config file sed -r -i 's/(PermitRootLogin).*/\1 yes/' /etc/ssh/sshd_config service ssh restart >/dev/null # set root account password echo "------------------------------------------------------>" while true; do     read -p "Please enter you want to set the root account password: " ROOT_PASS     if [ -n "$ROOT_PASS" ]; then         break     else         color_echo red "Password cannot be empty!"         continue     fi done expect -c "     spawn passwd root     expect {         \"Enter new UNIX password:\" {send \"$ROOT_PASS\r\"; exp_continue}         \"Retype new UNIX password:\" {send \"$ROOT_PASS\r\"}     }     expect eof " >/dev/null color_echo green "The root account password is: $ROOT_PASS"

2）在master主机切换到root用户执行脚本与minion主机root用户建立SSH免交互登录
操作命令：# bash ssh_keypair_auth.sh root@192.168.1.151-152@123
脚本内容：# cat ssh_keypair_auth.sh

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126

#!/bin/bash # Description: configuration local host and remote host ssh keypair authentication, Support Ubuntu and CentOS operation system. function color_echo() {     if [ $1 == "green" ]; then         echo -e "\033[32;40m$2\033[0m"     elif [ $1 == "red" ]; then         echo -e "\033[31;40m$2\033[0m"     fi } function os_version() {     local OS_V=$(cat /etc/issue |awk 'NR==1{print $1}')     if [ $OS_V == "\S" -o $OS_V == "CentOS" ]; then         echo "CentOS"     elif [ $OS_V == "Ubuntu" ]; then         echo "Ubuntu"     fi } function check_ssh_auth() {     if $(grep "Permission denied" $EXP_TMP_FILE >/dev/null); then         color_echo red "Host $IP SSH authentication failure! Login password error."         exit 1     elif $(ssh $INFO 'echo yes >/dev/null'); then         color_echo green "Host $IP SSH authentication successfully."     fi     rm $EXP_TMP_FILE >/dev/null } function check_pkg() {     local PKG_NAME=$1     if [ $(os_version) == "CentOS" ]; then         if ! $(rpm -ql $PKG_NAME >/dev/null 2>&1); then             echo no         else             echo yes         fi     elif [ $(os_version) == "Ubuntu" ]; then         if ! $(dpkg -l $PKG_NAME >/dev/null 2>&1); then             echo no         else             echo yes         fi     fi } function install_pkg() {     local PKG_NAME=$1     if [ $(os_version) == "CentOS" ]; then         if [ $(check_pkg $PKG_NAME) == "no" ]; then             yum install $PKG_NAME -y             if [ $(check_pkg $PKG_NAME) == "no" ]; then                 color_echo green "The $PKG_NAME installation failure! Try to install again."                 yum makecache                 yum install $PKG_NAME -y                 [ $(check_pkg $PKG_NAME) == "no" ] && color_echo red "The $PKG_NAME installation failure!" && exit 1             fi         fi     elif [ $(os_version) == "Ubuntu" ]; then         if [ $(check_pkg $PKG_NAME) == "no" ]; then             apt-get install $PKG_NAME -y             if [ $(check_pkg $PKG_NAME) == "no" ]; then                 color_echo green "$PKG_NAME installation failure! Try to install again."                 apt-get autoremove && apt-get update                 apt-get install $PKG_NAME --force-yes -y                 [ $(check_pkg $PKG_NAME) == "no" ] && color_echo red "The $PKG_NAME installation failure!" && exit 1             fi         fi     fi } function generate_keypair() {     if [ ! -e ~/.ssh/id_rsa.pub ]; then         color_echo green "The public/private rsa key pair not exist, start Generating..."         expect -c "             spawn ssh-keygen             expect {                 \"ssh/id_rsa):\" {send \"\r\";exp_continue}                 \"passphrase):\" {send \"\r\";exp_continue}                 \"again:\" {send \"\r\";exp_continue}             }         " >/dev/null 2>&1         if [ -e ~/.ssh/id_rsa.pub ]; then             color_echo green "Generating public/private rsa key pair successfully."         else             color_echo red "Generating public/private rsa key pair failure!"             exit 1         fi     fi } EXP_TMP_FILE=/tmp/expect_ssh.tmp if [[ $1 =~ ^[a-z]+@[0-9]{1,3}\.[0-9]{1,3}\.[0-9]{1,3}\.[0-9]{1,3}@.* ]]; then     install_pkg expect ; generate_keypair     for i in $@; do         USER=$(echo $i|cut -d@ -f1)         IP=$(echo $i|cut -d@ -f2)         PASS=$(echo $i|cut -d@ -f3)         INFO=$USER@$IP         expect -c "             spawn ssh-copy-id $INFO             expect {                 \"(yes/no)?\" {send \"yes\r\";exp_continue}                 \"password:\" {send \"$PASS\r\";exp_continue}             }         " > $EXP_TMP_FILE  # if login failed, login error info append temp file         check_ssh_auth     done elif [[ $1 =~ ^[a-z]+@[0-9]{1,3}\.[0-9]{1,3}\.[0-9]{1,3}\.[0-9]{1,3}-[0-9]{1,3}@.* ]]; then     install_pkg expect ; generate_keypair     START_IP_NUM=$(echo $1|sed -r 's/.*\.(.*)-(.*)@.*/\1/')     END_IP_NUM=$(echo $1|sed -r 's/.*\.(.*)-(.*)@.*/\2/')     for ((i=$START_IP_NUM;i<=$END_IP_NUM;i++)); do         USER=$(echo $1|cut -d@ -f1)         PASS=$(echo $1|cut -d@ -f3)         IP_RANGE=$(echo $1|sed -r 's/.*@(.*\.).*/\1/')         IP=$IP_RANGE$i         INFO=$USER@$IP_RANGE$i         expect -c "             spawn ssh-copy-id $INFO             expect {                 \"(yes/no)?\" {send \"yes\r\";exp_continue}                 \"password:\" {send \"$PASS\r\";exp_continue}             }         " > $EXP_TMP_FILE         check_ssh_auth     done else     echo "Example1: $0 <root@192.168.1.10-15@password>"     echo "Example2: $0 <root@192.168.1.10@password>"     echo "Example3: $0 [root@192.168.1.10@password root@192.168.1.11@password root@192.168.1.12@password ...]" fi

3）在master主机root权限执行脚本安装master端服务
操作命令：$ sudo bash kubernetes-install.sh master
脚本内容：$ cat kubernetes-install.sh

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 216 217 218 219 220 221 222 223 224 225 226 227 228 229 230 231 232 233 234 235 236 237 238 239 240 241 242 243 244 245 246 247 248 249 250 251 252 253 254 255 256 257 258 259 260 261 262 263 264 265 266 267 268 269 270 271 272 273 274 275 276 277 278 279 280 281 282 283 284

#!/bin/bash # Description: Installation Kubernetes1.1.3 # Etcd Download: https://github.com/coreos/etcd/r ... -linux-amd64.tar.gz # K8S Download: https://storage.googleapis.com/k ... 3/kubernetes.tar.gz . /lib/lsb/init-functions if [ $(cat /etc/issue |awk '{print $1}') != "Ubuntu" ]; then     echo "Only support ubuntu operating system!"     exit 1 fi if [ $USER != "root" ]; then     echo "Please use root account operation!"     exit 1 fi function color_echo() {     if [ $1 == "green" ]; then         echo -e "\033[32;40m$2\033[0m"     elif [ $1 == "red" ]; then         echo -e "\033[31;40m$2\033[0m"     fi } function check_install_pkg() {     if [ ! -e $ETCD_FILE -a ! -e $K8S_FILE ]; then         color_echo red "$ETCD_FILE and $K8S_FILE file not exist!"         exit 1     elif [ ! -e $ETCD_FILE ]; then         color_echo red "$ETCD_FILE file not exist!"         exit 1     elif [ ! -e $K8S_FILE ]; then         color_echo red "$K8S_FILE file not exist!"         exit 1     fi } function local_ip() {     local NUM ARRAY_LENGTH     NUM=0     for NIC_NAME in $(ls /sys/class/net|grep -vE "lo|docker0"); do         NIC_IP=$(ifconfig $NIC_NAME |awk -F'[: ]+' '/inet addr/{print $4}')         if [ -n "$NIC_IP" ]; then             NIC_IP_ARRAY[$NUM]="$NIC_NAME:$NIC_IP"             let NUM++         fi     done     ARRAY_LENGTH=${#NIC_IP_ARRAY}     if [ $ARRAY_LENGTH -eq 1 ]; then         LOCAL_IP=${NIC_IP_ARRAY[0]#*:}         return 0     elif [ $ARRAY_LENGTH -eq 0 ]; then         color_echo red "No available network card!"         exit 1     else         # multi network card select         for NIC in ${NIC_IP_ARRAY}; do             echo $NIC         done         while true; do             read -p "Please enter local use to network card name: " INPUT_NIC_NAME             for NIC in ${NIC_IP_ARRAY}; do                 NIC_NAME=${NIC%:*}                 if [ $NIC_NAME == "$INPUT_NIC_NAME" ]; then                     LOCAL_IP=${NIC_IP_ARRAY[0]#*:}                     return 0                 fi             done             echo "Not match! Please input again."         done     fi } function check_ip() {     local IP=$1     VALID_CHECK=$(echo $IP|awk -F. '$1<=255&&$2<=255&&$3<=255&&$4<=255{print "yes"}')     if echo $IP|grep -E "^[0-9]{1,3}\.[0-9]{1,3}\.[0-9]{1,3}\.[0-9]{1,3}$" >/dev/null; then         if [ ${VALID_CHECK:-no} == "yes" ]; then             return 0         else             echo "IP $IP not available!"             return 1         fi     else         echo "IP format error!"         return 1     fi } function cluster_ip() {     if [ $1 == "master" ]; then         while true; do             read -p "Please enter master IP: " MASTER_IP             check_ip $MASTER_IP             [ $? -eq 0 ] && break         done     elif [ $1 == "minion" ]; then         while true; do             local MINION_NUM             read -p "Please enter cluster minion node number: " MINION_NUM             if [[ $MINION_NUM =~ ^[0-9]+$ ]]; then                 break             else                 color_echo red "Format error!"             fi         done         NUM=1         while [ $NUM -le $MINION_NUM ]; do             local MINION_IP             read -p "Please enter minion host $NUM IP: " MINION_IP             check_ip $MINION_IP             if [ $? -eq 0 ]; then                 let NUM++                 MINION_IP_ARRAY+=($MINION_IP)             fi         done     fi } function modify_init_script() {     if [ $1 == "master" ]; then         cd $MASTER_MODULE_INIT_SCRIPT_DIR     elif [ $1 == "minion" ]; then         cd $MINION_MODULE_INIT_SCRIPT_DIR     fi     for MODULE_INIT_SCRIPT in $(ls|grep -v etcd); do         if [ -x $MODULE_INIT_SCRIPT ]; then             sed -r -i '/\/sbin\/initctl/{s/(if)(.*)/\1 false \&\&\2/}' $MODULE_INIT_SCRIPT         fi     done } function check_service_status() {     sleep 1     if [ $(ps -ef |grep -v grep|grep -c "$BIN_DIR/$MODULE_INIT_SCRIPT") -eq 1 ]; then         log_begin_msg "Starting $MODULE_INIT_SCRIPT"         log_end_msg 0 # 0 is the right command execution status     else         log_failure_msg "$(color_echo red "Starting $MODULE_INIT_SCRIPT")"         log_end_msg 1 # 1 is the wrong command execution status     fi } function check_exec_status() {     if [ $? -ne 0 ]; then         color_echo green "Please try to run the script!"         exit 1     fi } BASE_DIR=$PWD ETCD_FILE=$BASE_DIR/etcd-v2.2.2-linux-amd64.tar.gz K8S_FILE=$BASE_DIR/kubernetes.tar.gz BIN_DIR=/opt/bin INIT_SCRIPT_DIR=/etc/init.d OPTS_FILE_DIR=/etc/default MODULE_BIN_DIR=$BASE_DIR/kubernetes/server/bin MASTER_MODULE_INIT_SCRIPT_DIR=$BASE_DIR/kubernetes/cluster/ubuntu/master/init_scripts MINION_MODULE_INIT_SCRIPT_DIR=$BASE_DIR/kubernetes/cluster/ubuntu/minion/init_scripts case $1 in master)     check_install_pkg     pkill etcd ; pkill kube     cluster_ip minion     # Create binary file directory     [ ! -d $BIN_DIR ] && mkdir $BIN_DIR     # Installation storage system etcd     log_action_msg "Unzip the $ETCD_FILE"     tar zxf $ETCD_FILE ; check_exec_status     cp $BASE_DIR/etcd-v2.2.2-linux-amd64/etc* $BIN_DIR ; check_exec_status     echo "     ETCD_OPTS=\"\     --listen-client-urls http://0.0.0.0:4001 \     --advertise-client-urls http://0.0.0.0:4001 \     --data-dir /var/lib/etcd/default.etcd\"     " > $OPTS_FILE_DIR/etcd     # Installation module kube-apiserver kube-scheduler and kube-controller-manager     log_action_msg "Unzip the $K8S_FILE"     tar zxf $BASE_DIR/kubernetes.tar.gz ; check_exec_status     tar zxf $BASE_DIR/kubernetes/server/kubernetes-server-linux-amd64.tar.gz ; check_exec_status     cd $MODULE_BIN_DIR && cp -a kubectl kube-apiserver kube-scheduler kube-controller-manager $BIN_DIR ; check_exec_status     # Configure init scripts     modify_init_script master     cp -a etcd kube-* $INIT_SCRIPT_DIR ; check_exec_status     sed -i '63s/.*/"/' $INIT_SCRIPT_DIR/etcd  #Remove the append log file,Otherwise etcd may cannot be started     # Module Configure option     log_action_msg "Create $OPTS_FILE_DIR/kube-apiserver startup options file ..."     echo "     KUBE_APISERVER_OPTS=\"\     --insecure-bind-address=0.0.0.0 \     --insecure-port=8080 \     --service-cluster-ip-range=10.0.0.0/16 \     --etcd_servers=http://127.0.0.1:4001 \     --logtostderr=true\"     " > $OPTS_FILE_DIR/kube-apiserver     check_exec_status     log_action_msg "Create $OPTS_FILE_DIR/kube-controller-manager startup options file ..."     echo "     KUBE_CONTROLLER_MANAGER_OPTS=\"\     --master=127.0.0.1:8080 \     --logtostderr=true\"     " > $OPTS_FILE_DIR/kube-controller-manager     log_action_msg "Create $OPTS_FILE_DIR/kube-scheduler startup options file ..."     echo "     KUBE_SCHEDULER_OPTS=\"\     --master=127.0.0.1:8080 \     --logtostderr=true\"     " > $OPTS_FILE_DIR/kube-scheduler     # Starting module     for MODULE_INIT_SCRIPT in $(ls $INIT_SCRIPT_DIR|grep -E "(etcd|kube.*)"); do         service $MODULE_INIT_SCRIPT start >/dev/null         check_service_status     done     # set variable     echo "export PATH=$PATH:$BIN_DIR" >> /etc/profile     . /etc/profile     # Copy module kubelet and kube-proxy to minion     SSH_OPTS="-o ConnectTimeout=1 -o ConnectionAttempts=3"     cd $MODULE_BIN_DIR     for MINION_IP in ${MINION_IP_ARRAY}; do         log_action_msg "Copy module to $MINION_IP:$BIN_DIR ..."         ssh $SSH_OPTS root@$MINION_IP "[ ! -d $BIN_DIR ] && mkdir $BIN_DIR" ; check_exec_status         scp $SSH_OPTS kubelet kube-proxy root@$MINION_IP:$BIN_DIR     done     # Copy module init scripts to minion     modify_init_script minion     cd $MINION_MODULE_INIT_SCRIPT_DIR     for MINION_IP in ${MINION_IP_ARRAY}; do         log_action_msg "Copy module init scripts to $MINION_IP:$INIT_SCRIPT_DIR ..."         scp $SSH_OPTS kubelet kube-proxy root@$MINION_IP:$INIT_SCRIPT_DIR ; check_exec_status     done     color_echo green "Kubernetes master installation complete."     ;; minion)     cluster_ip master # Notice input master ip     local_ip     pkill kube     # Install Docker     if ! $(dpkg -l docker-engine >/dev/null 2>&1) && ! $(docker info >/dev/null 2>&1); then         log_action_msg "Start the installation Docker ..."         apt-key adv --keyserver hkp://p80.pool.sks-keyservers.net:80 --recv-keys 58118E89F3A912897C070ADBF76221572C52609D >/dev/null 2>&1         [ $? -ne 0 ] && echo "Docker source secret key register failure!"         DOCKER_U_SOURCE=/tmp/docker_source.tmp         echo "         deb https://apt.dockerproject.org/repo ubuntu-precise main         deb https://apt.dockerproject.org/repo ubuntu-trusty main         deb https://apt.dockerproject.org/repo ubuntu-vivid main         deb https://apt.dockerproject.org/repo ubuntu-wily main         " > $DOCKER_U_SOURCE         OS_CODE_V=$(lsb_release -cs)         DOKER_SOURCE=$(grep $OS_CODE_V $DOCKER_U_SOURCE)         echo "$DOKER_SOURCE" > /etc/apt/sources.list.d/docker.list         rm $DOCKER_U_SOURCE         apt-get update         apt-get install docker-engine  -y         if $(dpkg -l docker-engine >/dev/null) && $(docker info >/dev/null); then             color_echo green "Docker installation successfully."         else             apt-get remove ; apt-get install docker-engine --force-yes -y             if ! $(dpkg -l docker-engine >/dev/null) && ! $(docker info >/dev/null); then                 color_echo red "Docker installation failure!"                 exit 1             fi         fi     fi     # Module Configure option     log_action_msg "Create $OPTS_FILE_DIR/kubelet startup options file ..."     echo "     KUBELET_OPTS=\"\     --address=0.0.0.0 \     --port=10250 \     --hostname_override=$LOCAL_IP \     --api_servers=http://$MASTER_IP:8080 \     --pod-infra-container-image=docker.io/kubernetes/pause:latest \     --logtostderr=true\"     " > $OPTS_FILE_DIR/kubelet     log_action_msg "Create $OPTS_FILE_DIR/kube-proxy startup options file ..."     echo "     KUBE_PROXY_OPTS=\"\     --master=http://$MASTER_IP:8080 \     --proxy-mode=iptables \     --logtostderr=true\"     " > $OPTS_FILE_DIR/kube-proxy     # Starting module     for MODULE_INIT_SCRIPT in $(ls $INIT_SCRIPT_DIR|grep kube.*); do         service $MODULE_INIT_SCRIPT start >/dev/null         check_service_status     done     color_echo green "Kubernetes minion installation complete."     ;; *)     echo "Usage: $0 {master|minion}"     exit 1     ;; esac

4）在minion主机root权限执行脚本安装minion端服务
操作命令：$ sudo bash kubernetes-install.sh minion
脚本内容：同上
5）在minion主机root权限执行脚本创建GRE通道
操作命令：$ sudo bash config_gre_channel.sh
脚本内容：$ cat config_gre_channel.sh

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155

#!/bin/bash # Description: configuration docker host between GRE Channel if [ $(cat /etc/issue |awk '{print $1}') != "Ubuntu" ]; then     echo "Only support ubuntu operating system!"     exit 1 fi if [ $USER != "root" ]; then     echo "Please use root account operation!"     exit 1 fi function color_echo() {     if [ $1 == "green" ]; then         echo -e "\033[32;40m$2\033[0m"     elif [ $1 == "red" ]; then         echo -e "\033[31;40m$2\033[0m"     fi } function check_ip() {     local IP=$1     local VALID_CHECK=$(echo $IP|awk -F. '$1<=255&&$2<=255&&$3<=255&&$4<=255{print "yes"}')     if echo $IP|grep -E "^[0-9]{1,3}\.[0-9]{1,3}\.[0-9]{1,3}\.[0-9]{1,3}$" >/dev/null; then         if [ ${VALID_CHECK:-no} == "yes" ]; then             return 0         else             echo "IP $IP not available!"             return 1         fi     else         echo "IP format error!"         return 1     fi } function docker_host_ip() {         color_echo green "Notice: Only support two Docker host configuration GRE Channel!"         NUM=1         while [ $NUM -le 2 ]; do             local DOCKER_IP             read -p "Please enter Docker host $NUM IP: " DOCKER_HOST_IP             check_ip $DOCKER_HOST_IP             if [ $? -eq 0 ]; then                 let NUM++                 DOCKER_HOST_IP_ARRAY+=($DOCKER_HOST_IP)             fi         done } function local_nic_info() {     local NUM ARRAY_LENGTH     NUM=0     for NIC_NAME in $(ls /sys/class/net|grep -vE "lo|docker0"); do         NIC_IP=$(ifconfig $NIC_NAME |awk -F'[: ]+' '/inet addr/{print $4}')         if [ -n "$NIC_IP" ]; then             NIC_IP_ARRAY[$NUM]="$NIC_NAME:$NIC_IP"             let NUM++         fi     done     ARRAY_LENGTH=${#NIC_IP_ARRAY}     if [ $ARRAY_LENGTH -eq 1 ]; then         LOCAL_NIC=${NIC_IP_ARRAY[0]%:*}         LOCAL_IP=${NIC_IP_ARRAY[0]#*:}         return 0     elif [ $ARRAY_LENGTH -eq 0 ]; then         color_echo red "No available network card!"         exit 1     else         # multi network card select         for NIC in ${NIC_IP_ARRAY}; do             echo $NIC         done         while true; do             read -p "Please enter local use to network card name: " INPUT_NIC_NAME             for NIC in ${NIC_IP_ARRAY}; do                 NIC_NAME=${NIC%:*}                 if [ $NIC_NAME == "$INPUT_NIC_NAME" ]; then                     LOCAL_NIC=${NIC_IP_ARRAY[0]%:*}                     LOCAL_IP=${NIC_IP_ARRAY[0]#*:}                     return 0                 fi             done             echo "Not match! Please input again."         done     fi } function check_pkg() {     if ! $(dpkg -l $PKG_NAME >/dev/null 2>&1); then         echo no     else         echo yes     fi } function install_pkg() {     local PKG_NAME=$1     if [ $(check_pkg $PKG_NAME) == "no" ]; then         apt-get install $PKG_NAME -y         if [ $(check_pkg $PKG_NAME) == "no" ]; then             color_echo green "The $PKG_NAME installation failure! Try to install again."             apt-get autoremove && apt-get update             apt-get install $PKG_NAME --force-yes -y             [ $(check_pkg $PKG_NAME) == "no" ] && color_echo red "The $PKG_NAME installation failure!" && exit 1         fi     fi } function config_gre_channel() {     install_pkg openvswitch-switch     install_pkg bridge-utils     if [ ${DOCKER_HOST_IP_ARRAY[0]} == "$LOCAL_IP" ]; then         REMOTE_HOST_IP=${DOCKER_HOST_IP_ARRAY[1]}  # remote host ip         REMOTE_DOCKER_IP="172.17.2.0/24"   # remote docker host default container ip range         LOCAL_DOCKER_IP="172.17.1.0"    # kbr0 gateway     elif [ ${DOCKER_HOST_IP_ARRAY[1]} == "$LOCAL_IP" ]; then         REMOTE_HOST_IP=${DOCKER_HOST_IP_ARRAY[0]}         REMOTE_DOCKER_IP="172.17.1.0/24"         LOCAL_DOCKER_IP="172.17.2.0"     else         echo "IP not match! Please input again."         exit 1     fi     ovs-vsctl add-br obr0 2>/dev/null     ovs-vsctl add-port obr0 gre0 -- set Interface gre0 type=gre options:remote_ip=$REMOTE_HOST_IP 2>/dev/null     brctl addbr kbr0 2>/dev/null     brctl addif kbr0 obr0 2>/dev/null     ip link set dev kbr0 up     if [ $(grep -cE "kbr0" /etc/network/interfaces) -ne 2 ]; then         echo " auto kbr0 iface kbr0 inet static     address $(echo $LOCAL_DOCKER_IP|sed 's/0$/1/')     netmask 255.255.255.0     gateway $LOCAL_DOCKER_IP     bridge_ports obr0         " >> /etc/network/interfaces     fi     if $(ls /sys/class/net|grep docker0 >/dev/null); then         service docker stop >/dev/null         ip link set dev docker0 down         ip link delete dev docker0         echo "DOCKER_OPTS=\"-b=kbr0\"" > /etc/default/docker         service docker start >/dev/null     fi     ifdown kbr0 >/dev/null 2>&1;ifup kbr0 >/dev/null 2>&1     # reboot invalid     # ip route add $REMOTE_DOCKER_IP via $REMOTE_HOST_IP dev $LOCAL_NIC 2>/dev/null     # permanent valid     if ! $(grep "$REMOTE_DOCKER_IP via $REMOTE_HOST_IP" /etc/rc.local >/dev/null); then         sed -i "$i\ip route add $REMOTE_DOCKER_IP via $REMOTE_HOST_IP dev $LOCAL_NIC" /etc/rc.local     fi } # main docker_host_ip echo "--------------------------------------------" local_nic_info config_gre_channel color_echo green "GRE Channel configuration complete." brctl show echo "-------------------------------------------------" ovs-vsctl show

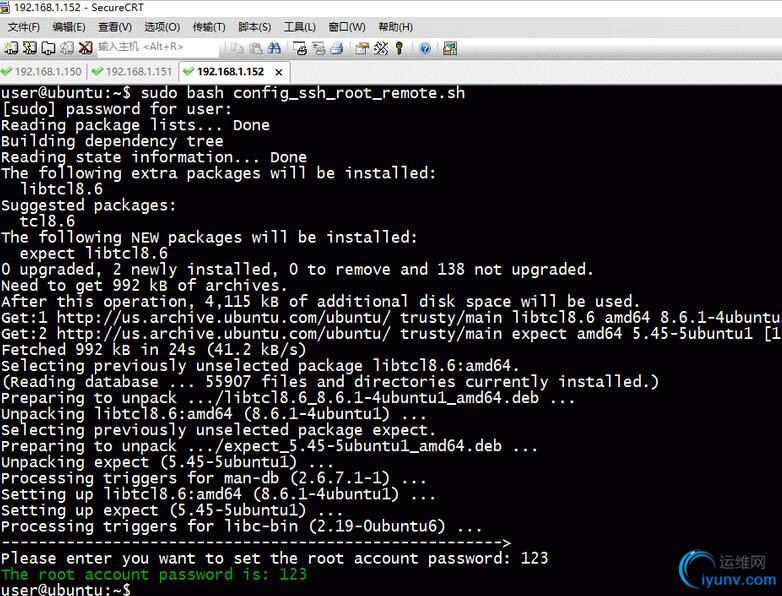

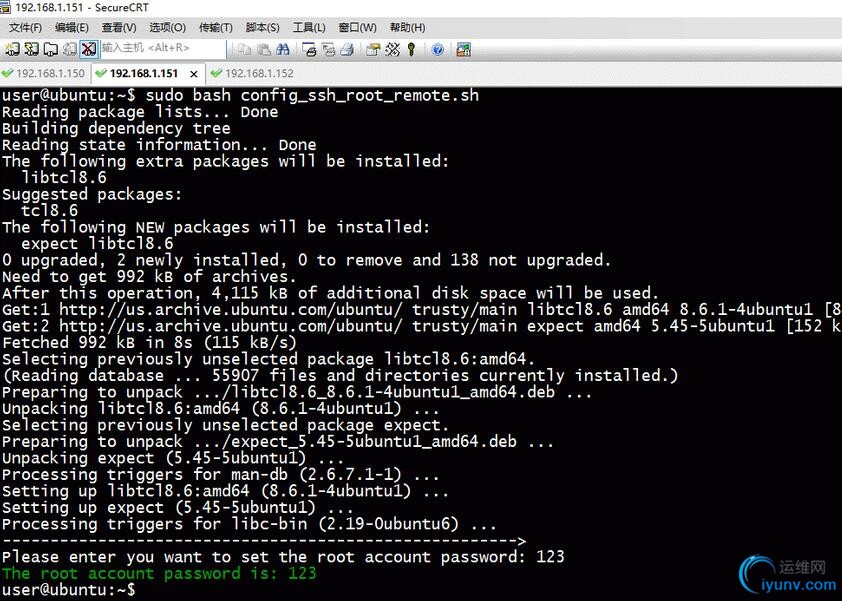

1、配置minion主机root SSH登录
先将config_gre_channel.sh、config_ssh_root_remote.sh和kubernetes-install.sh这三个文件上传各自的minion主机，以备后用。


说明：操作成功，root密码为123

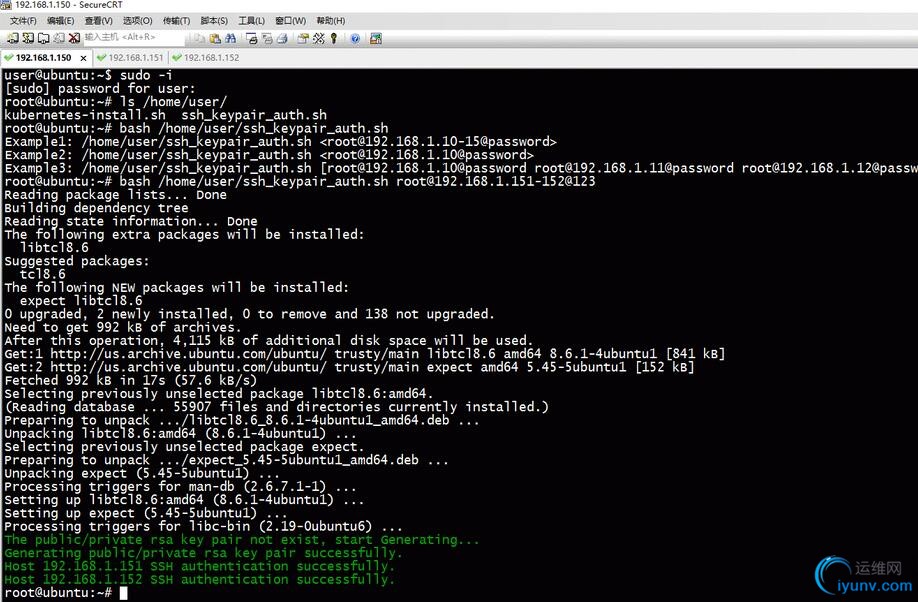

2、配置master主机与minion主机SSH免交互认证
将kubernetes-install.sh、ssh_keypair_auth.sh和etcd-v2.2.2-linux-amd64.tar.gz、kubernetes.tar.gz安装包上传到master主机

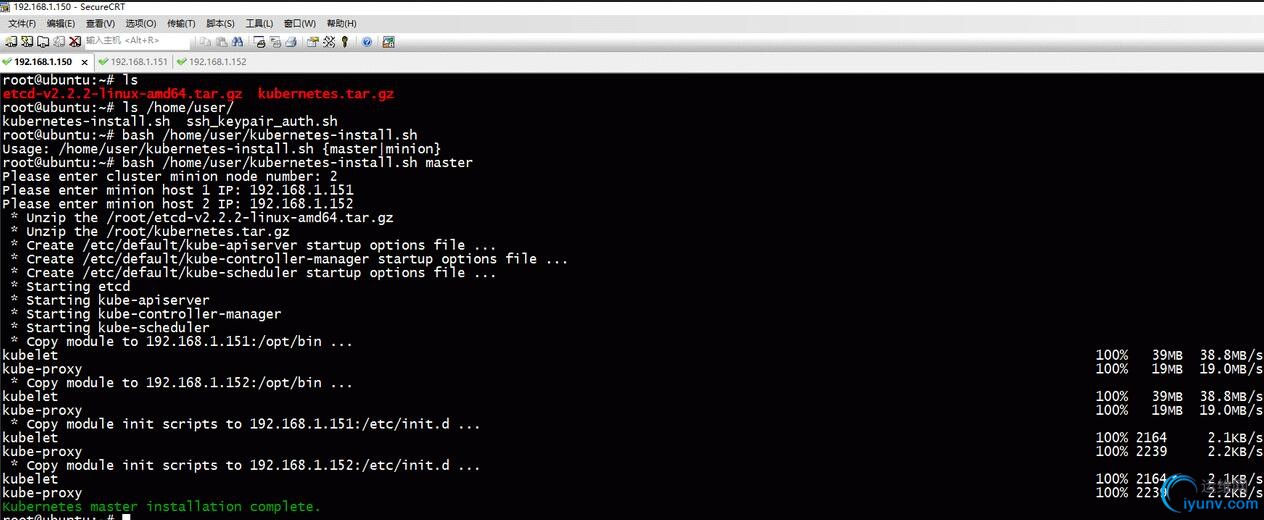

3、安装master端

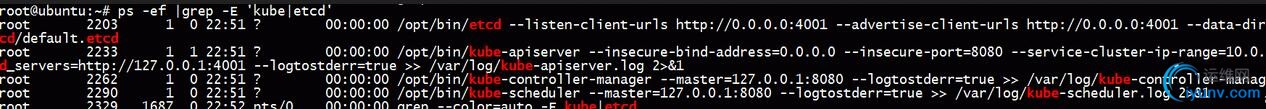

说明：先解压文件，在创建启动选项文件，再启动服务，最后将minion相关包通过scp工具拷贝过去。通过ps工具看到服务进程已经启动。

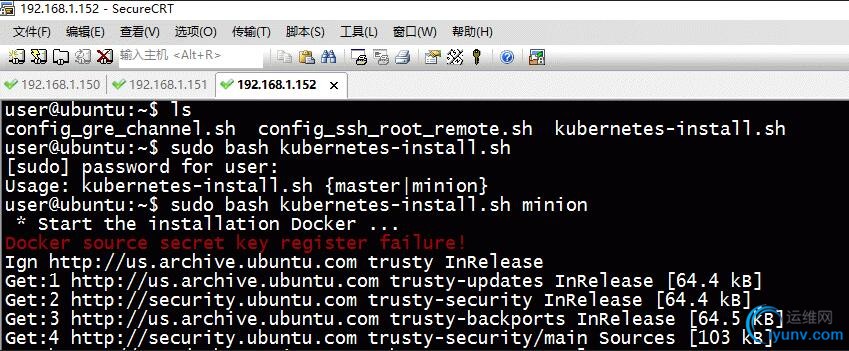

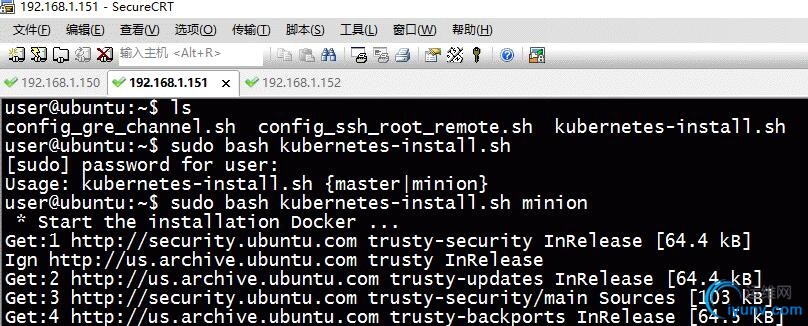

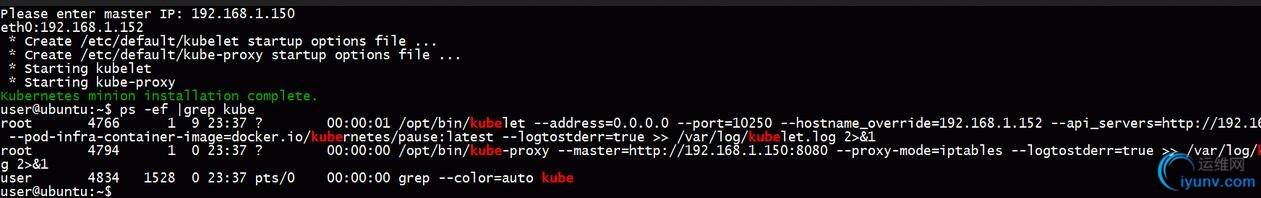

4、安装minion端

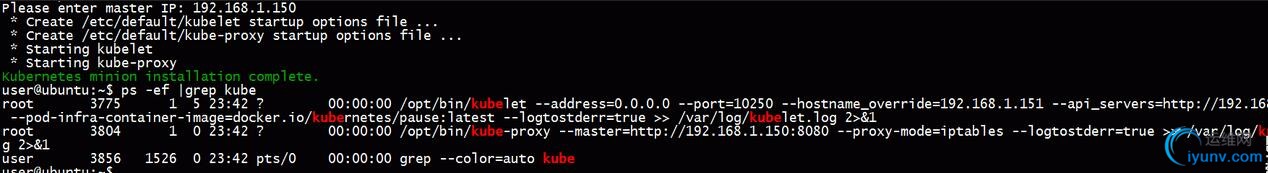

说明：Docker源秘钥注册失败，没关系，一般不会影响安装。当提示安装docker成功后才能继续，否则报错退出。通过ps 工具看到服务进程都已经启动。

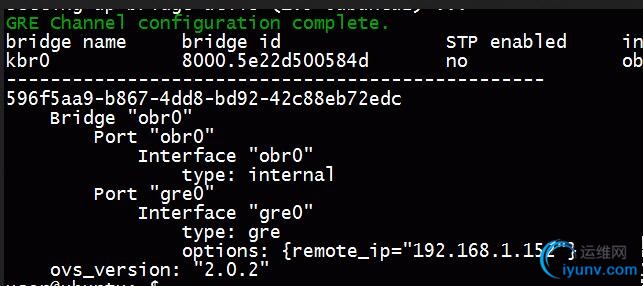

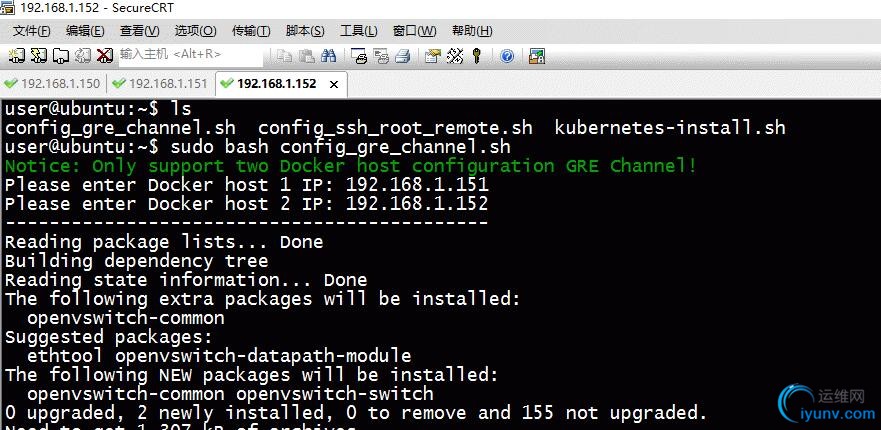

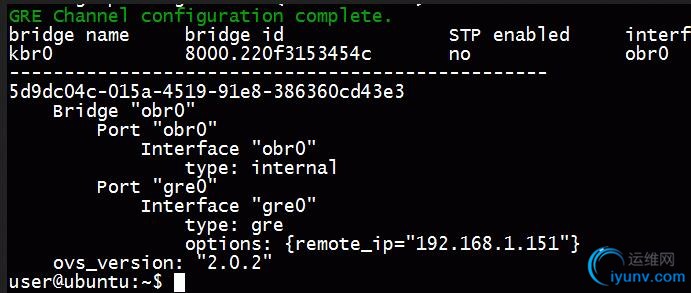

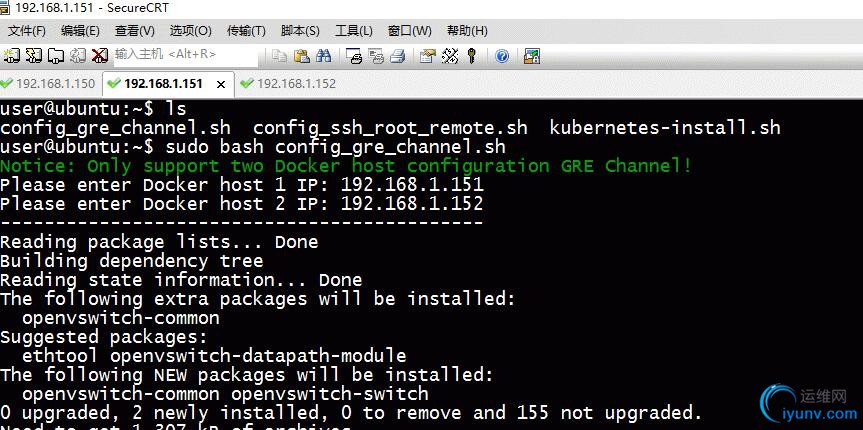

5、配置GRE通道





说明：目前配置GRE通道脚本只支持两台Docker主机

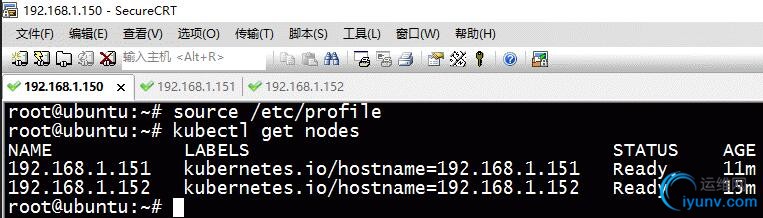

6、查看集群是否配置成功

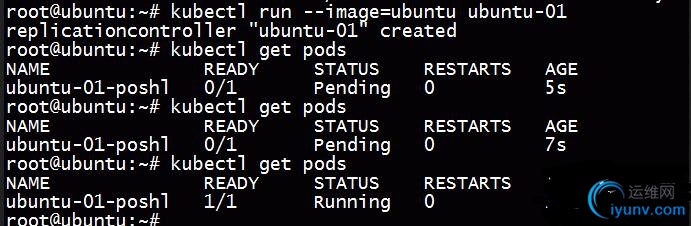

# 通过kubectl命令创建一个pod


说明：在master端可以看到两台minion端状态是Ready，并且创建的Pod已经成功运行。
注意：如果没有kubectl命令，先尝试执行source /etc/profile下看看，如果还没有，直接使用/opt/bin/kubectl
