华为交换机上ACL的应用

2431


client 1  192.168.10.10/24     gateway  192.168.10.254
client 2 192.168.20.20/24      gateway 192.168.20.254
client3  192.168.30.30/24      gateway 192.168.30.254
client     192.168.40.40/24     gateway   192.168.40.254

[Huawei]dis cu
#
sysname Huawei
#
vlan batch 10 20 30 40          //批量创建vlan 10 ，vlan 20 ，vlan 30，vlan 40
#
cluster enable
ntdp enable
ndp enable
#
drop illegal-mac alarm
#
diffserv domain default
#
acl number 3000
rule 5 deny ip source 192.168.10.0 0.0.0.255 destination 192.168.20.0 0.0.0.255
rule 10 permit ip source 192.168.10.0 0.0.0.255 destination 192.168.40.40 0
rule 30 permit ip destination 192.168.40.40 0
rule 35 deny ip source 192.168.10.0 0.0.0.255 destination 192.168.30.0 0.0.0.255
rule 40 deny ip source 192.168.20.0 0.0.0.255 destination 192.168.30.0 0.0.0.255
//定义一个acl高级规则3000
#
traffic classifier k1 operator and       //定义流分类K1 其实这里的命令是traffic classifier                                             k1
if-match acl 3000                       //如果匹配acl 3000
#
traffic behavior k2                      //配置流行为K2
permit                                  //流行为动作为permit
#
traffic policy k3                        //配置流策略K3
classifier k1 behavior k2               //将流分类与流行为相关联
#
drop-profile default
#
aaa
authentication-scheme default
authorization-scheme default
accounting-scheme default
domain default
domain default_admin
local-user admin password simple admin
local-user admin service-type http
#
interface Vlanif1
#
interface Vlanif10                                  \\各vlan网关
ip address 192.168.10.254 255.255.255.0
#
interface Vlanif20
ip address 192.168.20.254 255.255.255.0
#
interface Vlanif30
ip address 192.168.30.254 255.255.255.0
#
interface Vlanif40
ip address 192.168.40.254 255.255.255.0
#
interface MEth0/0/1
#
interface GigabitEthernet0/0/1                     \\
port hybrid pvid vlan 10                          \\端口模式为hybrid，并且端口的PVID为10
port hybrid untagged vlan 10 40                   \\发送vlan 10 40 的数据不带标签
traffic-policy k3 inbound                         \\应用流策略K3在入方向
#
interface GigabitEthernet0/0/2
port hybrid pvid vlan 20
port hybrid untagged vlan 20 40
#
interface GigabitEthernet0/0/3
port hybrid pvid vlan 30
port hybrid untagged vlan 30 40
#
interface GigabitEthernet0/0/4
port hybrid pvid vlan 40
port hybrid untagged vlan 10 40
#
interface GigabitEthernet0/0/5
#
interface GigabitEthernet0/0/6
#
interface GigabitEthernet0/0/7
#
interface GigabitEthernet0/0/8
#
interface GigabitEthernet0/0/9
#
interface GigabitEthernet0/0/10
#
interface GigabitEthernet0/0/11
#
interface GigabitEthernet0/0/12
#
interface GigabitEthernet0/0/13
#
interface GigabitEthernet0/0/14
#
interface GigabitEthernet0/0/15
#
interface GigabitEthernet0/0/16
#
interface GigabitEthernet0/0/17
#
interface GigabitEthernet0/0/18
#
interface GigabitEthernet0/0/19
#
interface Gigabi#
interface Gigabi#
interface GigabitEthernet0/0/22
#
interface GigabitEthernet0/0/23
#
interface GigabitEthernet0/0/24
#
interface NULL0
#
user-interface con 0
user-interface vty 0 4
#
Return

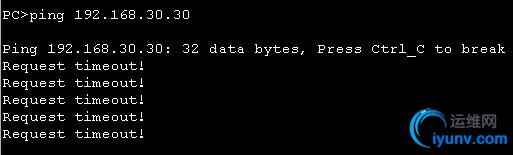

下面是结果在client1上ping cilent3


下面是在client1上ping模拟服务器
