Centos 6.5 安装配置Mysql MHA

42313

MHA是什么？
MHA是由日本Mysql专家用Perl写的一套Mysql故障切换方案，来保障数据库的高可用性，它的功能是能在0-30s之内实现主Mysql故障转移（failover），MHA故障转移可以很好的帮我们解决从库数据的一致性问题，同时最大化挽回故障发生后数据的一致性。
MHA里有两个角色一个是node节点 一个是manager节点，要实现这个MHA，必须最少要三台数据库服务器，一主多备，即一台充当master，一台充当master的备份机，另外一台是从属机，这里实验为了实现更好的效果使用四台机器，需要说明的是一旦主服务器宕机，备份机即开始充当master提供服务，如果主服务器上线也不会再成为master了，因为如果这样数据库的一致性就被改变了。
环境介绍：
操作系统版本:CentOS-6.5-x86_64-minimal.iso
192.168.253.241    master       主库
192.168.253.242    slave01       从库01+备库
192.168.253.243    slave02       从库02
192.168.253.244    manager    集群管理

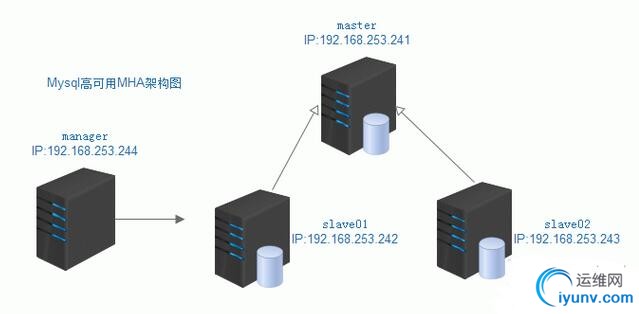

架构图:

一、环境初始化
1、修改每台主机名

1 2 3 4

192.168.253.241    master 192.168.253.242    slave01 192.168.253.243    slave02 192.168.253.244    manager

2、主机名解析
#每台服务器执行修改主机名解析

1 2 3 4 5

echo ''' 192.168.253.241    master 192.168.253.242    slave01 192.168.253.243    slave02 192.168.253.244    manager''' >>/etc/hosts

3、ssh无密码登录

#主机:master执行命令

1 2 3 4

[iyunv@master ~]# ssh-keygen -t rsa [iyunv@master ~]# ssh-copy-id -i ~/.ssh/id_rsa.pub root@manager [iyunv@master ~]# ssh-copy-id -i ~/.ssh/id_rsa.pub root@slave01 [iyunv@master ~]# ssh-copy-id -i ~/.ssh/id_rsa.pub root@slave02

#主机:slave01执行命令

1 2 3 4

[iyunv@slave01 ~]# ssh-keygen -t rsa [iyunv@slave01 ~]# ssh-copy-id -i ~/.ssh/id_rsa.pub root@manager [iyunv@slave01 ~]# ssh-copy-id -i ~/.ssh/id_rsa.pub root@master [iyunv@slave01 ~]# ssh-copy-id -i ~/.ssh/id_rsa.pub root@slave02

#主机: slave02执行命令

1 2 3 4

[iyunv@slave02 ~]# ssh-keygen -t rsa [iyunv@slave02 ~]# ssh-copy-id -i ~/.ssh/id_rsa.pub root@manager [iyunv@slave02 ~]# ssh-copy-id -i ~/.ssh/id_rsa.pub root@master [iyunv@slave02 ~]# ssh-copy-id -i ~/.ssh/id_rsa.pub root@slave01

#主机:manager执行命令

1 2 3 4

[iyunv@manager ~]# ssh-keygen -t rsa [iyunv@manager ~]# ssh-copy-id -i ~/.ssh/id_rsa.pub root@master [iyunv@manager ~]# ssh-copy-id -i ~/.ssh/id_rsa.pub root@slave01 [iyunv@manager ~]# ssh-copy-id -i ~/.ssh/id_rsa.pub root@slave02

二、规划mysql
1、安装mysql
#在master、slave01和slave02上安装mysql服务，具体安装方法不介绍了。网上很多资料，去百度吧。

#master配置文件/usr/local/lnmp/mysql/etc/my.cnf 核心配置如下:

1 2 3 4 5 6 7 8

basedir = /usr/local/lnmp/mysql datadir = /data/mysql port = 3306 server_id = 241 socket = /tmp/mysql.sock log-bin=mysql-bin log-slave-updates expire_logs_days = 10

#slave01配置文件/usr/local/lnmp/mysql/etc/my.cnf 核心配置如下:

1 2 3 4 5 6 7 8

basedir = /usr/local/lnmp/mysql datadir = /data/mysql port = 3306 server_id = 242 socket = /tmp/mysql.sock log-bin=mysql-bin log-slave-updates expire_logs_days = 10

#slave02配置文件/usr/local/lnmp/mysql/etc/my.cnf 核心配置如下:

1 2 3 4 5 6 7 8 9

basedir = /usr/local/lnmp/mysql datadir = /data/mysql port = 3306 server_id = 243 socket = /tmp/mysql.sock log-bin=mysql-bin log-slave-updates expire_logs_days = 10 read_only = 1

2、配置master、slave01和slave02之间的主从复制
在MySQL5.6 的Replication配置中，master端同样要开启两个重要的选项，server-id和log-bin,并且选项server-id在全局架构中并且唯一，不能被其它主机使用，这里采用主机ip地址的最后一位充当server-id的值；slave端要开启relay-log;

#主机: master执行命令

1 2 3

[iyunv@master ~]# egrep "log-bin|server_id" /usr/local/lnmp/mysql/etc/my.cnf server_id = 241 log-bin=mysql-bin

#主机: slave01执行命令

1 2 3

[iyunv@slave01 ~]# egrep "log-bin|server_id" /usr/local/lnmp/mysql/etc/my.cnf server_id = 242 log-bin=mysql-bin

#主机: slave02执行命令

1 2 3

[iyunv@slave02 ~]# egrep "log-bin|server_id" /usr/local/lnmp/mysql/etc/my.cnf server_id = 243 log-bin=mysql-bin

3、在master、slave01上创建主从同步的账号。slave01是备用master，这个也需要建立授权用户。

1 2	[iyunv@master ~]# mysql -uroot -p123456 -e "grant replication slave on *.* to 'backup'@'192.168.253.%' identified by 'backup';flush privileges;" [iyunv@slave01 ~]# mysql -uroot -p123456 -e "grant replication slave on *.* to 'backup'@'192.168.253.%' identified by 'backup';flush privileges;"

4、在master上执行命令，查看master状态信息

1 2 3 4 5 6 7

[iyunv@master ~]# mysql -uroot -p123456 -e 'show master status;' Warning: Using a password on the command line interface can be insecure. +------------------+----------+--------------+------------------+-------------------+ | File             | Position | Binlog_Do_DB | Binlog_Ignore_DB | Executed_Gtid_Set | +------------------+----------+--------------+------------------+-------------------+ | mysql-bin.000004 |      411 |              |                  |                   | +------------------+----------+--------------+------------------+-------------------+

5、在slave01和slave02上执行主从同步
#slave01配置主从

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65

[iyunv@slave01 ~]# mysql -uroot -p123456 mysql>    change master to     ->    master_host='192.168.253.241',master_user='backup',master_password='backup',master_port=3306,master_log_file='mysql-bin.000004',master_log_pos=411; Query OK, 0 rows affected, 2 warnings (0.56 sec) mysql> start slave; Query OK, 0 rows affected (0.05 sec) mysql> show slave status\G; *************************** 1. row ***************************                Slave_IO_State: Waiting for master to send event                   Master_Host: 192.168.253.241                   Master_User: backup                   Master_Port: 3306                 Connect_Retry: 60               Master_Log_File: mysql-bin.000004           Read_Master_Log_Pos: 411                Relay_Log_File: slave01-relay-bin.000002                 Relay_Log_Pos: 283         Relay_Master_Log_File: mysql-bin.000004              Slave_IO_Running: Yes             Slave_SQL_Running: Yes               Replicate_Do_DB:           Replicate_Ignore_DB:            Replicate_Do_Table:        Replicate_Ignore_Table:       Replicate_Wild_Do_Table:   Replicate_Wild_Ignore_Table:                    Last_Errno: 0                    Last_Error:                  Skip_Counter: 0           Exec_Master_Log_Pos: 411               Relay_Log_Space: 458               Until_Condition: None                Until_Log_File:                 Until_Log_Pos: 0            Master_SSL_Allowed: No            Master_SSL_CA_File:            Master_SSL_CA_Path:               Master_SSL_Cert:             Master_SSL_Cipher:                Master_SSL_Key:         Seconds_Behind_Master: 0 Master_SSL_Verify_Server_Cert: No                 Last_IO_Errno: 0                 Last_IO_Error:                Last_SQL_Errno: 0                Last_SQL_Error:   Replicate_Ignore_Server_Ids:              Master_Server_Id: 241                   Master_UUID: cb4af7bc-d600-11e5-8101-26c537b62ad9              Master_Info_File: /data/mysql/master.info                     SQL_Delay: 0           SQL_Remaining_Delay: NULL       Slave_SQL_Running_State: Slave has read all relay log; waiting for the slave I/O thread to update it            Master_Retry_Count: 86400                   Master_Bind:       Last_IO_Error_Timestamp:      Last_SQL_Error_Timestamp:                Master_SSL_Crl:            Master_SSL_Crlpath:            Retrieved_Gtid_Set:             Executed_Gtid_Set:                 Auto_Position: 0 1 row in set (0.00 sec)

#slave02配置主从

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

[iyunv@slave02 ~]# mysql -uroot -p123456 mysql>    change master to     ->    master_host='192.168.253.241',master_user='backup',master_password='backup',master_port=3306,master_log_file='mysql-bin.000004',master_log_pos=411; Query OK, 0 rows affected, 2 warnings (0.56 sec) mysql> start slave; Query OK, 0 rows affected (0.05 sec) mysql> show slave status\G; *************************** 1. row ***************************                Slave_IO_State: Waiting for master to send event                   Master_Host: 192.168.253.241                   Master_User: backup                   Master_Port: 3306                 Connect_Retry: 60               Master_Log_File: mysql-bin.000004           Read_Master_Log_Pos: 411                Relay_Log_File: slave01-relay-bin.000002                 Relay_Log_Pos: 283         Relay_Master_Log_File: mysql-bin.000004              Slave_IO_Running: Yes             Slave_SQL_Running: Yes               Replicate_Do_DB:           Replicate_Ignore_DB:            Replicate_Do_Table:        Replicate_Ignore_Table:       Replicate_Wild_Do_Table:   Replicate_Wild_Ignore_Table:                    Last_Errno: 0                    Last_Error:                  Skip_Counter: 0           Exec_Master_Log_Pos: 411               Relay_Log_Space: 458               Until_Condition: None                Until_Log_File:                 Until_Log_Pos: 0            Master_SSL_Allowed: No            Master_SSL_CA_File:            Master_SSL_CA_Path:               Master_SSL_Cert:             Master_SSL_Cipher:                Master_SSL_Key:         Seconds_Behind_Master: 0 Master_SSL_Verify_Server_Cert: No                 Last_IO_Errno: 0                 Last_IO_Error:                Last_SQL_Errno: 0                Last_SQL_Error:   Replicate_Ignore_Server_Ids:              Master_Server_Id: 241                   Master_UUID: cb4af7bc-d600-11e5-8101-26c537b62ad9              Master_Info_File: /data/mysql/master.info                     SQL_Delay: 0           SQL_Remaining_Delay: NULL       Slave_SQL_Running_State: Slave has read all relay log; waiting for the slave I/O thread to update it            Master_Retry_Count: 86400                   Master_Bind:       Last_IO_Error_Timestamp:      Last_SQL_Error_Timestamp:                Master_SSL_Crl:            Master_SSL_Crlpath:            Retrieved_Gtid_Set:             Executed_Gtid_Set:                 Auto_Position: 0 1 row in set (0.00 sec)

#实验到这里表示主从已经配置完成！
三、规划mha
1、创建mha管理用的复制账号，每台数据库(master、slave01、slave02)上都要创建账号，在这里以其中master为例.。

1 2 3 4 5 6 7 8 9 10

[iyunv@master ~]# mysql -uroot -p123456 -e "grant all privileges on *.* to 'mha_rep'@'192.168.253.%' identified by '123456';flush privileges;" mysql> select host,user from user; +---------------+---------+ | host          | user    | +---------------+---------+ | 192.168.253.% | backup  | | 192.168.253.% | mha_rep | | localhost     | root    | +---------------+---------+ 3 rows in set (0.00 sec)

2、在3台主机上(master、slave01和slave02)上分别安装mha4mysql-node包，这里以master为例，其它主机同理。

1 2	[iyunv@master ~]# yum install perl-DBD-MySQL -y [iyunv@master ~]# rpm -ivh https://downloads.mariadb.com/fi ... 54-0.el6.noarch.rpm

3、在manager上安装mha4mysql-manager和mha4mysql-node包

1 2 3 4 5 6 7 8 9 10

[iyunv@manager ~]# yum install perl cpan perl-DBD-MySQL perl-DBD-MySQL perl-Config-Tiny perl-Log-Dispatch perl-Parallel-ForkManager perl-Net-Telnet -y [iyunv@manager ~]# rpm -ivh https://downloads.mariadb.com/fi ... 54-0.el6.noarch.rpm [iyunv@manager ~]# wget https://downloads.mariadb.com/fi ... manager-0.56.tar.gz [iyunv@manager ~]# tar zvxf mha4mysql-manager-0.56.tar.gz [iyunv@manager ~]# cd mha4mysql-manager-0.56 [iyunv@manager ~]# perl Makefile.PL [iyunv@manager mha4mysql-manager-0.56]# make && make install [iyunv@manager mha4mysql-manager-0.56]# mkdir -p /usr/local/mha/scripts [iyunv@manager mha4mysql-manager-0.56]# cp samples/conf/app1.cnf /usr/local/mha/mha.cnf [iyunv@manager mha4mysql-manager-0.56]# cp samples/scripts/* //usr/local/mha/scripts/

4、修改manager端mha的配置文件，如下

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25

[iyunv@manager ~]# cat /usr/local/mha/mha.cnf [server default] user=mha_rep                                    #MHA管理mysql的用户名 password=123456                                 #MHA管理mysql的密码 manager_workdir=/usr/local/mha                  #MHA的工作目录 manager_log=/usr/local/mha/manager.log          #MHA的日志路径 ssh_user=root                                   #免秘钥登陆的用户名 repl_user=backup                                #主从复制账号，用来在主从之间同步数据 repl_password=backup ping_interval=1                                 #ping间隔时间，用来检查master是否正常 [server1] hostname=192.168.253.241 master_binlog_dir=/data/mysql/ candidate_master=1                              #master宕机后，优先启用这台作为master [server2] hostname=192.168.253.242 master_binlog_dir=/data/mysql/ candidate_master=1 [server3] hostname=192.168.253.243 master_binlog_dir=/data/mysql/ no_master=1                                     #设置na_master=1，使服务器不能成为master

5、检查ssh是否畅通

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21

[iyunv@manager mha4mysql-manager-0.56]# masterha_check_ssh --conf=/usr/local/mha/mha.cnf Mon Feb 22 10:28:05 2016 - [warning] Global configuration file /etc/masterha_default.cnf not found. Skipping. Mon Feb 22 10:28:05 2016 - [info] Reading application default configurations from /usr/local/mha/mha.cnf.. Mon Feb 22 10:28:05 2016 - [info] Reading server configurations from /usr/local/mha/mha.cnf.. Mon Feb 22 10:28:05 2016 - [info] Starting SSH connection tests.. Mon Feb 22 10:28:06 2016 - [debug] Mon Feb 22 10:28:05 2016 - [debug]  Connecting via SSH from root@192.168.253.241(192.168.253.241:22) to root@192.168.253.242(192.168.253.242:22).. Mon Feb 22 10:28:06 2016 - [debug]   ok. Mon Feb 22 10:28:06 2016 - [debug]  Connecting via SSH from root@192.168.253.241(192.168.253.241:22) to root@192.168.253.243(192.168.253.243:22).. Mon Feb 22 10:28:06 2016 - [debug]   ok. Mon Feb 22 10:28:07 2016 - [debug] Mon Feb 22 10:28:06 2016 - [debug]  Connecting via SSH from root@192.168.253.242(192.168.253.242:22) to root@192.168.253.241(192.168.253.241:22).. Mon Feb 22 10:28:06 2016 - [debug]   ok. Mon Feb 22 10:28:06 2016 - [debug]  Connecting via SSH from root@192.168.253.242(192.168.253.242:22) to root@192.168.253.243(192.168.253.243:22).. Mon Feb 22 10:28:07 2016 - [debug]   ok. Mon Feb 22 10:28:07 2016 - [debug] Mon Feb 22 10:28:06 2016 - [debug]  Connecting via SSH from root@192.168.253.243(192.168.253.243:22) to root@192.168.253.241(192.168.253.241:22).. Mon Feb 22 10:28:07 2016 - [debug]   ok. Mon Feb 22 10:28:07 2016 - [debug]  Connecting via SSH from root@192.168.253.243(192.168.253.243:22) to root@192.168.253.242(192.168.253.242:22).. Mon Feb 22 10:28:07 2016 - [debug]   ok. Mon Feb 22 10:28:07 2016 - [info] All SSH connection tests passed successfully.

#如果得到以上结果，表明主机之间ssh互信是畅通的
6、masterha_check_repl工具检查mysql主从复制是否成功

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76

[iyunv@manager mha4mysql-manager-0.56]#  masterha_check_repl --conf=/usr/local/mha/mha.cnf Mon Feb 22 10:30:49 2016 - [warning] Global configuration file /etc/masterha_default.cnf not found. Skipping. Mon Feb 22 10:30:49 2016 - [info] Reading application default configurations from /usr/local/mha/mha.cnf.. Mon Feb 22 10:30:49 2016 - [info] Reading server configurations from /usr/local/mha/mha.cnf.. Mon Feb 22 10:30:49 2016 - [info] MHA::MasterMonitor version 0.56. Mon Feb 22 10:30:50 2016 - [info] Dead Servers: Mon Feb 22 10:30:50 2016 - [info] Alive Servers: Mon Feb 22 10:30:50 2016 - [info]   192.168.253.241(192.168.253.241:3306) Mon Feb 22 10:30:50 2016 - [info]   192.168.253.242(192.168.253.242:3306) Mon Feb 22 10:30:50 2016 - [info]   192.168.253.243(192.168.253.243:3306) Mon Feb 22 10:30:50 2016 - [info] Alive Slaves: Mon Feb 22 10:30:50 2016 - [info]   192.168.253.242(192.168.253.242:3306)  Version=5.6.15-log (oldest major version between slaves) log-bin:enabled Mon Feb 22 10:30:50 2016 - [info]     Replicating from 192.168.253.241(192.168.253.241:3306) Mon Feb 22 10:30:50 2016 - [info]     Primary candidate for the new Master (candidate_master is set) Mon Feb 22 10:30:50 2016 - [info]   192.168.253.243(192.168.253.243:3306)  Version=5.6.15-log (oldest major version between slaves) log-bin:enabled Mon Feb 22 10:30:50 2016 - [info]     Replicating from 192.168.253.241(192.168.253.241:3306) Mon Feb 22 10:30:50 2016 - [info]     Not candidate for the new Master (no_master is set) Mon Feb 22 10:30:50 2016 - [info] Current Alive Master: 192.168.253.241(192.168.253.241:3306) Mon Feb 22 10:30:50 2016 - [info] Checking slave configurations.. Mon Feb 22 10:30:50 2016 - [info]  read_only=1 is not set on slave 192.168.253.242(192.168.253.242:3306). Mon Feb 22 10:30:50 2016 - [warning]  relay_log_purge=0 is not set on slave 192.168.253.242(192.168.253.242:3306). Mon Feb 22 10:30:50 2016 - [warning]  relay_log_purge=0 is not set on slave 192.168.253.243(192.168.253.243:3306). Mon Feb 22 10:30:50 2016 - [info] Checking replication filtering settings.. Mon Feb 22 10:30:50 2016 - [info]  binlog_do_db= , binlog_ignore_db= Mon Feb 22 10:30:50 2016 - [info]  Replication filtering check ok. Mon Feb 22 10:30:50 2016 - [info] Starting SSH connection tests.. Mon Feb 22 10:30:51 2016 - [info] All SSH connection tests passed successfully. Mon Feb 22 10:30:51 2016 - [info] Checking MHA Node version.. Mon Feb 22 10:30:53 2016 - [info]  Version check ok. Mon Feb 22 10:30:53 2016 - [info] Checking SSH publickey authentication settings on the current master.. Mon Feb 22 10:30:53 2016 - [info] HealthCheck: SSH to 192.168.253.241 is reachable. Mon Feb 22 10:30:53 2016 - [info] Master MHA Node version is 0.54. Mon Feb 22 10:30:53 2016 - [info] Checking recovery script configurations on the current master.. Mon Feb 22 10:30:53 2016 - [info]   Executing command: save_binary_logs --command=test --start_pos=4 --binlog_dir=/data/mysql/ --output_file=/var/tmp/save_binary_logs_test --manager_version=0.56 --start_file=mysql-bin.000004 Mon Feb 22 10:30:53 2016 - [info]   Connecting to root@192.168.253.241(192.168.253.241)..   Creating /var/tmp if not exists..    ok.   Checking output directory is accessible or not..    ok.   Binlog found at /data/mysql/, up to mysql-bin.000004 Mon Feb 22 10:30:54 2016 - [info] Master setting check done. Mon Feb 22 10:30:54 2016 - [info] Checking SSH publickey authentication and checking recovery script configurations on all alive slave servers.. Mon Feb 22 10:30:54 2016 - [info]   Executing command : apply_diff_relay_logs --command=test --slave_user='mha_rep' --slave_host=192.168.253.242 --slave_ip=192.168.253.242 --slave_port=3306 --workdir=/var/tmp --target_version=5.6.15-log --manager_version=0.56 --relay_log_info=/data/mysql/relay-log.info  --relay_dir=/data/mysql/  --slave_pass=xxx Mon Feb 22 10:30:54 2016 - [info]   Connecting to root@192.168.253.242(192.168.253.242:22)..   Checking slave recovery environment settings..     Opening /data/mysql/relay-log.info ... ok.     Relay log found at /data/mysql, up to slave01-relay-bin.000002     Temporary relay log file is /data/mysql/slave01-relay-bin.000002     Testing mysql connection and privileges..Warning: Using a password on the command line interface can be insecure. done.     Testing mysqlbinlog output.. done.     Cleaning up test file(s).. done. Mon Feb 22 10:30:55 2016 - [info]   Executing command : apply_diff_relay_logs --command=test --slave_user='mha_rep' --slave_host=192.168.253.243 --slave_ip=192.168.253.243 --slave_port=3306 --workdir=/var/tmp --target_version=5.6.15-log --manager_version=0.56 --relay_log_info=/data/mysql/relay-log.info  --relay_dir=/data/mysql/  --slave_pass=xxx Mon Feb 22 10:30:55 2016 - [info]   Connecting to root@192.168.253.243(192.168.253.243:22)..   Checking slave recovery environment settings..     Opening /data/mysql/relay-log.info ... ok.     Relay log found at /data/mysql, up to slave02-relay-bin.000002     Temporary relay log file is /data/mysql/slave02-relay-bin.000002     Testing mysql connection and privileges..Warning: Using a password on the command line interface can be insecure. done.     Testing mysqlbinlog output.. done.     Cleaning up test file(s).. done. Mon Feb 22 10:30:57 2016 - [info] Slaves settings check done. Mon Feb 22 10:30:57 2016 - [info] 192.168.253.241 (current master) +--192.168.253.242 +--192.168.253.243 Mon Feb 22 10:30:57 2016 - [info] Checking replication health on 192.168.253.242.. Mon Feb 22 10:30:57 2016 - [info]  ok. Mon Feb 22 10:30:57 2016 - [info] Checking replication health on 192.168.253.243.. Mon Feb 22 10:30:57 2016 - [info]  ok. Mon Feb 22 10:30:57 2016 - [warning] master_ip_failover_script is not defined. Mon Feb 22 10:30:57 2016 - [warning] shutdown_script is not defined. Mon Feb 22 10:30:57 2016 - [info] Got exit code 0 (Not master dead). MySQL Replication Health is OK.

四、mha实验模拟
1、在每次做mha实验的时候，我们都最好先执行如下命令做检测

1 2	[iyunv@manager ~]# masterha_check_ssh --conf=/usr/local/mha/mha.cnf [iyunv@manager ~]# masterha_check_repl --conf=/usr/local/mha/mha.cnf

#确定两条命令的返回结果都是无异常的，然后启动mha服务
2、在manager端启动mha服务并时刻监控日志文件的输出变化

1 2 3

[iyunv@manager ~]# nohup masterha_manager --conf=/usr/local/mha/mha.cnf > /tmp/mha_manager.log 2>&1 & [iyunv@manager ~]# ps -ef |grep masterha |grep -v 'grep' root      2840  2470  2 10:53 pts/0    00:00:00 perl /usr/local/bin/masterha_manager --conf=/usr/local/mha/mha.cnf

3、测试master宕机后，时候会自动切换
#测试前查看slave01,slave02的主从同步情况
#slave01

1 2 3 4

[iyunv@slave01 ~]# mysql -uroot -p123456 -e 'show slave status\G' |egrep 'Slave_IO_Running:|Slave_SQL_Running:' Warning: Using a password on the command line interface can be insecure.              Slave_IO_Running: Yes             Slave_SQL_Running: Yes

#slave02

1 2 3 4

[iyunv@slave02 ~]# mysql -uroot -p123456 -e 'show slave status\G' |egrep 'Slave_IO_Running:|Slave_SQL_Running:' Warning: Using a password on the command line interface can be insecure.              Slave_IO_Running: Yes             Slave_SQL_Running: Yes

#停止master的mysql服务

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

[iyunv@master ~]# service mysqld stop Shutting down MySQL (Percona Server)..... SUCCESS! ----- Failover Report ----- mha: MySQL Master failover 192.168.253.241 to 192.168.253.242 succeeded Master 192.168.253.241 is down! Check MHA Manager logs at manager:/usr/local/mha/manager.log for details. Started automated(non-interactive) failover. The latest slave 192.168.253.242(192.168.253.242:3306) has all relay logs for recovery. Selected 192.168.253.242 as a new master. 192.168.253.242: OK: Applying all logs succeeded. 192.168.253.243: This host has the latest relay log events. Generating relay diff files from the latest slave succeeded. 192.168.253.243: OK: Applying all logs succeeded. Slave started, replicating from 192.168.253.242. 192.168.253.242: Resetting slave info succeeded. Master failover to 192.168.253.242(192.168.253.242:3306) completed successfully.

#我们查看slave02的主从同步信息

1 2 3 4 5

[iyunv@slave02 ~]# mysql -uroot -p123456 -e 'show slave status\G' |egrep 'Master_Host|Slave_IO_Running:|Slave_SQL_Running:' Warning: Using a password on the command line interface can be insecure.                   Master_Host: 192.168.253.242  #表明已经转移新的ip              Slave_IO_Running: Yes     #表示主从ok             Slave_SQL_Running: Yes

4、恢复master服务
#删除故障转移文件

1	[iyunv@manager mha]# rm -rf /usr/local/mha/mha.failover.complete

#重启mysql服务

1 2	[iyunv@master ~]# service mysqld start Starting MySQL (Percona Server)... SUCCESS!

#在manager的日子文件中找到主从同步的sql语句

1 2

[iyunv@manager mha]# grep MASTER_HOST /usr/local/mha/manager.log Mon Feb 22 11:00:38 2016 - [info]  All other slaves should start replication from here. Statement should be: CHANGE MASTER TO MASTER_HOST='192.168.253.242', MASTER_PORT=3306, MASTER_LOG_FILE='mysql-bin.000004', MASTER_LOG_POS=700, MASTER_USER='backup', MASTER_PASSWORD='xxx';

#在master上启动主从同步，密码为backup

1 2 3 4 5 6

mysql> change master to     ->        master_host='192.168.253.242',master_user='backup',master_password='backup',master_port=3306,master_log_file='mysql-bin.000004',master_log_pos=700; Query OK, 0 rows affected, 2 warnings (0.75 sec) mysql> start slave; Query OK, 0 rows affected (0.05 sec)

#在master和slave02上执行，检查主从同步是否都正常，这里以master为例，slave02同理

1 2 3 4 5

[iyunv@master ~]# mysql -uroot -p123456 -e 'show slave status\G' |egrep 'Master_Host|Slave_IO_Running:|Slave_SQL_Running:' Warning: Using a password on the command line interface can be insecure.                   Master_Host: 192.168.253.242              Slave_IO_Running: Yes             Slave_SQL_Running: Yes

5、再次启动MHA的manager服务，并停止slave01

1	[iyunv@manager ~]# nohup masterha_manager --conf=/usr/local/mha/mha.cnf > /tmp/mha_manager.log 2>&1 &

#关闭slave01的mysql服务

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

[iyunv@slave01 ~]# service mysqld stop Shutting down MySQL... SUCCESS [iyunv@manager mha]# tail -f /usr/local/mha/manager.log ----- Failover Report ----- mha: MySQL Master failover 192.168.253.242 to 192.168.253.241 succeeded Master 192.168.253.242 is down! Check MHA Manager logs at manager:/usr/local/mha/manager.log for details. Started automated(non-interactive) failover. The latest slave 192.168.253.241(192.168.253.241:3306) has all relay logs for recovery. Selected 192.168.253.241 as a new master. 192.168.253.241: OK: Applying all logs succeeded. 192.168.253.243: This host has the latest relay log events. Generating relay diff files from the latest slave succeeded. 192.168.253.243: OK: Applying all logs succeeded. Slave started, replicating from 192.168.253.241. 192.168.253.241: Resetting slave info succeeded. Master failover to 192.168.253.241(192.168.253.241:3306) completed successfully.

#在slave02上查看主从同步情况

1 2 3 4 5

[iyunv@slave02 ~]# mysql -uroot -p123456 -e 'show slave status\G' |egrep 'Master_Host|Slave_IO_Running:|Slave_SQL_Running:' Warning: Using a password on the command line interface can be insecure.                   Master_Host: 192.168.253.241              Slave_IO_Running: Yes             Slave_SQL_Running: Yes

6、恢复slave01服务
#删除故障转移文件

1	[iyunv@manager mha]# rm -rf /usr/local/mha/mha.failover.complete

#重启mysql服务

1 2	[iyunv@slave01 ~]# service mysqld start Starting MySQL (Percona Server)... SUCCESS!

#在manager的日子文件中找到主从同步的sql语句

1 2

[iyunv@manager mha]# grep MASTER_HOST /usr/local/mha/manager.log Mon Feb 22 11:27:21 2016 - [info]  All other slaves should start replication from here. Statement should be: CHANGE MASTER TO MASTER_HOST='192.168.253.241', MASTER_PORT=3306, MASTER_LOG_FILE='mysql-bin.000005', MASTER_LOG_POS=120, MASTER_USER='backup', MASTER_PASSWORD='xxx';

#在slave01上启动主从同步，密码为backup

1 2 3 4 5 6

mysql>  change master to     ->        master_host='192.168.253.241',master_user='backup',master_password='backup',master_port=3306,master_log_file='mysql-bin.000005',master_log_pos=120; Query OK, 0 rows affected, 2 warnings (0.61 sec) mysql> start slave; Query OK, 0 rows affected (0.05 sec)

#在slave01和slave02上执行，检查主从同步是否都正常，这里以slave01为例，slave02同理。

1 2 3 4 5

[iyunv@slave01 ~]# mysql -uroot -p123456 -e 'show slave status\G' |egrep 'Master_Host|Slave_IO_Running:|Slave_SQL_Running:' Warning: Using a password on the command line interface can be insecure.                   Master_Host: 192.168.253.241              Slave_IO_Running: Yes             Slave_SQL_Running: Yes

7、再次启动MHA的manager服务

1	[iyunv@manager ~]# nohup masterha_manager --conf=/usr/local/mha/mha.cnf > /tmp/mha_manager.log 2>&1 &

五、通过vip实现mysql的高可用
1、修改/usr/local/mha/mha.cnf

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25

[server default] user=mha_rep password=123456 manager_workdir=/usr/local/mha manager_log=/usr/local/mha/manager.log master_ip_failover_script=/usr/local/mha/scripts/master_ip_failover    #添加管理vip的脚本 ssh_user=root repl_user=backup repl_password=backup ping_interval=1 [server1] hostname=192.168.253.241 master_binlog_dir=/data/mysql/ candidate_master=1 [server2] hostname=192.168.253.242 master_binlog_dir=/data/mysql/ candidate_master=1 [server3] hostname=192.168.253.243 master_binlog_dir=/data/mysql/ no_master=1

2、修改脚本/usr/local/mha/scripts/master_ip_failover

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83

#!/usr/bin/env perl use strict; use warnings FATAL => 'all'; use Getopt::Long; my (     $command,          $ssh_user,        $orig_master_host, $orig_master_ip,     $orig_master_port, $new_master_host, $new_master_ip,    $new_master_port ); my $vip = '192.168.253.240';            #vip地址 my $key = '1'; my $ssh_start_vip = "/sbin/ifconfig eth0:$key $vip";        #绑定在指定的网卡上面 my $ssh_stop_vip = "/sbin/ifconfig eth0:$key down"; GetOptions(     'command=s'          => \$command,     'ssh_user=s'         => \$ssh_user,     'orig_master_host=s' => \$orig_master_host,     'orig_master_ip=s'   => \$orig_master_ip,     'orig_master_port=i' => \$orig_master_port,     'new_master_host=s'  => \$new_master_host,     'new_master_ip=s'    => \$new_master_ip,     'new_master_port=i'  => \$new_master_port, ); exit &main(); sub main {     print "\n\nIN SCRIPT TEST====$ssh_stop_vip==$ssh_start_vip===\n\n";     if ( $command eq "stop" || $command eq "stopssh" ) {         my $exit_code = 1;         eval {             print "Disabling the VIP on old master: $orig_master_host \n";             &stop_vip();             $exit_code = 0;         };         if ($@) {             warn "Got Error: $@\n";             exit $exit_code;         }         exit $exit_code;     }     elsif ( $command eq "start" ) {         my $exit_code = 10;         eval {             print "Enabling the VIP - $vip on the new master - $new_master_host \n";             &start_vip();             $exit_code = 0;         };         if ($@) {             warn $@;             exit $exit_code;         }         exit $exit_code;     }     elsif ( $command eq "status" ) {         print "Checking the Status of the script.. OK \n";         exit 0;     }     else {         &usage();         exit 1;     } } sub start_vip() {     `ssh $ssh_user\@$new_master_host \" $ssh_start_vip \"`; } # A simple system call that disable the VIP on the old_master sub stop_vip() {     `ssh $ssh_user\@$orig_master_host \" $ssh_stop_vip \"`; } sub usage {     print     "Usage: master_ip_failover --command=start|stop|stopssh|status --orig_master_host=host --orig_master_ip=ip --orig_master_port=port --new_master_host=host --new_master_ip=ip --new_master_port=port\n"; }

3、模拟故障进行切换
#停止master的mysql服务

1 2	[iyunv@master ~]# service mysqld stop Shutting down MySQL... SUCCESS!

#查看slave02的同步信息

1 2 3 4 5

[iyunv@slave02 ~]# mysql -uroot -p123456 -e 'show slave status\G' |egrep 'Master_Host|Slave_IO_Running:|Slave_SQL_Running:' Warning: Using a password on the command line interface can be insecure.                   Master_Host: 192.168.253.242              Slave_IO_Running: Yes             Slave_SQL_Running: Yes

#查看slave01的IP信息

1 2 3 4 5 6 7 8 9 10

1: lo: <LOOPBACK,UP,LOWER_UP> mtu 16436 qdisc noqueue state UNKNOWN     link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00     inet 127.0.0.1/8 scope host lo 2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP qlen 1000     link/ether a2:28:26:4d:72:f6 brd ff:ff:ff:ff:ff:ff     inet 192.168.253.242/24 brd 192.168.253.255 scope global eth0     #这里能看到vip已自动添加     inet 192.168.253.240/24 brd 192.168.253.255 scope global secondary eth0:1 3: eth1: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN qlen 1000     link/ether 56:17:7e:16:50:3c brd ff:ff:ff:ff:ff:ff

4、恢复master的mysql服务同开始恢复方法一样。
六.MHA日常维护命令
1.查看ssh登陆是否成功

1	masterha_check_ssh --conf=/usr/local/mha/mha.cnf

2.查看复制是否建立好

1	masterha_check_repl --conf=/usr/local/mha/mha.cnf

3.启动mha

1	nohup masterha_manager --conf=/usr/local/mha/mha.cnf > /tmp/mha_manager.log 2>&1 &

4.检查启动的状态

1	masterha_check_status --conf=/usr/local/mha/mha.cnf

5.停止mha

1	masterha_stop masterha_check_status --conf=/usr/local/mha/mha.cnf

6.failover后下次重启
#每次failover切换后会在管理目录生成文件app1.failover.complete ，下次在切换的时候会发现有这个文件导致切换不成功，需要手动清理掉。

1	rm -rf /usr/local/mha/mha.failover.complete
