Nagios利用NSClient++监控Windows主机

人气旺

一、简介

NSClient++官网：http://www.nsclient.org/
1、利用NSClient++监控的资源

CPU负载

内存占有率
Disk利用率

服务状态

运行的进程等


2、NSClient++监控的工作原理
NSClient++是用来监控Windows主机时安装在Windows主机上的组件。被监控机上安装NSClient,,当监控主机将监控请求发给NSClient后,NSClient直接完成监控,所有的监控是由NSClient完成的.不需要额外的插件。这也说明了NSClient不灵活,没有可扩展性.它只能完成自己本身包含的监控操作,不能由一些插件来扩展.好在NSClient已经做的不错了,基本上可以完全满足我们的监控需要。



二、安装NSClient++
1、下载NSClient++
下载地址：http://sourceforge.net/projects/nscplus/files/nscplus/

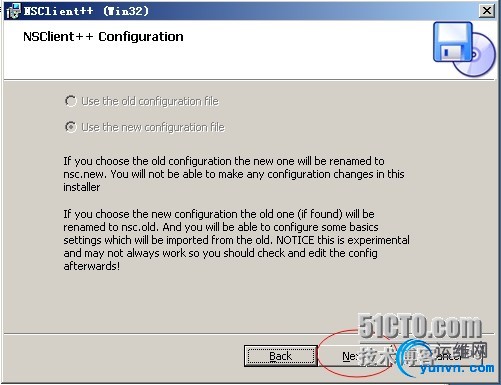

2、安装NSClient++




Allowed hosts：(this is the IP of the nagios (or other)server)

允许的主机地址：Nagios服务器端的IP地址

NSClient password（only userd via check_nt）
NSClient的密码：填写Nagios跟NSClient++进程通信的密码，可以不设置

Modules to load：
安装并加载相应的模块：NSClient++自带的有check_plugins插件，check_nt,check_nrpe,NSCA,WMI
在这里我们全部选择，以后会有用到的。


点击【Finsh】，表示安装NSClient++完成

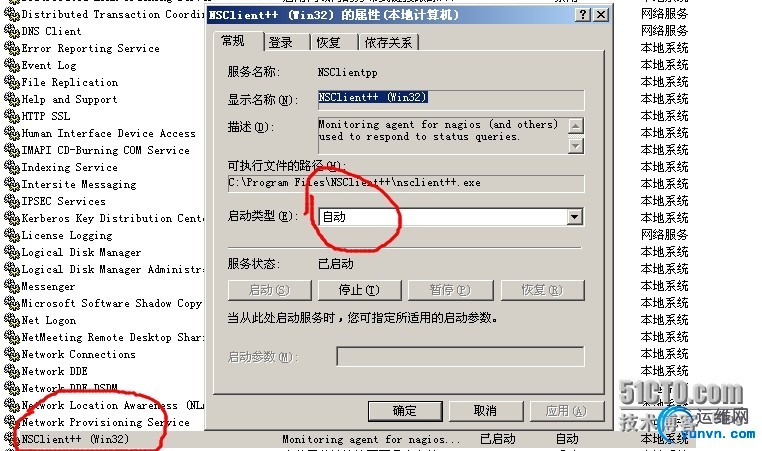

3、查看NSClient++服务是否已经启用

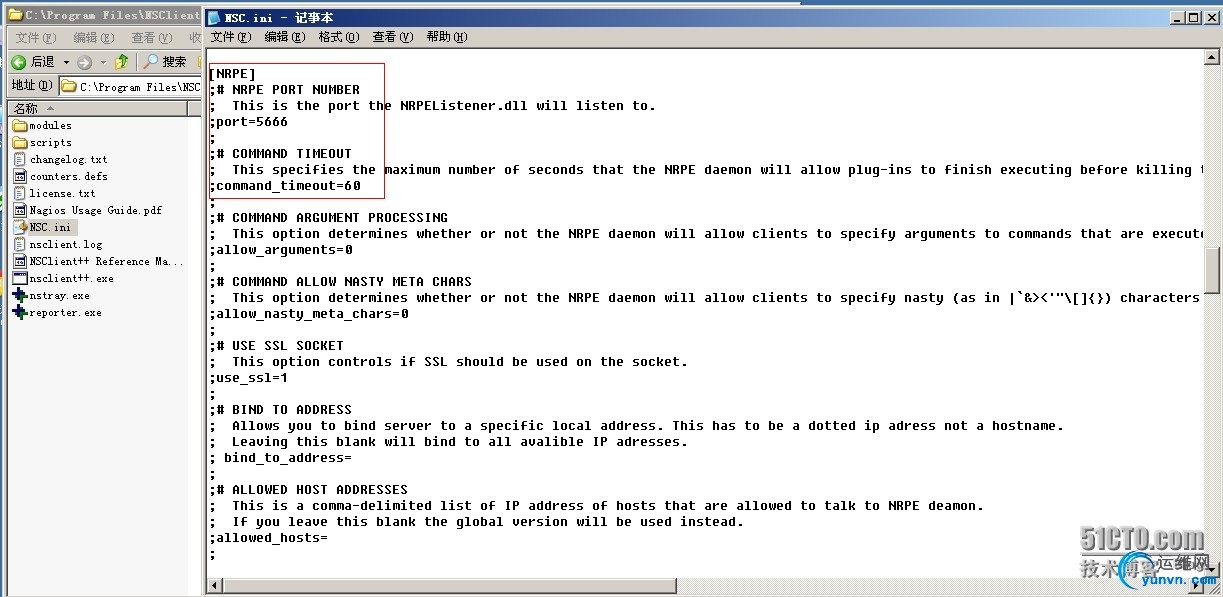

4、查看NSClient++的配置文件
默认是安装在C:Program FilesNSClient++ 目录下，NSC.ini即为NSClient服务的配置文件，一般我们无需修改，但是当我们监控端的IP地址改变时，或者密码忘记，即可以在这里修改了。
安装时加载的模块

设置允许连接的地址：为Nagios的IP地址

NRPE的默认端口号


三、NSClient应用监控

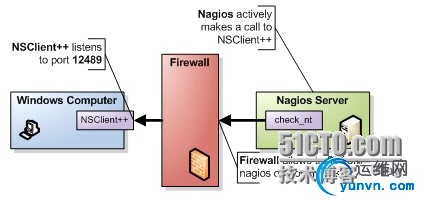

NSClient++与Nagios服务器通信，主要使用Nagios服务器的check_nt插件。原理图如下


1、check_nt插件的使用说明

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115

[iyunv@Nagios ~]# cd /usr/local/nagios/libexec/ [iyunv@Nagios libexec]# ./check_nt -h   #查看check_nt的语法 check_nt v2.0.3 (nagios-plugins 2.0.3) Copyright (c) 2000 Yves Rubin (rubiyz@yahoo.com) Copyright (c) 2000-2014 Nagios Plugin Development Team     <devel@nagios-plugins.org> This plugin collects data from the NSClient service running on a Windows NT/2000/XP/2003 server. Usage: check_nt -H host -v variable [-p port] [-w warning] [-c critical] [-l params] [-d SHOWALL] [-u] [-t timeout] Options: -h, --help     Print detailed help screen -V, --version     Print version information --extra-opts=[section][@file]     Read options from an ini file. See     https://www.nagios-plugins.org/doc/extra-opts.html     for usage and examples. Options: -H, --hostname=HOST    Name of the host to check -p, --port=INTEGER    Optional port number (default: 1248)  #默认端口号 -s, --secret=                 #指定的密码    Password needed for the request -w, --warning=INTEGER    Threshold which will result in a warning status -c, --critical=INTEGER    Threshold which will result in a critical status -t, --timeout=INTEGER    Seconds before connection attempt times out (default:  -l, --params=    Parameters passed to specified check (see below) -d, --display={SHOWALL}    Display options (currently only SHOWALL works) -u, --unknown-timeout    Return UNKNOWN on timeouts10) -h, --help    Print this help screen -V, --version    Print version information -v, --variable=STRING    Variable to check Valid variables are: CLIENTVERSION = Get the NSClient version   If -l  is specified, will return warning if versions differ. CPULOAD =   Average CPU load on last x minutes.   Request a -l parameter with the following syntax:   -l ,,.    should be less than 24*60.   Thresholds are percentage and up to 10 requests can be done in one shot.   ie: -l 60,90,95,120,90,95 UPTIME =   Get the uptime of the machine.   -l      = seconds, minutes, hours, or days. (default: minutes)   Thresholds will use the unit specified above. USEDDISKSPACE =   Size and percentage of disk use.   Request a -l parameter containing the drive letter only.   Warning and critical thresholds can be specified with -w and -c. MEMUSE =   Memory use.   Warning and critical thresholds can be specified with -w and -c. SERVICESTATE =   Check the state of one or several services.   Request a -l parameters with the following syntax:   -l ,,,...   You can specify -d SHOWALL in case you want to see working services   in the returned string. PROCSTATE =   Check if one or several process are running.   Same syntax as SERVICESTATE. COUNTER =   Check any performance counter of Windows NT/2000.     Request a -l parameters with the following syntax:     -l "\\counter","     The  parameter is optional and is given to a printf   output command which requires a float parameter.   If  does not include "%%", it is used as a label.   Some examples:   "Paging file usage is %%.2f %%%%"   "%%.f %%%% paging file used." INSTANCES =   Check any performance counter object of Windows NT/2000.   Syntax: check_nt -H  -p  -v INSTANCES -l    is a Windows Perfmon Counter object (eg. Process),   if it is two words, it should be enclosed in quotes   The returned results will be a comma-separated list of instances on    the selected computer for that object.   The purpose of this is to be run from command line to determine what instances    are available for monitoring without having to log onto the Windows server     to run Perfmon directly.   It can also be used in scripts that automatically create Nagios service    configuration files.   Some examples:   check_nt -H 192.168.1.1 -p 1248 -v INSTANCES -l Process   #check_nt的语法    Notes: - The NSClient service should be running on the server to get any information    (http://nsclient.ready2run.nl). - Critical thresholds should be lower than warning thresholds - Default port 1248 is sometimes in use by other services. The error    output when this happens contains "Cannot map xxxxx to protocol number".    One fix for this is to change the port to something else on check_nt    and on the client service it's connecting to. Send email to help@nagios-plugins.org if you have questions regarding use of this software. To submit patches or suggest improvements, send email to devel@nagios-plugins.org

2、check_nt命令的使用
check_nt参数解释
-w：警告比例
-c：紧急比例
-l：过去5分钟的平均值，80%的警告  90%紧急

四、定义命令、主机、服务
1、定义命令

1 2 3 4 5 6 7 8 9 10 11 12 13

[iyunv@Nagios ~]# vim /usr/local/nagios/etc/objects/commands.cfg # 'check_win' command definition define command{         command_name    check_win         command_line    $USER1$/check_nt -H $HOSTADDRESS$ -p 12489 -v $ARG1$ $ARG2$         } 注释： $..$    表示系统内置的宏，也就是所谓的变量 $USER1$ 表示插件所在的目录   -H      指定主机地址 $HOSTADDRESS$  应用到哪个主机，就用哪个主机的地址 $ARG1$  传递的参数,形参 -s      指定密码 默认为空

2、定义主机和服务

1 2 3

[iyunv@Nagios objects]# cp windows.cfg windows106.cfg [iyunv@Nagios objects]# sed -i 's/winserver/Windows106/g' windows106.cfg [iyunv@Nagios objects]# sed -i 's/192.168.1.2/192.168.0.106/' windows106.cfg

4、检测配置文件是否有语法错误

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41

[iyunv@Nagios ~]# service nagios configtest Nagios Core 4.0.7 Copyright (c) 2009-present Nagios Core Development Team and Community Contributors Copyright (c) 1999-2009 Ethan Galstad Last Modified: 06-03-2014 License: GPL Website: http://www.nagios.org Reading configuration data...    Read main config file okay...    Read object config files okay... Running pre-flight check on configuration data... Checking objects...     Checked 8 services.     Checked 1 hosts.     Checked 1 host groups.     Checked 0 service groups.     Checked 1 contacts.     Checked 1 contact groups.     Checked 25 commands.     Checked 5 time periods.     Checked 0 host escalations.     Checked 0 service escalations. Checking for circular paths...     Checked 1 hosts     Checked 0 service dependencies     Checked 0 host dependencies     Checked 5 timeperiods Checking global event handlers... Checking obsessive compulsive processor commands... Checking misc settings... Total Warnings: 0 Total Errors:   0 Things look okay - No serious problems were detected during the pre-flight check Object precache file created: /usr/local/nagios/var/objects.precache

5、重启nagios服务

1 2 3 4

[iyunv@Nagios objects]# service nagios restart Running configuration check... Stopping nagios: .done. Starting nagios: done.

四、浏览器查看监控信息

1、登陆后点击【Hosts】，查看新监控的Windows主机信息



2、点击【Services】，查看Windows服务的状态信息

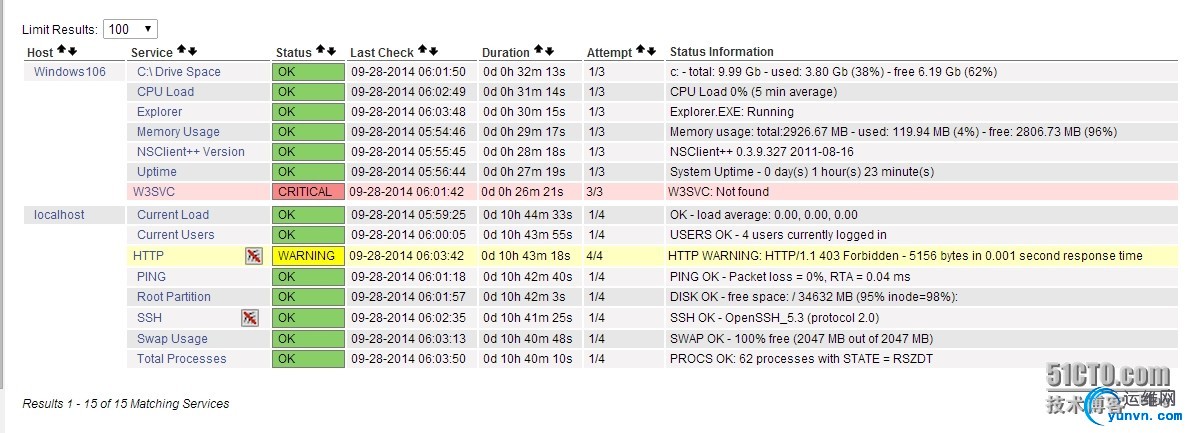

3、等待几分钟后状态就正常了，如下图所示
