高可用集群corosync+pacemaker+drbd+httpd----自动配置篇

kuyu

本文结合shell+ansible实现高可用集群

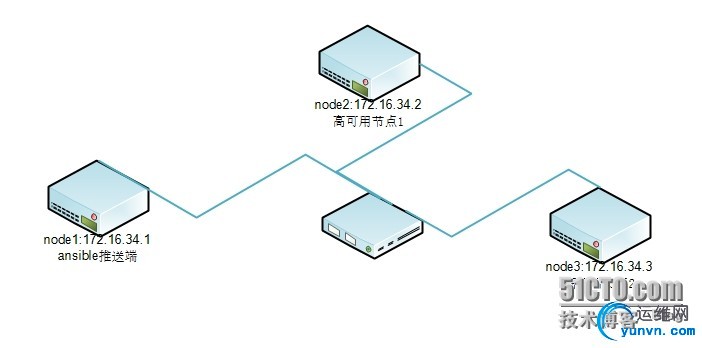

实验拓扑图如下


首先利用yum安装ansible

配置过程如下

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34

[iyunv@node1 ~]# tree /etc/ansible/ /etc/ansible/ |-- ansible.cfg    ---------------ansible配置文件 |-- deploy.sh     ----------------安装脚本 |-- drbdha_1.yaml    |-- drbdha_2.yaml |-- hosts        ----------------ansible配置文件 `-- roles       |-- drbdha_1  ------------amsible角色1     |   |-- files     |   |   |-- ansible-1.5.4-1.el6.noarch.rpm     |   |   |-- authkey   ------与手动篇文件相同     |   |   |-- corosync.conf ------与手动篇文件相同     |   |   |-- crmdrbd.txt     |   |   |-- crmsh-1.2.6-4.el6.x86_64.rpm     |   |   |-- drbd-8.4.3-33.el6.x86_64.rpm     |   |   |-- drbd-kmdl-2.6.32-431.el6-8.4.3-33.el6.x86_64.rpm     |   |   |-- global_common.conf  -------与手动篇文件相同     |   |   |-- hosts     |   |   |-- pssh-2.3.1-2.el6.x86_64.rpm     |   |   `-- web.res     |   |-- handlers     |   |   `-- main.yaml     |   |-- tasks     |   |   `-- main.yaml     |   |-- templates     |   `-- vars `-- drbdha_2  -----------------------ansible角色2         |-- handlers         |   `-- main.yaml         `-- tasks             `-- main.yaml    10 directories, 20 files

各文件内容如下
Ansible.cfg使用默认配置
Hosts文件

1 2 3

[drbdservers] 172.16.34.2 ansible_ssh_user=root ansible_ssh_pass=hzm132 172.16.34.3 ansible_ssh_user=root ansible_ssh_pass=hzm132

deploy.sh 文件

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26

#!/bin/bash #DES:install drbd+corosync #author:centod #date:2014-10-12 #ver:0.1    ROLEFIL1=./drbdha_1.yaml ROLEFIL2=./drbdha_2.yaml ansible-playbook $ROLEFIL1 [ -f /tmp/status.txt ] && rm -rf /tmp/status.txt until false; do     ansible-playbook -t filecopy $ROLEFIL1     sleep 5     if grep '%' /tmp/status.txt;then        echo -e "*********************DATE SYNC IS NOT                OK WAITING ^^********************"        rm -rf /tmp/status.txt        continue;        else        echo -e "*********************DATE SYNC IS                OK ^^*************************"        break;     fi done ansible-playbook $ROLEFIL2

drbdha_1.yaml文件

1 2 3 4 5

- name: deploy hadrbd cluster   remote_user: root   hosts: drbdservers   roles: - drbdha_1

crmdrbd.txt文件

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29

configure property stonith-enabled=false configure property no-quorum-policy=ignore configure commit configure primitive drbd ocf:linbit:drbd         params drbd_resource="web"         op monitor role="Master" interval="20s" timeout="30s"         op monitor role="Slave" interval="40s" timeout="30"         op start timeout="240s" interval="0"         op stop timeout="100s" interval="0" configure primitive httpd lsb:httpd         op monitor interval="20s" timeout="20s"         op start timeout="20s" interval="0"         op stop timeout="20s" interval="0"         meta target-role="Started" configure primitive httpd-storage ocf:heartbeat:Filesystem         params device="/dev/drbd0" directory="/var/www/html" fstype="ext4"         op monitor interval="20s" timeout="40s"         op start timeout="60s" interval="0"         op stop timeout="60s" interval="0"         meta target-role="Started" configure primitive vip ocf:heartbeat:IPaddr         params ip="172.16.101.220"         meta target-role="Started" configure ms ms-webdrbd drbd         meta master-max="1" master-node-max="1" clone-max="2"         clone-node-max="1" notify="true" target-role="Started" configure colocation storage-nrbd-master-httpd-vip inf: httpd-storage ms-webdrbd:Master httpd vip configure order nrbd-storage-vip-httpd inf: ms-webdrbd:promote httpd-storage:start vip httpd configure commit

web.res文件

1 2 3 4 5 6 7 8 9 10 11 12 13 14

resource web {         on node2.centod.com {         device /dev/drbd0;         disk   /dev/sda3;         address 172.16.34.2:7789;         meta-disk internal;         }         on node3.centod.com {         device /dev/drbd0;         disk  /dev/sda3;         address 172.16.34.3:7789;         meta-disk internal;       } }

handlers-- main.yaml 文件内容

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29

- name: build disk partition   shell: echo -e "n  p  3   +2G  w " |fdisk /dev/sda || /bin/true - name: partition flush   shell: kpartx -af /dev/sda   shell: partx  -a /dev/sda   shell: partx  -a /dev/sda - name: service configure   copy: src={{ item.conf }} dest={{ item.destdir }}   with_items:     - { conf: global_common.conf,destdir: /etc/drbd.d/ }     - { conf: web.res           ,destdir: /etc/drbd.d/ }     - { conf: corosync.conf     ,destdir: /etc/corosync/ }     - { conf: authkey           ,destdir: /etc/corosync  }     - { conf: crmdrbd.txt       ,destdir: /etc/corosync  } - name: init drbd device   shell: drbdadm create-md web   ignore_errors: True - name: service restart   service: name=corosync state=restarted - name: modprobe   shell: modprobe drbd - name: chkconf off   shell: chkconfig drbd off   shell: chkconfig httpd off - name: drbd start   service: name=drbd state=restarted - name: drbd promote   shell: drbdadm primary --force web   when: ansible_hostname == "node2"

-- tasks-- main.yaml 文件

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22

- name: deploy rpm pakages   copy: src={{ item }} dest=/root/   with_items:         - crmsh-1.2.6-4.el6.x86_64.rpm         - pssh-2.3.1-2.el6.x86_64.rpm         - drbd-8.4.3-33.el6.x86_64.rpm         - drbd-kmdl-2.6.32-431.el6-8.4.3-33.el6.x86_64.rpm   notify:         - install rpm         - build disk partition         - partition flush         - service configure         - init drbd device         - service restart         - modprobe         - chkconf off         - drbd start         - drbd promote - name: status file copy   fetch: src=/proc/drbd dest=/tmp/status.txt flat=yes validate_md5=no   when: ansible_hostname == "node2"   tags: filecopy

drbdha_2.yaml文件

1 2 3 4 5

- name: deploy hadrbd cluster   remote_user: root   hosts: drbdservers   roles: - drbdha_2

handlers-- main.yaml文件

1 2 3 4 5 6 7 8 9 10 11 12 13

- name: mke2fs   shell: mke2fs -t ext4 /dev/drbd0   when: ansible_hostname == "node2" - name: stop service   service: name={{ item }} state=stopped   with_items:   - httpd   - drbd - name: configure corosync   shell: crm -f /etc/corosync/crmdrbd.txt   when: ansible_hostname == "node2" - name: service restart   service: name=corosync state=restarted

tasks-- main.yaml 文件内容

1 2 3 4 5 6 7

- name: part2   shell: echo "part2 is start"   notify:     - mke2fs     - stop service     - configure corosync - service restart

下面执行安装脚本
Bash deploy.sh

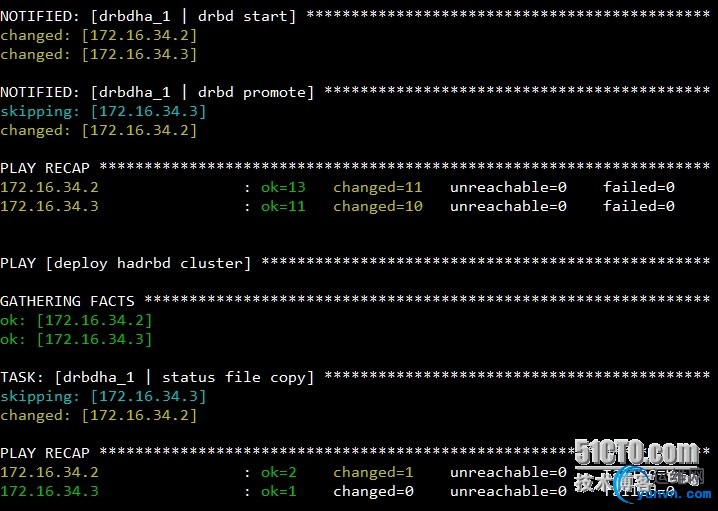

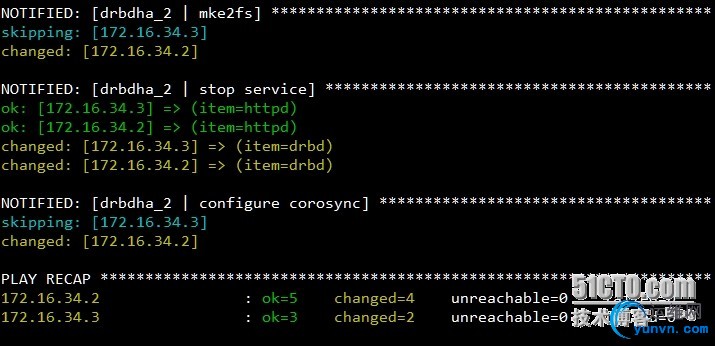

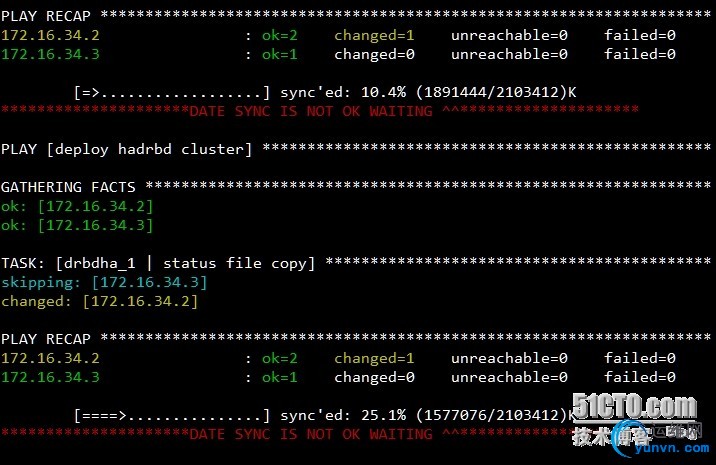

执行内容如下图

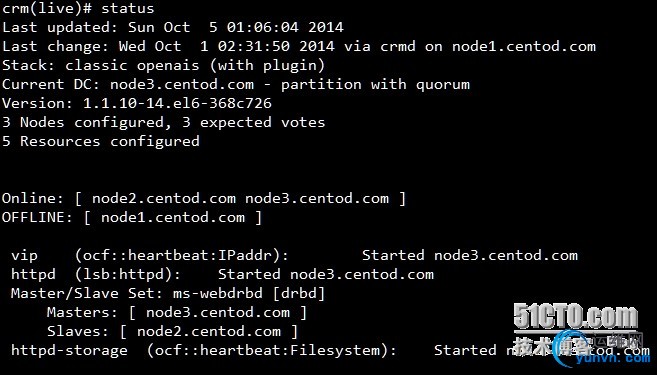

执行结束后到部署的节点查看结果
