MySQL读写分离与负载均衡--MHA与MaxScale环境介绍Part1:写在最前
看了某大牛的文章，讲述了一下MaxScale比LVS的好处多多，那您倒是放出来配置文件啊~~大牛说：
需要的单独找我吧，太长了配置文件……
看到这我心中久久不能平静啊。。。联系不上您呐 = =，于是各种资料各种找啊~各种坑各种血崩啊！~~~
由于不知道大牛的配置文件是什么样子，本文仅以随笔的形式，记录下实施过程。也欢迎您和我探讨您在实施MaxScale时遇到的各种问题和心得体会。
Part2:环境
MySQL5.7 MHA + MaxScale2.0
192.168.1.248 HE1 slave1
192.168.1.249 HE2 slave2
192.168.1.250 HE3 master
192.168.1.251 HE4 MHA-manager
Part3:MHA

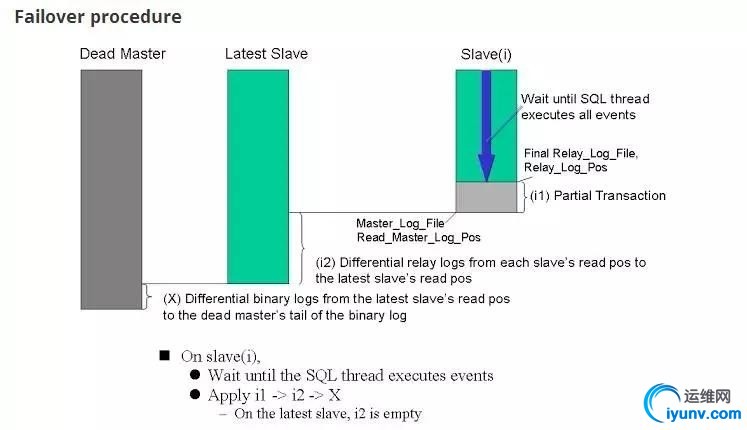

MHA的优点不作赘述，看下原理图吧
从宕机崩溃的Master保存二进制日志事件(binlogevent)
识别含有最新更新的Slave
应用差异的中继日志(relaylog)到其他Slave
应用从Master保存的二进制日志事件
提升一个Slave为新的Master
使其他的Slave连接新的Master进行复制
构建MySQL5.7MHAPart1:写在最前
MHA的部署不是本文的叙述重点，网上比比皆是。这里只记录下MySQL5.7的MHA搭建时的一些坑
Part2:坑
①mha4mysql-manager-0.57.tar.gz
②mha4mysql-node-0.57.tar.gz
Warning:警告这两个包首先你要搞到，虽然说0.56什么的不代表支持的mysql版本，但经过测试，想要在MySQL5.7上部署MHA，少走坑，请用0.57的。
Part3:安装包的位置
请在所有的节点包括Manager节点安装好你的mha4mysql-node-0.57.tar.gz，以保证后期在管理节点执行perl Makefile.PL的时候，你能如愿以偿的看到如下信息
1
2
3
4
5
6
7
8
9
10
11
12
13
| [iyunv@HE4 mha4mysql-manager-0.57]# perl Makefile.PL
*** Module::AutoInstall version 1.06
*** Checking for Perl dependencies...
[Core Features]
- DBI ...loaded. (1.609)
- DBD::mysql ...loaded. (4.013)
- Time::HiRes ...loaded. (1.9721)
- Config::Tiny ...loaded. (2.12)
- Log::Dispatch ...loaded. (2.26)
- Parallel::ForkManager ...loaded. (0.7.5)
- MHA::NodeConst ...loaded. (0.57)
*** Module::AutoInstall configuration finished.
Writing Makefile for mha4mysql::manager
|
Part4:一些常见错误记录
如果遇到
①这样
1
2
3
4
5
6
7
8
9
| [iyunv@HE2 bin]# masterha_check_repl --conf=/etc/mha/mha.conf
Tue Apr 5 22:09:32 2016 - [warning] Global configuration file /etc/masterha_default.cnf not found. Skipping.
Tue Apr 5 22:09:32 2016 - [info] Reading application default configuration from /etc/mha/mha.conf..
Tue Apr 5 22:09:32 2016 - [info] Reading server configuration from /etc/mha/mha.conf..
Tue Apr 5 22:09:32 2016 - [info] MHA::MasterMonitor version 0.57.
Tue Apr 5 22:09:32 2016 - [error][/usr/local/lib64/perl5/MHA/ServerManager.pm, ln188] There is no alive server. We can't do failover
Tue Apr 5 22:09:32 2016 - [error][/usr/local/lib64/perl5/MHA/MasterMonitor.pm, ln424] Error happened on checking configurations. at /usr/local/lib64/perl5/MHA/MasterMonitor.pm line 326
Tue Apr 5 22:09:32 2016 - [error][/usr/local/lib64/perl5/MHA/MasterMonitor.pm, ln523] Error happened on monitoring servers.
Tue Apr 5 22:09:32 2016 - [info] Got exit code 1 (Not master dead).
|
解决方案
用的不是默认端口3306，请修改你的配置文件
②这样
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
| [iyunv@HE4 ~]#
masterha_check_repl --conf=/etc/mha/mha.conf
Tue Apr 5 22:36:33 2016 - [warning] Global
configuration file /etc/masterha_default.cnf not found. Skipping.
Tue Apr 5 22:36:33 2016 - [info] Reading application
default configuration from /etc/mha/mha.conf..
Tue Apr 5 22:36:33 2016 - [info] Reading server
configuration from /etc/mha/mha.conf..
Tue Apr 5 22:36:33 2016 - [info] MHA::MasterMonitor
version 0.57.
Tue Apr 5 22:36:34 2016 - [info] GTID failover mode =
0
Tue Apr 5 22:36:34 2016 - [info] Dead Servers:
Tue Apr 5 22:36:34 2016 - [info] Alive Servers:
Tue Apr 5 22:36:34 2016 - [info] 192.168.1.250(192.168.1.250:4008)
Tue Apr 5 22:36:34 2016 - [info] 192.168.1.248(192.168.1.248:4008)
Tue Apr 5 22:36:34 2016 - [info] 192.168.1.249(192.168.1.249:4008)
Tue Apr 5 22:36:34 2016 - [info] Alive Slaves:
Tue Apr 5 22:36:34 2016 - [info] 192.168.1.248(192.168.1.248:4008) Version=5.6.16-log (oldest major version
between slaves) log-bin:enabled
Tue Apr 5 22:36:34 2016 - [info] Replicating from
192.168.1.250(192.168.1.250:4008)
Tue Apr 5 22:36:34 2016 - [info] Primary candidate for the new Master
(candidate_master is set)
Tue Apr 5 22:36:34 2016 - [info] 192.168.1.249(192.168.1.249:4008) Version=5.6.16-log (oldest major version
between slaves) log-bin:enabled
Tue Apr 5 22:36:34 2016 - [info] Replicating from
192.168.1.250(192.168.1.250:4008)
Tue Apr 5 22:36:34 2016 - [info] Not candidate for the new Master
(no_master is set)
Tue Apr 5 22:36:34 2016 - [info] Current Alive
Master: 192.168.1.250(192.168.1.250:4008)
Tue Apr 5 22:36:34 2016 - [info] Checking slave
configurations..
Tue Apr 5 22:36:34 2016 - [warning] relay_log_purge=0 is not set on slave
192.168.1.248(192.168.1.248:4008).
Tue Apr 5 22:36:34 2016 - [warning] relay_log_purge=0 is not set on slave
192.168.1.249(192.168.1.249:4008).
Tue Apr 5 22:36:34 2016 - [info] Checking replication
filtering settings..
Tue Apr 5 22:36:34 2016 - [info] binlog_do_db= , binlog_ignore_db=
Tue Apr 5 22:36:34 2016 - [info] Replication filtering check ok.
Tue Apr 5 22:36:34 2016 - [info] GTID (with auto-pos)
is not supported
Tue Apr 5 22:36:34 2016 - [info] Starting SSH
connection tests..
Tue Apr 5 22:36:35 2016 - [info] All SSH connection
tests passed successfully.
Tue Apr 5 22:36:35 2016 - [info] Checking MHA Node
version..
Tue Apr 5 22:36:36 2016 - [info] Version check ok.
Tue Apr 5 22:36:36 2016 - [info] Checking SSH
publickey authentication settings on the current master..
Tue Apr 5 22:36:36 2016 - [info] HealthCheck: SSH to
192.168.1.250 is reachable.
Tue Apr 5 22:36:36 2016 - [info] Master MHA Node
version is 0.57.
Tue Apr 5 22:36:36 2016 - [info] Checking recovery
script configurations on 192.168.1.250(192.168.1.250:4008)..
Tue Apr 5 22:36:36 2016 - [info] Executing command: save_binary_logs
--command=test --start_pos=4 --binlog_dir=/log/mysql
--output_file=/usr/local/mha/save_binary_logs_test --manager_version=0.57
--start_file=mysql-bin.000009
Tue Apr 5 22:36:36 2016 - [info] Connecting to
root@192.168.1.250(192.168.1.250:22)..
Creating /usr/local/mha if not exists..
Creating directory /usr/local/mha.. done.
ok.
Checking output directory is accessible or
not..
ok.
Binlog found at /log/mysql, up to
mysql-bin.000009
Tue Apr 5 22:36:36 2016 - [info] Binlog setting check
done.
Tue Apr 5 22:36:36 2016 - [info] Checking SSH
publickey authentication and checking recovery script configurations on all
alive slave servers..
Tue Apr 5 22:36:36 2016 - [info] Executing command : apply_diff_relay_logs
--command=test --slave_user='root' --slave_host=192.168.1.248
--slave_ip=192.168.1.248 --slave_port=4008 --workdir=/usr/local/mha
--target_version=5.6.16-log --manager_version=0.57
--relay_log_info=/data/mysql/relay-log.info
--relay_dir=/data/mysql/
--slave_pass=xxx
Tue Apr 5 22:36:36 2016 - [info] Connecting to
root@192.168.1.248(192.168.1.248:22)..
Can't exec
"mysqlbinlog": No such file or directory at
/usr/local/lib64/perl5/MHA/BinlogManager.pm line 106.
mysqlbinlog version
command failed with rc 1:0, please verify PATH, LD_LIBRARY_PATH, and client
options
at /usr/local/bin/apply_diff_relay_logs line
493
Tue Apr 5 22:36:36 2016 -
[error][/usr/local/lib64/perl5/MHA/MasterMonitor.pm, ln205] Slaves settings
check failed!
Tue Apr 5 22:36:36 2016 -
[error][/usr/local/lib64/perl5/MHA/MasterMonitor.pm, ln413] Slave configuration
failed.
Tue Apr 5 22:36:36 2016 -
[error][/usr/local/lib64/perl5/MHA/MasterMonitor.pm, ln424] Error happened on
checking configurations. at
/usr/local/bin/masterha_check_repl line 48
Tue Apr 5 22:36:36 2016 -
[error][/usr/local/lib64/perl5/MHA/MasterMonitor.pm, ln523] Error happened on
monitoring servers.
Tue Apr 5 22:36:36 2016 - [info] Got exit code 1 (Not
master dead).
MySQL Replication
Health is NOT OK!
|
解决方案 [iyunv@HE1 MHA]# ln-s /usr/local/mysql/bin/mysqlbinlog /usr/bin/mysqlbinlog
③或者这样
1
2
3
4
5
6
7
8
9
10
11
12
13
| Binlog found at /log/mysql, up to mysql-bin.000009
Tue Apr 5 22:43:55 2016 - [info] Binlog setting check done.
Tue Apr 5 22:43:55 2016 - [info] Checking SSH publickey authentication and checking recovery script configurations on all alive slave servers..
Tue Apr 5 22:43:55 2016 - [info] Executing command : apply_diff_relay_logs --command=test --slave_user='root' --slave_host=192.168.1.248 --slave_ip=192.168.1.248 --slave_port=4008 --workdir=/usr/local/mha --target_version=5.6.16-log --manager_version=0.57 --relay_log_info=/data/mysql/relay-log.info --relay_dir=/data/mysql/ --slave_pass=xxx
Tue Apr 5 22:43:55 2016 - [info] Connecting to root@192.168.1.248(192.168.1.248:22)..
mysqlbinlog: unknown variable 'default-character-set=utf8'
mysqlbinlog version command failed with rc 7:0, please verify PATH, LD_LIBRARY_PATH, and client options
at /usr/local/bin/apply_diff_relay_logs line 493
Tue Apr 5 22:43:55 2016 - [error][/usr/local/lib64/perl5/MHA/MasterMonitor.pm, ln205] Slaves settings check failed!
Tue Apr 5 22:43:55 2016 - [error][/usr/local/lib64/perl5/MHA/MasterMonitor.pm, ln413] Slave configuration failed.
Tue Apr 5 22:43:55 2016 - [error][/usr/local/lib64/perl5/MHA/MasterMonitor.pm, ln424] Error happened on checking configurations. at /usr/local/bin/masterha_check_repl line 48
Tue Apr 5 22:43:55 2016 - [error][/usr/local/lib64/perl5/MHA/MasterMonitor.pm, ln523] Error happened on monitoring servers.
Tue Apr 5 22:43:55 2016 - [info] Got exit code 1 (Not master dead).
|
解决方案 注释掉my.cnf中的 [client] #default-character-set=utf8
遇到上述错误别慌张，看日志，根据报错来排查问题。
折腾半天，就为了这个OK
[iyunv@HE4 mha4mysql-manager-0.57]# masterha_check_status --conf=/etc/mha/mha.conf
mha (pid:32726) is running(0:PING_OK), master:192.168.1.250
MaxScale2.0Part1:写在最前

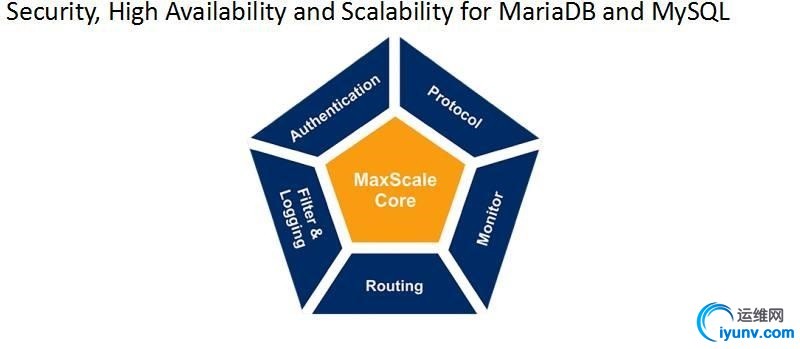

maxscale是mariadb公司开发的一套数据库中间件，可以很方便的实现读写分离方案；并且提供了读写分离的负载均衡和高可用性保障。另外maxscale对于前端应用而言是透明的，我们可以很方便的将应用迁移到maxscale中实现读写分离方案，来分担主库的压力。maxscale也提供了sql语句的解析过滤功能。这里我们主要讲解maxscale的安装、配置以及注意事项。

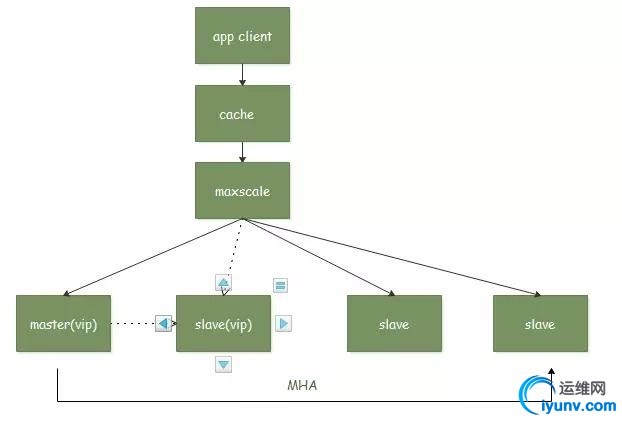

Part2:整体架构
Part3:安装
Maxscale配置很简单
[iyunv@HE3 MHA]# yum -y install maxscale-2.0.1-2.centos.6.x86_64.rpm (只在Maxscale上执行)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
| [iyunv@HE3 ~]# cat /etc/maxscale.cnf
# MaxScale documentation on GitHub:
# https://github.com/mariadb-corpo ... ntation-Contents.md
# Global parameters
#
# Number of threads is autodetected, uncomment for manual configuration
# Complete list of configuration options:
# https://github.com/mariadb-corpo ... figuration-Guide.md
[maxscale]
threads=auto
# Server definitions
#
# Set the address of the server to the network
# address of a MySQL server.
#
[server1]
type=server
address=192.168.1.248
port=3306
protocol=MySQLBackend
myweight=5
[server2]
type=server
address=192.168.1.249
port=3306
protocol=MySQLBackend
myweight=5
[server3]
type=server
address=192.168.1.100
port=3306
protocol=MySQLBackend
# Monitor for the servers
#
# This will keep MaxScale aware of the state of the servers.
# MySQL Monitor documentation:
# https://github.com/mariadb-corpo ... rs/MySQL-Monitor.md
[MySQL Monitor]
type=monitor
module=mysqlmon
servers=server1,server2,server3
user=mysync
passwd=MANAGER
monitor_interval=10000
# Service definitions
#
# Service Definition for a read-only service and
# a read/write splitting service.
#
# https://github.com/mariadb-corpo ... rs/ReadConnRoute.md
#[Read-Only Service] ###只读服务
#type=service
#router=readconnroute
#servers=server1,server2,server3
#user=sys_admin
#passwd=MANAGER
#router_options=slave
# https://github.com/mariadb-corpo ... s/ReadWriteSplit.md
[Read-Write Service] ####写服务
type=service
router=readwritesplit
enable_root_user=1
servers=server1,server2,server3
user=sys_admin
passwd=MANAGER
weightby=myweight
router_options=slave_selection_criteria=LEAST_GLOBAL_CONNECTIONS
max_slave_connections=1
# https://github.com/mariadb-corpo ... ference/MaxAdmin.md
[MaxAdmin Service]
type=service
router=cli
#[Read-Only Listener]
#type=listener
#service=Read-Only Service
#protocol=MySQLClient
#port=4008 ##读服务启动监听 端口4008
[Read-Write Listener]
type=listener
service=Read-Write Service
protocol=MySQLClient
port=4006 ####写服务启动监听 端口
[MaxAdmin Listener]
type=listener
service=MaxAdmin Service
protocol=maxscaled
port=6603 ###管理端口
|
[iyunv@HE3~]# /etc/init.d/maxscale start StartingMaxScale: maxscale (pid 28851) is running... [ OK ]
[iyunv@HE3~]# netstat -lntp |grep maxscale tcp 0 0 0.0.0.0:6603 0.0.0.0:* LISTEN 29878/maxscale tcp 0 0 0.0.0.0:4006 0.0.0.0:* LISTEN 29878/maxscale
[iyunv@HE3~]# maxadmin -pmariadb list services Services. --------------------------+----------------------+--------+--------------- ServiceName | Router Module | #Users | Total Sessions --------------------------+----------------------+--------+--------------- Read-OnlyService | readconnroute | 1 | 5 Read-WriteService | readwritesplit | 1 | 11 MaxAdminService | cli | 2 | 3 --------------------------+----------------------+--------+---------------
[iyunv@HE3~]# maxadmin -pmariadb list servers Servers. -------------------+-----------------+-------+-------------+-------------------- Server | Address | Port | Connections | Status -------------------+-----------------+-------+-------------+-------------------- server1 | 192.168.1.248 | 3306 | 0 | Slave,Running server2 | 192.168.1.249 | 3306 | 0 | Slave,Running server3 | 192.168.1.250 | 3306 | 0 | Master,Running -------------------+-----------------+-------+-------------+--------------------
至此，MHA+Maxscale的环境就完成了。
读写分离与负载均衡校验Part1:读写分离 在Master构建相应的测试表
1
2
3
4
5
6
7
| mysql> select * from helei;
+--------+
| a |
+--------+
| HE3 |
+--------+
3 rows in set (0.00 sec)
|
在slave1插入数据HE1
1
2
3
4
5
6
7
| mysql> select * from helei;
+------+
| a |
+------+
| HE3 |
| HE1 |
+------+
|
在slave2插入数据HE2
1
2
3
4
5
6
7
| mysql> select * from helei;
+------+
| a |
+------+
| HE3 |
| HE2 |
+------+
|
现在链接4006读写分离端口，进行数据写入
1
2
3
4
5
6
7
8
9
10
11
| [iyunv@HE3 ~]# mysql -h192.168.1.250 -P 4006 -usys_admin -pMANAGER maxscale -e"insert into helei values('写入');"
mysql: [Warning] Using a password on the command line interface can be insecure.
[iyunv@HE3 ~]# mysql -h192.168.1.250 -P 4008 -usys_admin -pMANAGER maxscale -e"select * from helei;"
mysql: [Warning] Using a password on the command line interface can be insecure.
+--------+
| a |
+--------+
| HE3 |
| HE1 |
| 写入 |
+--------+
|
可以看到主库插入完毕后从库已经同步完成，这条查询完成在了HE1（slave1）上
Part2:负载均衡
我们配置的read比例为1:1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
| [iyunv@HE3 ~]# maxadmin -pmariadb show service "Read-Write Service"
Service 0xef5570
Service: Read-Write Service
Router: readwritesplit (0x7ff5e8fa6ec0)
State: Started
Number of router sessions: 15
Current no. of router sessions: 0
Number of queries forwarded: 41
Number of queries forwarded to master:2 (4.88%)
Number of queries forwarded to slave: 39 (95.12%)
Number of queries forwarded to all: 0 (0.00%)
Connection distribution based on myweight server parameter.
Server Target % Connections Operations
Global Router
server1 50.0% 0 0 0
server2 50.0% 0 0 0
server3 100.0% 0 0 0
Started: Thu Nov 3 23:46:27 2016
Root user access: Enabled
Backend databases:
192.168.1.248:3306 Protocol: MySQLBackend
192.168.1.249:3306 Protocol: MySQLBackend
192.168.1.100:3306 Protocol: MySQLBackend
Routing weight parameter: myweight
Users data: 0xf09370
Total connections: 16
Currently connected: 1
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
| [iyunv@HE3 ~]# for i in `seq 1 10`; do mysql -h 192.168.1.250 -P 4006 -usys_admin -pMANAGER maxscale -e "select @@hostname; select sleep(10)" 2>/dev/null & done
[iyunv@HE3 ~]# +------------+
| @@hostname |
+------------+
| HE1 |
+------------+
+------------+
| @@hostname |
+------------+
| HE1 |
+------------+
+------------+
| @@hostname |
+------------+
| HE1 |
+------------+
+------------+
| @@hostname |
+------------+
| HE1 |
+------------+
+------------+
| @@hostname |
+------------+
| HE1 |
+------------+
+------------+
| @@hostname |
+------------+
| HE2 |
+------------+
+------------+
| @@hostname |
+------------+
| HE2 |
+------------+
+------------+
| @@hostname |
+------------+
| HE2 |
+------------+
+------------+
| @@hostname |
+------------+
| HE2 |
+------------+
+------------+
| @@hostname |
+------------+
| HE2 |
+------------+
|
OK!That's how it works!~
故障测试Part1:stop slave故障
停止HE1的复制
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
| [iyunv@HE1 ~]# mysql
-uroot -p
Enter password:
Welcome to the MySQL
monitor. Commands end with ; or g.
Your MySQL
connection id is 74
Server version:
5.7.16-log MySQL Community Server (GPL)
Copyright (c) 2000,
2016, Oracle and/or its affiliates. All rights reserved.
Oracle is a
registered trademark of Oracle Corporation and/or its
affiliates. Other
names may be trademarks of their respective
owners.
Type 'help;' or 'h'
for help. Type 'c' to clear the current input statement.
mysql> stop
slave;
Query OK, 0 rows
affected (0.05 sec)
[iyunv@HE3 ~]#
maxadmin -pmariadb list servers
Servers.
-------------------+-----------------+-------+-------------+--------------------
Server | Address | Port
| Connections | Status
-------------------+-----------------+-------+-------------+--------------------
server1 | 192.168.1.248 |
3306 | 0 | Running
server2 | 192.168.1.249 |
3306 | 0 | Slave,
Running
server3 | 192.168.1.250 |
3306 | 0 | Master,
Running
-------------------+-----------------+-------+-------------+--------------------
[iyunv@HE3 ~]# mysql -h192.168.1.250 -P 4006 -usys_admin
-pMANAGER maxscale -e"select * from helei;"
mysql: [Warning]
Using a password on the command line interface can be insecure.
+--------+
| a |
+--------+
| HE3 |
| HE2 |
| 写入
|
+--------+
[iyunv@HE3 ~]# mysql -h192.168.1.250 -P 4006 -usys_admin
-pMANAGER maxscale -e"select * from helei;"
mysql: [Warning]
Using a password on the command line interface can be insecure.
+--------+
| a |
+--------+
| HE3 |
| HE2 |
| 写入
|
+--------+
|
可以看出，在slave1故障后，所有的读操作都进入了HE2(slave2)；
恢复HE1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
|
mysql> start
slave;
Query OK, 0 rows
affected (0.00 sec)
[iyunv@HE3 ~]#
maxadmin -pmariadb list servers
Servers.
-------------------+-----------------+-------+-------------+--------------------
Server | Address | Port
| Connections | Status
-------------------+-----------------+-------+-------------+--------------------
server1 | 192.168.1.248 |
3306 | 0 | Slave,
Running
server2 | 192.168.1.249 |
3306 | 0 | Slave,
Running
server3 | 192.168.1.250 |
3306 | 0 | Master,
Running
-------------------+-----------------+-------+-------------+--------------------
验证
[iyunv@HE3 ~]# mysql -h192.168.1.250 -P 4006 -usys_admin
-pMANAGER maxscale -e"select * from helei;"
mysql: [Warning]
Using a password on the command line interface can be insecure.
+--------+
| a |
+--------+
| HE3 |
| HE2 |
| 写入
|
+--------+
[iyunv@HE3 ~]# mysql -h192.168.1.250 -P 4006 -usys_admin
-pMANAGER maxscale -e"select * from helei;"
mysql: [Warning]
Using a password on the command line interface can be insecure.
+--------+
| a |
+--------+
| HE3 |
| HE1 |
| 写入
|
+--------+
|
在HE1（slave1）恢复完成后，重新有了负载均衡。
Part2:mysql down故障
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
| [iyunv@HE1 ~]#
/etc/init.d/mysqld stop
Shutting down
MySQL..... SUCCESS!
停止HE1(slave)可以看到转发到了HE2上
[iyunv@HE3 ~]# maxadmin -pmariadb list servers
Servers.
-------------------+-----------------+-------+-------------+--------------------
Server | Address | Port
| Connections | Status
-------------------+-----------------+-------+-------------+--------------------
server1 | 192.168.1.248 |
3306 | 0 | Down
server2 | 192.168.1.249 |
3306 | 1 | Slave,
Running
server3 | 192.168.1.250 |
3306 | 1 | Master,
Running
-------------------+-----------------+-------+-------------+--------------------
[iyunv@HE3
~]# mysql -h192.168.1.250 -P 4006 -usys_admin -pMANAGER
mysql: [Warning]
Using a password on the command line interface can be insecure.
Welcome to the MySQL
monitor. Commands end with ; or g.
Your MySQL
connection id is 28948
Server version:
5.5.5-10.0.0 2.0.1-maxscale MySQL Community Server (GPL)
Copyright (c) 2000,
2016, Oracle and/or its affiliates. All rights reserved.
Oracle is a
registered trademark of Oracle Corporation and/or its
affiliates. Other
names may be trademarks of their respective
owners.
Type 'help;' or 'h'
for help. Type 'c' to clear the current input statement.
mysql> select
@@hostname;
+------------+
| @@hostname |
+------------+
| HE2 |
+------------+
1 row in set (0.00
sec)
停掉2台slave，观察maxscale的状态
[iyunv@HE3 ~]#
maxadmin -pmariadb list servers
Servers.
-------------------+-----------------+-------+-------------+--------------------
Server | Address | Port
| Connections | Status
-------------------+-----------------+-------+-------------+--------------------
server1 | 192.168.1.248 |
3306 | 0 | Running
server2 | 192.168.1.249 |
3306 | 0 | Running
server3 | 192.168.1.250 |
3306 | 0 | Master, Stale
Status, Running
-------------------+-----------------+-------+-------------+--------------------
|
Warning:警告这里我并没有在
[MySQL Monitor]中配置detect_stale_master=true
可以看出，在maxscale2.0中，已经默认从库都停掉，也不影响
Part3:master故障
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32

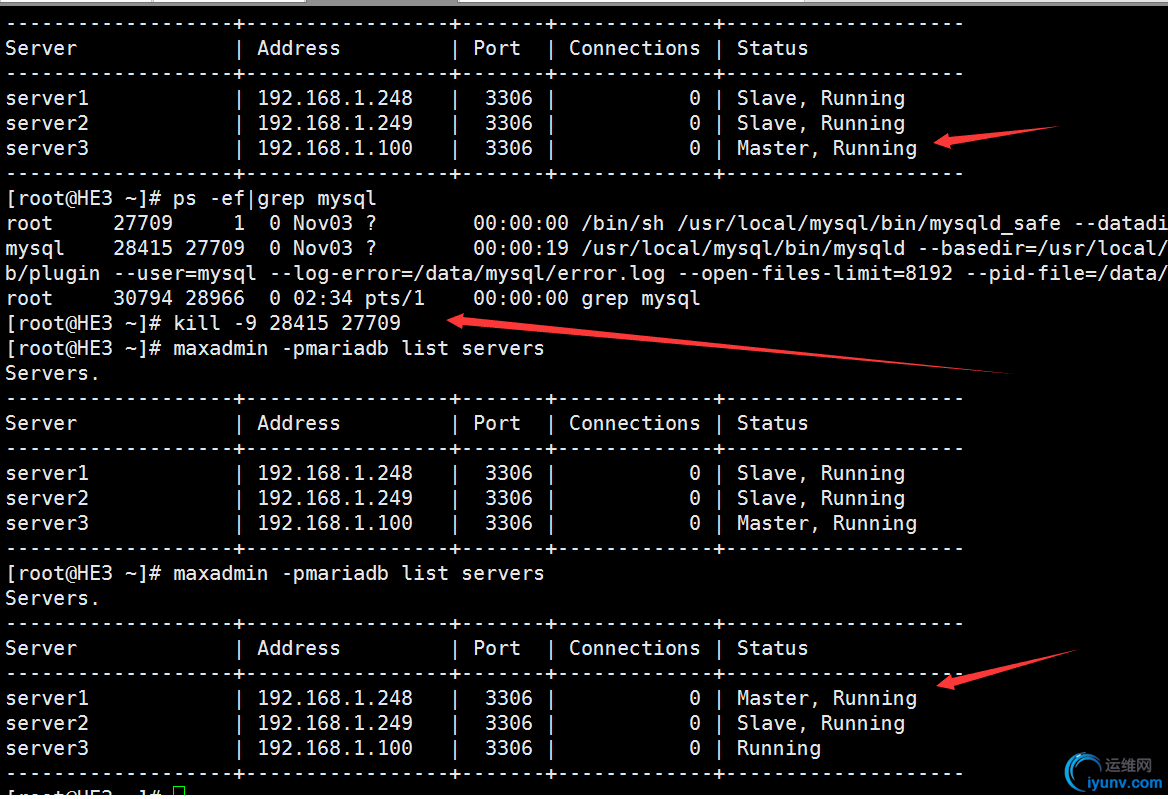

| [iyunv@HE3 ~]# maxadmin -pmariadb list servers
Servers.
-------------------+-----------------+-------+-------------+--------------------
Server | Address | Port | Connections | Status
-------------------+-----------------+-------+-------------+--------------------
server1 | 192.168.1.248 | 3306 | 0 | Slave, Running
server2 | 192.168.1.249 | 3306 | 0 | Slave, Running
server3 | 192.168.1.100 | 3306 | 0 | Master, Running
-------------------+-----------------+-------+-------------+--------------------
[iyunv@HE3 ~]# ps -ef|grep mysql
root 27709 1 0 Nov03 ? 00:00:00 /bin/sh /usr/local/mysql/bin/mysqld_safe --datadir=/data/mysql --pid-file=/data/mysql/HE3.pid
mysql 28415 27709 0 Nov03 ? 00:00:19 /usr/local/mysql/bin/mysqld --basedir=/usr/local/mysql --datadir=/data/mysql --plugin-dir=/usr/local/mysql/lib/plugin --user=mysql --log-error=/data/mysql/error.log --open-files-limit=8192 --pid-file=/data/mysql/HE3.pid --socket=/tmp/mysql.sock --port=3306
root 30794 28966 0 02:34 pts/1 00:00:00 grep mysql
[iyunv@HE3 ~]# kill -9 28415 27709
[iyunv@HE3 ~]# maxadmin -pmariadb list servers
Servers.
-------------------+-----------------+-------+-------------+--------------------
Server | Address | Port | Connections | Status
-------------------+-----------------+-------+-------------+--------------------
server1 | 192.168.1.248 | 3306 | 0 | Slave, Running
server2 | 192.168.1.249 | 3306 | 0 | Slave, Running
server3 | 192.168.1.100 | 3306 | 0 | Master, Running
-------------------+-----------------+-------+-------------+--------------------
[iyunv@HE3 ~]# maxadmin -pmariadb list servers
Servers.
-------------------+-----------------+-------+-------------+--------------------
Server | Address | Port | Connections | Status
-------------------+-----------------+-------+-------------+--------------------
server1 | 192.168.1.248 | 3306 | 0 | Master, Running
server2 | 192.168.1.249 | 3306 | 0 | Slave, Running
server3 | 192.168.1.100 | 3306 | 0 | Running
-------------------+-----------------+-------+-------------+--------------------
|
可以看出，kill master的mysql进程后，MHA将slave1拉成新的master,Maxsale也识别了这一状态。
Java Druid注意事项现象： 程序会不定时的出现连接错误，问题bug的异常信息如下： The last packet successfully received from the server was 116 milliseconds ago. The last packet sent successfully to the server was 115 milliseconds ago. java.sql.SQLException: No database selected
但通过客户端sqlyog/navicat连接均为正常。 ----------------------------------------------------------------------
另：maxscale1.4.3有时还会出现挂起现象，4006端口直接关闭。后我们用了watch命令后台跑监控。 watch -d /bin/bash /root/sh/restart_maxsacle.sh
[size=1em]1
[size=1em]2
[size=1em]3
[size=1em]4
[size=1em]5
[size=1em]6
[size=1em]7
| [size=1em]#!/bin/bash
[size=1em]netstat -ntlp | grep maxscale | grep 4006 > /dev/null 2>&1
[size=1em]if [ $? -eq 1 ];then
[size=1em]/etc/init.d/maxscale start
[size=1em]fi
|

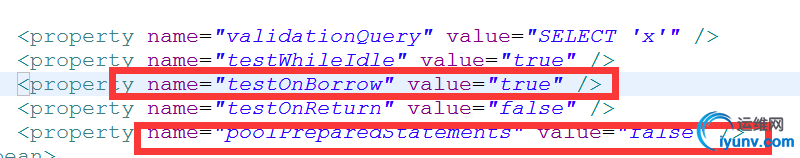

解决：5.6以下可以直接在url上配置：autoReconnect=true 对于5.6以上的只能在jdbc的链接池里设置：
第一个设置成ture,超时自动链接，对于mysql要把第二个设置成false，不启用缓存。 以上是开发需要注意的都是一些基本的配置。
其目的为：每次归还连接时执行select 'x'检测连接是否有效。
|
QQ群⑧：
窥视卡
雷达卡
发表于 2016-11-7 14:11:21
提升卡
置顶卡
沉默卡
喧嚣卡
变色卡
千斤顶
显身卡
