VMware12 安装 CentOS 6.5 64位

cheng029

　　前言：本人在配置Hadoop的过程中，需要搭建Cent OS 64 环境，借此，顺便将Cent OS 64 的安装在此记录，方便自己，也方便大家学习。本次是在VM12虚拟机中实现Cent OS 64 的安装以及配置，后续还会有Hadoop的安装配置教程，我们先来进行第一步。
　　一、VMware 12 Install CentOS 64（Linux）OS

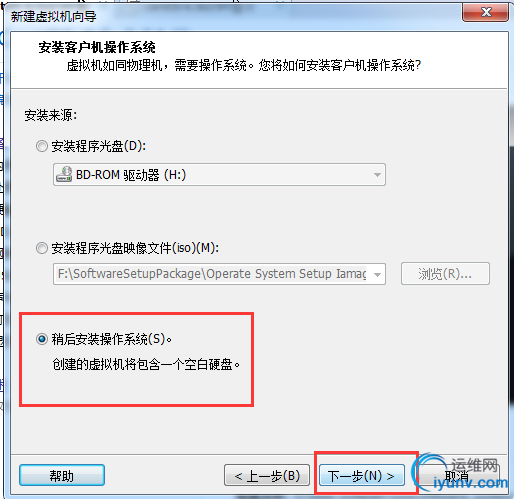

　　create a new vm->there I screenshot my settings in the next steps->

　　keep next step->

　　the os name at will，if you understand it->the position choose a folder that you like->next->

　　next as deault，my computer`s RAM is 8G so i choose 1G that default>next

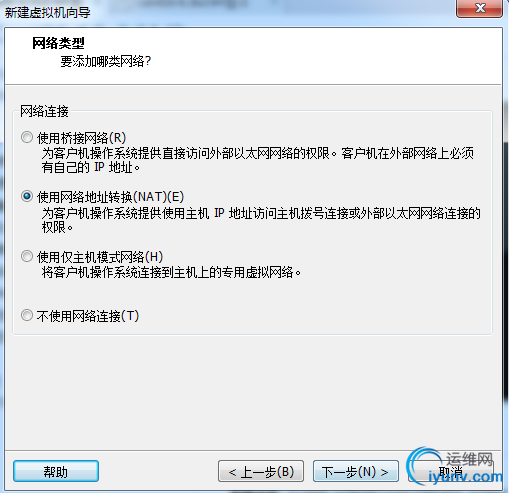

　　the net mode choose NAT，then we set IP address to connect the internet->
　　
　　steps the default->
　　there I remove the audio card and the printer that impossible use them->accomplish!
　　
　　the the vm will apper in the left list->
　　

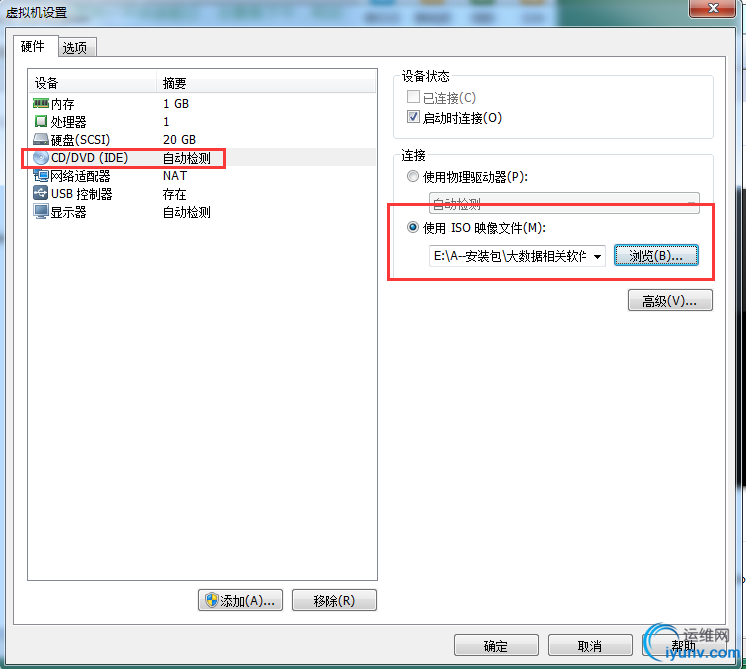

　　click the centOS 64 hadoop-master，we set the os install cd/DVD Path->
　　in the position we set the install cd/DVD ,choose the install source that we have upload CentOS64(CentOS6.5）
　　you can get the centos in the internet->

　　then we power start the vm cent os 64->
　　choose the first option install or upgrade an existing system->
　　
　　OK

　　default ok that can show the step of check disks->

　　if check complete choose OK->
　　
　　OK->Continue
　　

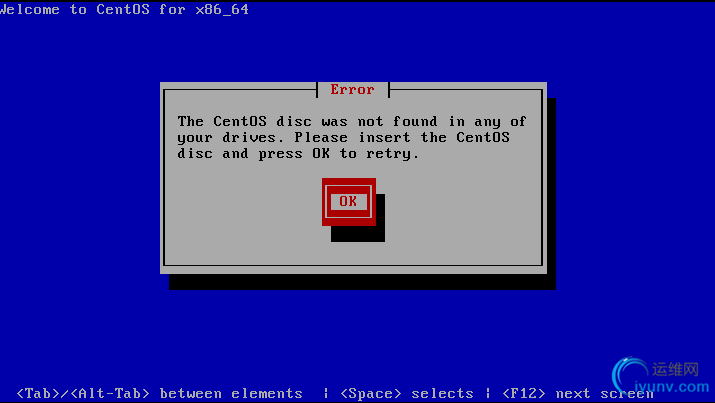

　　if have a problem below we can learn from internet that we should reboot the vm , then choose skip->
　　
　　next we reboot the system->

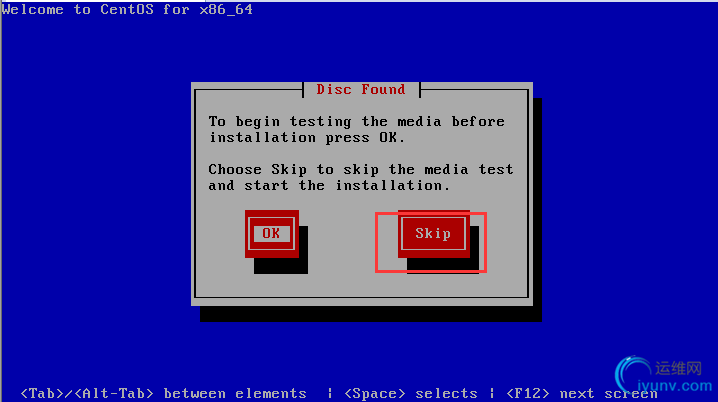

　　wait a minute show a confirm we choose skip;then it`s can found the install resource,auto install !->

　　into the view settings->

　　Choose language, there we choose English(English)->next

　　choose much next step we get there->
　　we choose Yes，discard any data->next->

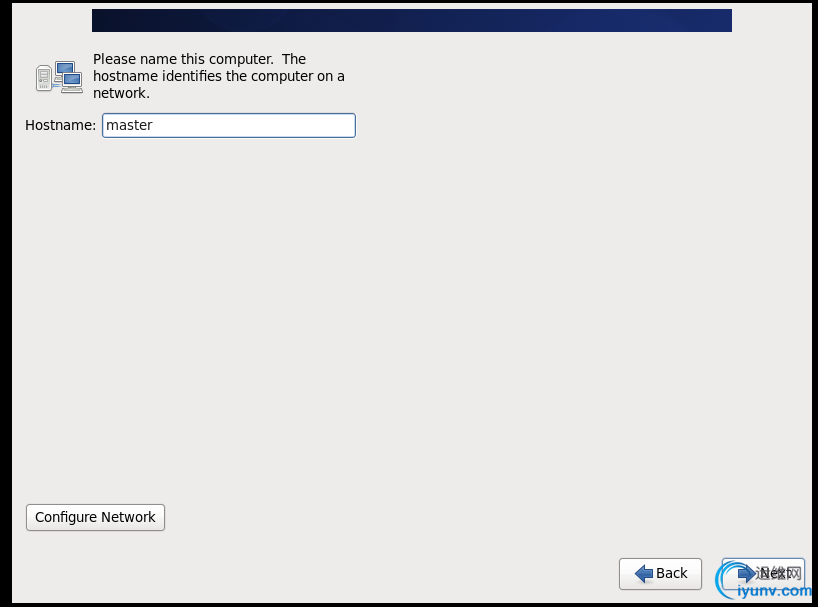

　　input HostName,i set the master as HostName->next->

　　next->
　　The position we choose ShangHai->next

　　there we must confirm the window that tell us input the password and confirm(Don`t forget that pwd)->next->

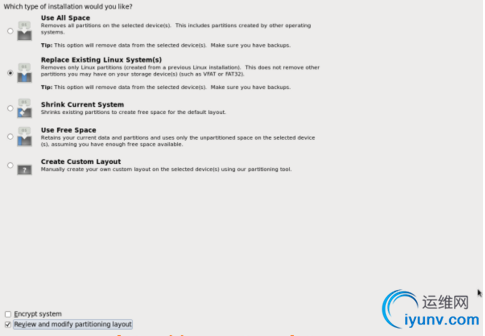

　　there we choose Replace Existing Linux System->next

　　then choose Write Changes to disk->

　　next->

　　The System will progress the install progress->
　　OK->we Reboot the system

　　oh welcom view->forward

　　Yes,I agree to the license Agreement(you known)->

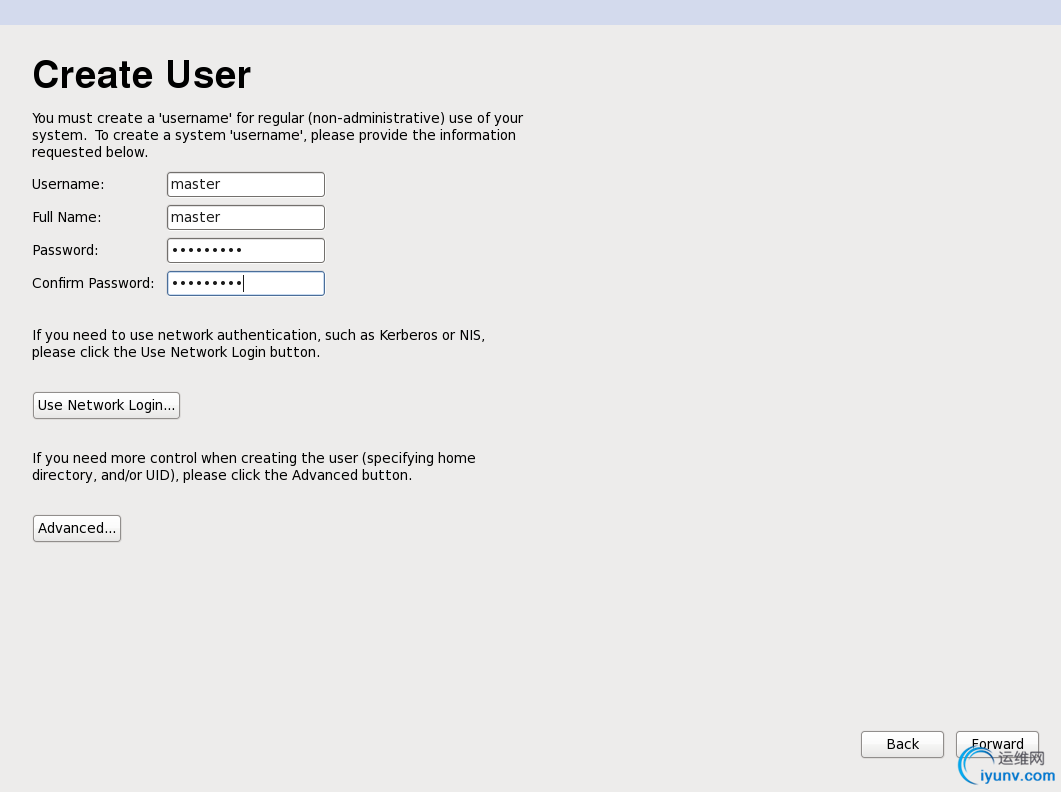

　　then input your Username and password as will you like and dont`t forget them->

　　forward

　　if you get error in the Kdump step neglect it and click finish->

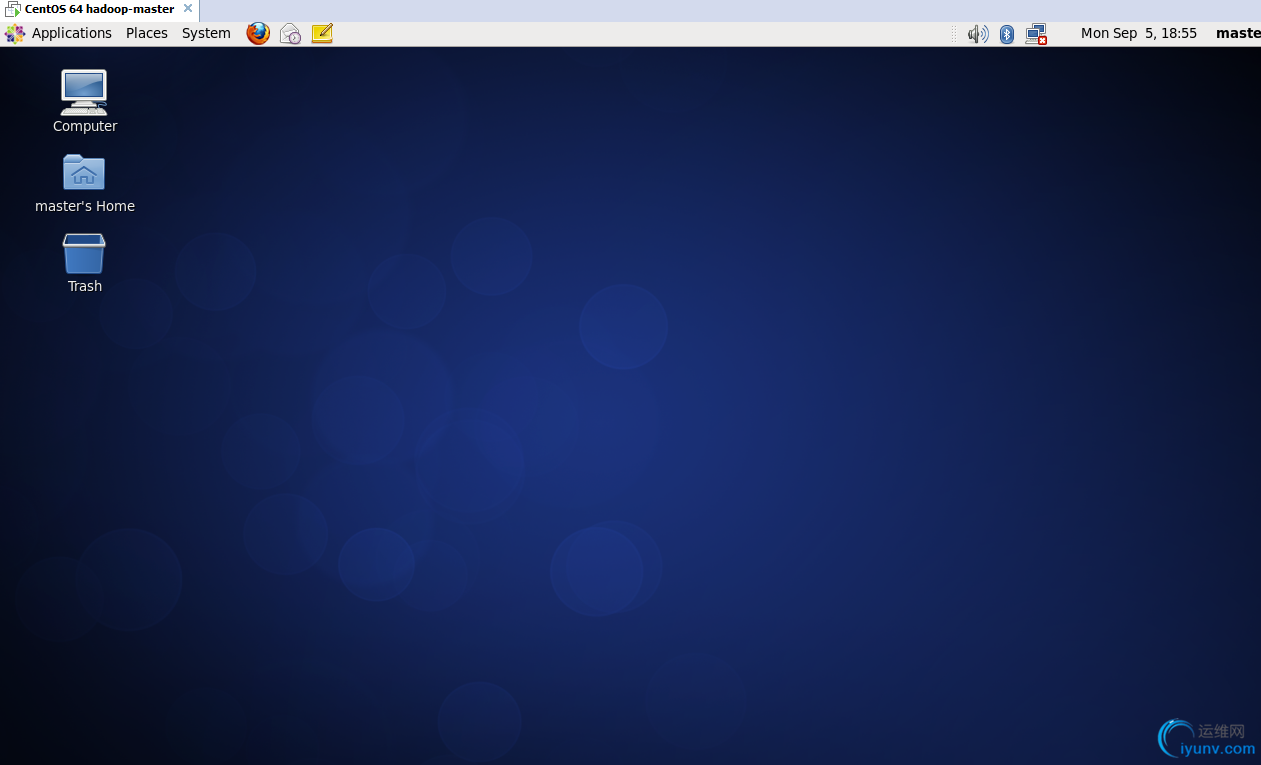

　　Then Reboot -> wait a minute we can input the password into the system CentOS->

　　OK The CentOS64`s Install is complete ！ Congratulation To you !
　　Then we set the net to the VM ->
　　choose the vpn connections -> Configure VPN->

　　Add->

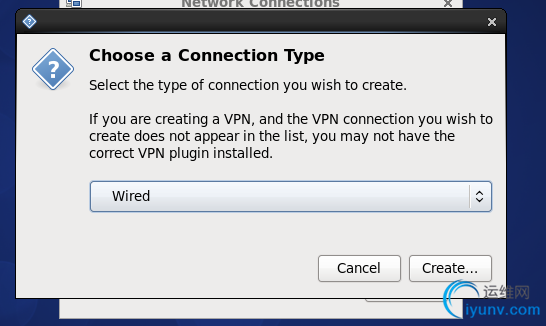

　　Create->

　　RName the connection name we named master ->

　　let find the settings options there->

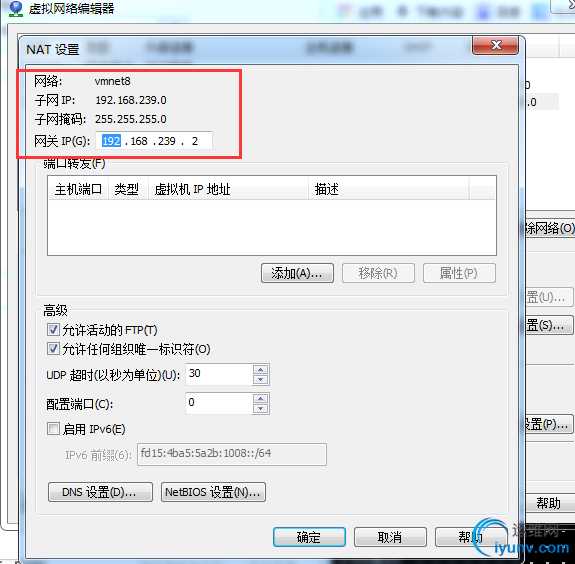

　　Then choose VMnet8->'NAT设置'->

　　We can get the Net GateWay and NetMask etc...
　　then we set the net work->

　　The Address input as will but cant repeat with other !
　　if we don`t known the DNS servers we input the chorm`s DNS 8.8.8.8;
　　then we into the vm-> set the IPv4 Settings:
　　Method:Manual(static address);
　　Address:192.168.239.128;
　　NetMask:255.255.255.0;
　　GateWay:192.168.239.2;
　　DNS server:8.8.8.8
　　Apply ->
　　You should start your VMware NAT Service if you want VM to connection the internet via conputer !

　　Then we find the network ico is have not the error ico ;

　　We can ping the host 192.168.239.1

　　you can see it`s successful !
　　let we test->start the Firfox explorer->input the url www.baidu.com->enter->

　　That you can see  the vm CentOS can surf the internet !
　　Then let we  configurate the Hadoop install and configuration !
