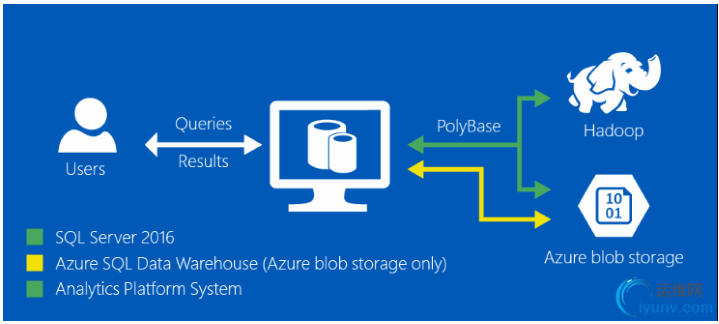

PolyBase is a technology that accesses and combines(整合) both non-relational and relational data, all from within SQL Server. It allows you to run queries on external data in Hadoop or Azure blob storage. The queries are optimized(优化) to push computation to Hadoop
目录:
feature
Performance
cale-out groups
use cases
参考资料
feature:
By simply using Transact-SQL (T-SQL) statements, you an import and export data back and forth(反复、来回) between relational tables in SQL Server and non-relational data stored in Hadoop or Azure Blob Storage. You can also query the external data from within a T-SQL query and join it with relational data
Query data stored in Hadoop: Users are storing data in cost-effective distributed and scalable systems(可伸缩系统), such as Hadoop. PolyBase makes it easy to query the data by using T-SQL
Query data stored in Azure blob storage: Azure blob storage is a convenient(方便) place to store data for use by Azure services. PolyBase makes it easy to access the data by using T-SQL.
Import data from Hadoop or Azure blob storage: Leverage the speed of Microsoft SQL's columnstore technology and analysis capabilities by importing data from Hadoop or Azure blob storage into relational tables. There is no need for a separate ETL or import tool
Export data to Hadoop or Azure blob storage: Archive data to Hadoop or Azure blob storage to achieve cost-effective storage and keep it online for easy access
Integrate with BI tools:Use PolyBase with Microsoft’s business intelligence and analysis stack, or use any third party tools that is compatible with SQL Server
Performance:
Push computation to Hadoop:The query optimizer (查询优化器)makes a cost-based decision to push computation to Hadoop when doing so will improve query performance. It uses statistics on external tables to make the cost-based decision. Pushing computation creates MapReduce jobs and leverages Hadoop's distributed computational resources.

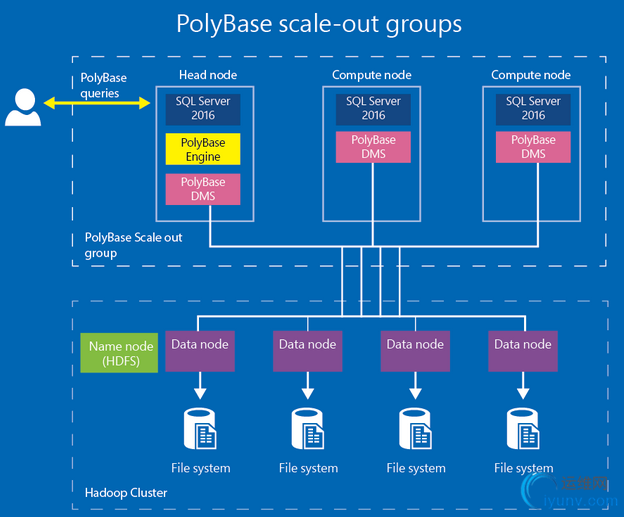

Scale compute resources:To improve query performance, you can use SQL Server PolyBase scale-out groups. This enables parallel data transfer between SQL Server instances and Hadoop nodes, and it adds compute resources for operating on the external data
headnode: The head node contains the SQL Server instance to which PolyBase queries are submitted. Each PolyBase group can have only one head node. A head node is a logical group of SQL Database Engine, PolyBase Engine and PolyBase Data Movement Service on the SQL Server instance
Compute node:A compute node contains the SQL Server instance that assists with(帮助) scale-out query processing on external data. A compute node is a logical group of SQL Server and the PolyBase data movement service on the SQL Server instance. A PolyBase group can have multiple compute nodes
Distributed query processing:
PolyBase queries are submitted to the SQL Server on the head node. The part of the query that refers to external tables is handed-off (移交)to the PolyBase engine
The PolyBase engine is the key component behind PolyBase queries. It parses the query on external data, generates the query plan and distributes the work to the data movement service on the compute nodes for execution. After completion of the work, it receives the results from the compute nodes and submits them to SQL Server for processing and returning to the client
The PolyBase data movement service receives instructions(指令) from the PolyBase engine and transfers data between HDFS and SQL Server, and between SQL Server instances on the head and compute nodes
Editions availability:
After setup of SQL Server, the instance can be designated(指定) as either a head node or a compute node.
The choice depends on which version of SQL Server PolyBase is running on.
On an Enterprise edition installation, the instance can be designated either as head node or a compute node.
On a Standard edition, the instance can only be designated as a compute node
use cases

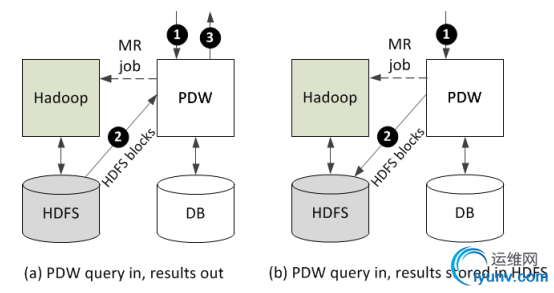

polybase primary use cases 如下图:
(a) query submitted to PDW requires “unstructured” data from Hadoop for its execution. This might be as simple as a scan whose input is an HDFS file or a join between a file in HDFS and a table in PDW. The output in this case flows back to the user or application program that submitted the query
(b) is similar except that the output of the query is materialized as an output file in HDFS, where it might be consumed by either a subsequent PDW query or by a MapReduce job. Polybase, when appropriate,will translate operations on HDFS-resident data into MapReduce jobs and push those jobs to Hadoop for execution in order to minimize the data imported from HDFS into PDW and maximize the use of Hadoop cluster resources. With Hadoop 2.0 we envision supporting a variety of techniques for processing joins that involve HDFS and PDW resident tables, including, for example, the use of semi-join techniques.
