Nagios检测一些记序

zidong

检测命令篇：
文中内容包括：序述nagios从发现主机到web界面显示出状态再到邮件报警的整个过程。方面以后进行排错，还有如何编写特定应用的特定检测程序。
煮酒品茶：文章需要改进的有如何做触发报警的条件，警告等。

服务和主机配置文件中的“check_command           check-host-alive”是什么意思呢？

[iyunv@weihack objects]# pwd
/usr/local/nagios/etc/objects
[iyunv@weihack objects]# cat commands.cfg #发现这么一项：

define command{        command_name    check-host-alive         command_line    $USER1$/check_ping -H $HOSTADDRESS$ -w 3000.0,80% -c 5000.0,100% -p 5         }

看看命令行：$USER1$/check_ping -H $HOSTADDRESS$ -w 3000.0,80% -c 5000.0,100% -p 5
[iyunv@weihack libexec]# pwd
/usr/local/nagios/libexec
[iyunv@weihack libexec]# ./check_ping -H 192.168.100.85 -w 3000.0,80% -c 5000.0,100% -p 5
PING OK - Packet loss = 0%, RTA = 0.05 ms|rta=0.055000ms;3000.000000;5000.000000;0.000000 pl=0%;80;100;0
# Web界面 Status Information 里面是不是出现了PING OK - Packet loss = 0%, RTA = 0.05 ms这样的东东。
# -h 使用方法都出来了，由此我们可以看出。ping 192.168.100.85 3000警告，5000直接报警。目前为0.055ms 发送五个包。那很很清晰了。

[iyunv@weihack libexec]# ./check_ping -hUse ping to check connection statistics for a remote host. Usage:check_ping -H <host_address> -w <wrta>,<wpl>% -c <crta>,<cpl>% [-p packets] [-t timeout] [-4|-6] Options: -h, --help     Print detailed help screen -V, --version     Print version information -4, --use-ipv4     Use IPv4 connection -6, --use-ipv6     Use IPv6 connection -H, --hostname=HOST     host to ping -w, --warning=THRESHOLD     warning threshold pair -c, --critical=THRESHOLD     critical threshold pair -p, --packets=INTEGER     number of ICMP ECHO packets to send (Default: 5) -L, --link     show HTML in the plugin output (obsoleted by urlize) -t, --timeout=INTEGER     Seconds before connection times out (default: 10)

# 倒底有多少个这样的定义的命令的？

[iyunv@weihack objects]# cat commands.cfg |grep command_name        command_name        notify-host-by-email         command_name        notify-service-by-email         command_name    check-host-alive         command_name    check_local_disk         command_name    check_local_load         command_name    check_local_procs         command_name    check_local_users         command_name        check_local_swap         command_name        check_local_mrtgtraf         command_name    check_ftp         command_name    check_hpjd         command_name    check_snmp         command_name    check_http         command_name        check_ssh         command_name        check_dhcp         command_name    check_ping         command_name    check_pop         command_name    check_imap         command_name    check_smtp         command_name        check_tcp         command_name        check_udp         command_name        check_nt         command_name        process-host-perfdata         command_name        process-service-perfdata

#挑一条notify-host-by-email，可以清楚的看到发送邮件的过程。

define command{        command_name    notify-host-by-email         command_line    /usr/bin/printf "%b" "***** Nagios *****\n\nNotification Type: $NOTIFICATIONTYPE$\nHost: $HOSTNAME$\nState: $HOSTSTATE$\nAddress: $HOSTADDRESS$\nInfo: $HOSTOUTPUT$\n\nDate/Time: $LONGDATETIME$\n" | /bin/mail -s "** $NOTIFICATIONTYPE$ Host Alert: $HOSTNAME$ is $HOSTSTATE$ **" $CONTACTEMAIL$         }

#打散开来看，是不是可以定制邮件发送格式了？

/usr/bin/printf "%b" "***** Nagios *****\n\nNotification Type: $NOTIFICATIONTYPE$\n Host: $HOSTNAME$\nState: $HOSTSTATE$\n Address: $HOSTADDRESS$\n Info: $HOSTOUTPUT$\n\n Date/Time: $LONGDATETIME$\n " | /bin/mail -s "** $NOTIFICATIONTYPE$ Host Alert: $HOSTNAME$ is $HOSTSTATE$ **" $CONTACTEMAIL$

#到手的邮件是这样子的。

主　题：        ** RECOVERY Host Alert: rsync-89 is UP **   [新窗口打开]时　间：         2013-03-13 22:57 (星期三) 发件人：        nagios<nagios@phx2-ss-5-lb.cnet.com>   [添加联系人]  [邮件往来]  [拒收] 收件人：         我<zwhset@163.com>                **** Nagios ***** Notification Type: RECOVERY Host: rsync-89 State: UP Address: 192.168.100.89 Info: PING OK - Packet loss = 0%, RTA = 0.32 ms Date/Time: Wed Mar 13 22:57:44 CST 2013

#那我们加一个监控服务，看看全程如何工作的。查看端口22是否保持链接。check_tcp，我们先看看用法。

[iyunv@weihack libexec]# ./check_tcp -hUsage:check_tcp -H host -p port [-w <warning time>] [-c <critical time>] [-s <send string>] [-e <expect string>] [-q <quit string>][-m <maximum bytes>] [-d <delay>] [-t <timeout seconds>] [-r <refuse state>] [-M <mismatch state>] [-v] [-4|-6] [-j] [-D <days to cert expiry>] [-S <use SSL>] [-E] Options: -h, --help     Print detailed help screen -V, --version     Print version information -H, --hostname=ADDRESS     Host name, IP Address, or unix socket (must be an absolute path) -p, --port=INTEGER     Port number (default: none) -4, --use-ipv4     Use IPv4 connection -6, --use-ipv6     Use IPv6 connection -E, --escape     Can use \n, \r, \t or \ in send or quit string. Must come before send or quit option     Default: nothing added to send, \r\n added to end of quit -s, --send=STRING     String to send to the server -e, --expect=STRING     String to expect in server response (may be repeated) -A, --all     All expect strings need to occur in server response. Default is any -q, --quit=STRING     String to send server to initiate a clean close of the connection -r, --refuse=ok|warn|crit     Accept TCP refusals with states ok, warn, crit (default: crit) -M, --mismatch=ok|warn|crit     Accept expected string mismatches with states ok, warn, crit (default: warn) -j, --jail     Hide output from TCP socket -m, --maxbytes=INTEGER     Close connection once more than this number of bytes are received -d, --delay=INTEGER     Seconds to wait between sending string and polling for response -w, --warning=DOUBLE     Response time to result in warning status (seconds) -c, --critical=DOUBLE     Response time to result in critical status (seconds) -t, --timeout=INTEGER     Seconds before connection times out (default: 10) -v, --verbose     Show details for command-line debugging (Nagios may truncate output)

#这似乎是具体方法，让我们看看command里定义的。

define command{        command_name    check_tcp         command_line    $USER1$/check_tcp -H $HOSTADDRESS$ -p $ARG1$ $ARG2$         }

#对照上表-H 主机地址，-p 端口 接受参数1 2
#我找不到定义的文件在哪呢，$USER1$是路径也就是/usr/local/nagios/libexec,后面三个也一样。那么可构造 check_tcp 22，$ARG1$ $ARG2$用!号隔开。$USER1$的定义在文件：
[iyunv@weihack objects]# cat /usr/local/nagios/etc/resource.cfg |grep USER1

# Nagios supports up to 32 $USERx$ macros ($USER1$ through $USER32$)# Sets $USER1$ to be the path to the plugins $USER1$=/usr/local/nagios/libexec

我们添加服务

[iyunv@weihack objects]# vim services.cfg define service {         host_name        rsync-89         service_description   check_tcp 80         check_period          24x7         max_check_attempts    4         normal_check_interval 3         retry_check_interval  2         contact_groups        ktm         notification_interval   10         notification_period     24x7         notification_options    w,u,c,r         check_command           check_tcp!80         }

#验证下并滑溜运行程序。
[iyunv@weihack objects]# /usr/local/nagios/bin/nagios -v /usr/local/nagios/etc/nagios.cfg
[iyunv@weihack nagios]# kill -Hup 8670
#运行成功，那我们想自由自在的构造一些检测，如何实现?做个实验.
#check_ping 主要输出这些：PING OK - Packet loss = 0%, RTA = 0.06 ms|rta=0.061000ms;3000.000000;5000.000000;0.000000 pl=0%;80;90;0

[iyunv@weihack libexec]# cat /test/passwd |wc -l25

#假设有用户则显示用户数，无用户为空则报警。如何设计？
[iyunv@weihack libexec]# touch /test/passwda
[iyunv@weihack libexec]# cat check_user

#check_user_nagios  cwtea#blog: cwtea.blog. cu=`cat /test/passwda |wc -l` if [ $cu -ne 0 ]; then         echo "User OK - User is running (UserNumber: ${cu})"         else         echo "User CRITICAL,"User is none"" fi

[iyunv@weihack libexec]# ./check_user

User CRITICAL,User is none

[iyunv@weihack libexec]# ./check_user

User OK - User is running (UserNumber: 25)

#添加一个定义check_user
[iyunv@weihack objects]# vim commands.cfg

#check userdefine command{         command_name    check_user         command_line    $USER1$/check_user         }

#添加一项服务
[iyunv@weihack objects]# vim services.cfg

define service {        host_name        rsync-89         service_description   check_user         check_period          24x7         max_check_attempts    4         normal_check_interval 3         retry_check_interval  2         contact_groups        ktm         notification_interval   10         notification_period     24x7         notification_options    w,u,c,r         check_command           check_user         }

#kill -Hup 23377

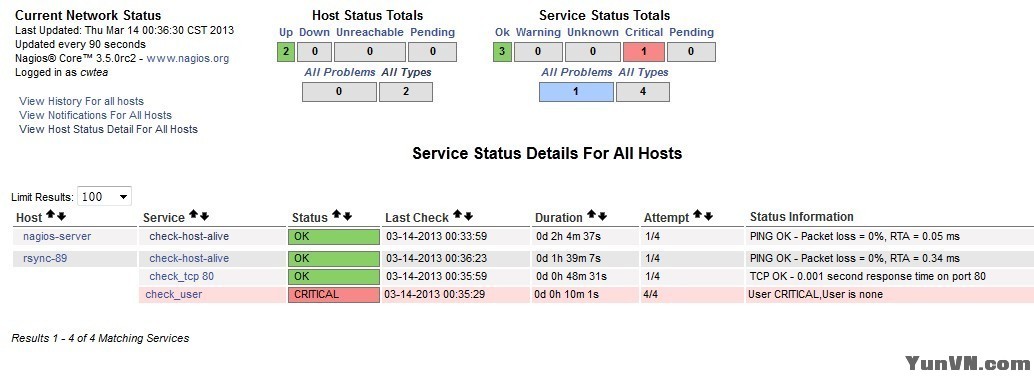

#web界面看看，已经出现了。

#我们把文件弄成空的。
[iyunv@weihack objects]# rm -rf /test/passwd
[iyunv@weihack objects]# touch /test/passwd
#状态显示是OK的，但是信息栏已经出现了我们想要的。
check_user        OK         03-14-2013 00:20:29         0d 0h 3m 25s         1/4         User CRITICAL,User is none
#我们加个返回状态码 exit 2
[iyunv@weihack libexec]# cat check_user

#check_user_nagios  cwtea#blog: cwtea.blog. cu=`cat /test/passwd |wc -l` if [ $cu -ne 0 ]; then         echo "User OK - User is running (UserNumber: ${cu})"         else         echo "User CRITICAL,"User is none""         exit 2 fi

#过会儿，再看已经down掉了。

#邮件报警等了好久才来

主　题：         ** PROBLEM Service Alert: rsync 89/check_user is CRITICAL **   [新窗口打开]时　间：         2013-03-14 00:32 (星期四) 发件人：         nagios<nagios@phx2-ss-5-lb.cnet.com>   [添加联系人]  [邮件往来]  [拒收] 收件人：         我<zwhset@163.com> ***** Nagios ***** Notification Type: PROBLEM Service: check_user Host: rsync 89 Address: 192.168.100.89 State: CRITICAL Date/Time: Thu Mar 14 00:32:39 CST 2013 Additional Info: User CRITICAL,User is none
