OpenStack入门修炼之实战

xsmscb

1.给两台虚拟机增加网卡，使用仅主机模式，网段为：192.168.57.0/24

2.修改两台主机网卡配置

[root@linux-node1 ~]# cp /etc/sysconfig/network-scripts/ifcfg-eth0 /etc/sysconfig/network-scripts/ifcfg-eth1
[root@linux-node1 ~]# vim /etc/sysconfig/network-scripts/ifcfg-eth1
TYPE=Ethernet
BOOTPROTO=static
NAME=eth1
DEVICE=eth1
ONBOOT=yes
IPADDR=192.168.57.11
NETMASK=255.255.255.0
[root@linux-node1 ~]# systemctl restart network
[root@linux-node2 ~]# cp /etc/sysconfig/network-scripts/ifcfg-eth0 /etc/sysconfig/network-scripts/ifcfg-eth1
[root@linux-node2 ~]# vim /etc/sysconfig/network-scripts/ifcfg-eth1
TYPE=Ethernet
BOOTPROTO=static
NAME=eth1
DEVICE=eth1
ONBOOT=yes
IPADDR=192.168.57.12
NETMASK=255.255.255.0
[root@linux-node2 ~]# systemctl restart network

3.修改桥接网络配置

[root@linux-node1 ~]# vim /etc/neutron/plugins/ml2/linuxbridge_agent.ini
physical_interface_mappings = public:eth0,internal:eth1
public:公网   internal:私网
[root@linux-node1 ~]# source admin-openstack
[root@linux-node1 ~]# openstack endpoint list

4.修改ml2的配置

[root@linux-node1 ~]# vim /etc/neutron/plugins/ml2/ml2_conf.ini
flat_network：单一扁平网络
flat_network = public,internal
[root@linux-node1 ~]# systemctl restart neutron-server
[root@linux-node1 ~]# systemctl restart neutron-linuxbridge-agent

5.计算节点：linux-node2一样配置/etc/neutron/plugins/ml2/linuxbridge_agent.ini

physical_interface_mappings = public:eth0,internal:eth1
[root@linux-node2 ~]# systemctl restart neutron-linuxbridge-agent

6.创建网络

[root@linux-node1 ~]# source admin-openstack
[root@linux-node1 ~]# openstack network create --share \
--provider-physical-network internal \
--provider-network-type flat internal  <--网络名称
[root@linux-node1 ~]# openstack subnet create --network internal \
--allocation-pool start=192.168.57.100,end=192.168.57.200
--dns-nameserver 192.168.56.2 --gateway 192.168.57.2 \
--subnet-range 192.168.57.0/24 internal-subnet

7.dashboard查看并创建云主机

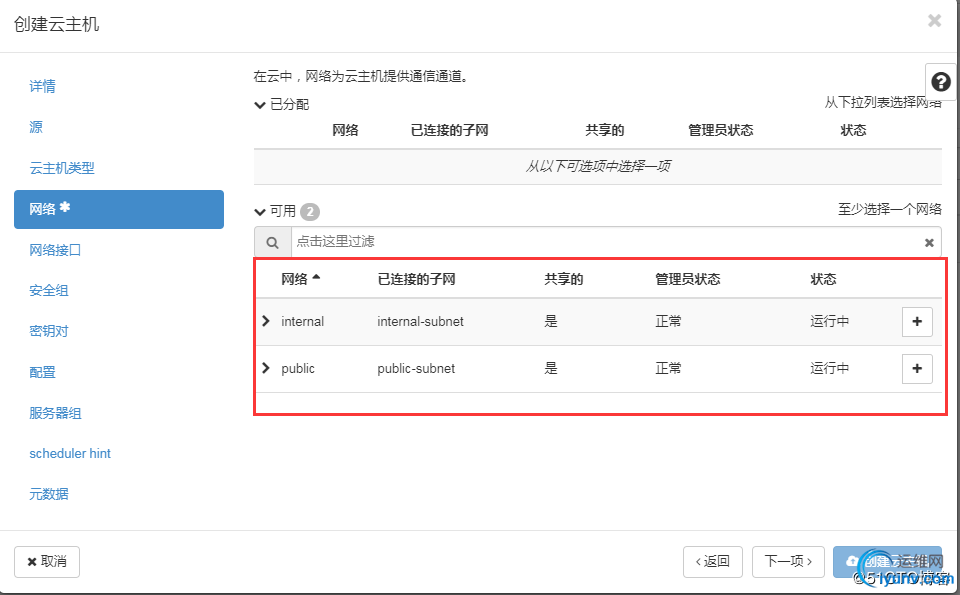

　　在创建云主机时即可选择网络，如图：

　　实现阿里云的FLAT网络（经典网络）一个公网ip，一个私网ip，如图：

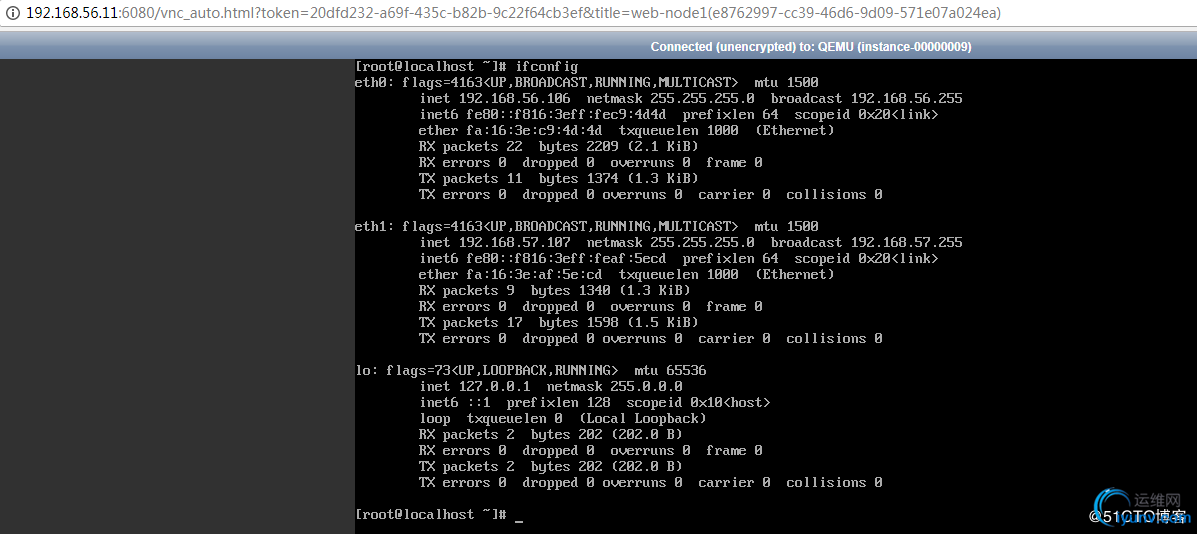

　　VNC查看：
