openstack nova 源码分析4

坏气十足 · 发表于 2018-6-2 14:08:55

　　还是有许多地方可能错了希望大婶们看见给予意见！
　　这个文件位于\nova\virt，是一个底层的driver.py,源代码如下（和以前一样添加了些注释，另外把我觉得比较重要的computerDriver类列出来了，并将下面的每个函数分离加以注释《见下面图片》！我看见后面好多函数都是继承的ComputerDriver比如nova\virt\libvirt下面的connection.py里面的class LibvirtConnection(driver.ComputeDriver):）：

"""
Driver base-classes:
(Beginning of) the contract that compute drivers must follow, and shared
types that support that contract
"""
from nova.compute import power_state
class InstanceInfo(object):
def __init__(self, name, state):
self.name = name
assert state in power_state.valid_states(), "Bad state: %s" % state
self.state = state
def block_device_info_get_root(block_device_info):
block_device_info = block_device_info or {}
return block_device_info.get('root_device_name')
def block_device_info_get_swap(block_device_info):
block_device_info = block_device_info or {}
return block_device_info.get('swap') or {'device_name': None,
'swap_size': 0}
def swap_is_usable(swap):
return swap and swap['device_name'] and swap['swap_size'] > 0
def block_device_info_get_ephemerals(block_device_info):
block_device_info = block_device_info or {}
ephemerals = block_device_info.get('ephemerals') or []
return ephemerals
def block_device_info_get_mapping(block_device_info):
block_device_info = block_device_info or {}
block_device_mapping = block_device_info.get('block_device_mapping') or []
return block_device_mapping
class ComputeDriver(object):
"""Base class for compute drivers.
The interface to this class talks in terms of 'instances' (Amazon EC2 and
internal Nova terminology), by which we mean 'running virtual machine'
(XenAPI terminology) or domain (Xen or libvirt terminology).
An instance has an ID, which is the identifier chosen by Nova to represent
the instance further up the stack. This is unfortunately also called a
'name' elsewhere. As far as this layer is concerned, 'instance ID' and
'instance name' are synonyms.
Note that the instance ID or name is not human-readable or
customer-controlled -- it's an internal ID chosen by Nova. At the
nova.virt layer, instances do not have human-readable names at all -- such
things are only known higher up the stack.
Most virtualization platforms will also have their own identity schemes,
to uniquely identify a VM or domain. These IDs must stay internal to the
platform-specific layer, and never escape the connection interface. The
platform-specific layer is responsible for keeping track of which instance
ID maps to which platform-specific ID, and vice versa.
In contrast, the list_disks and list_interfaces calls may return
platform-specific IDs. These identify a specific virtual disk or specific
virtual network interface, and these IDs are opaque to the rest of Nova.
Some methods here take an instance of nova.compute.service.Instance. This
is the datastructure used by nova.compute to store details regarding an
instance, and pass them into this layer. This layer is responsible for
translating that generic datastructure into terms that are specific to the
virtualization platform.
"""

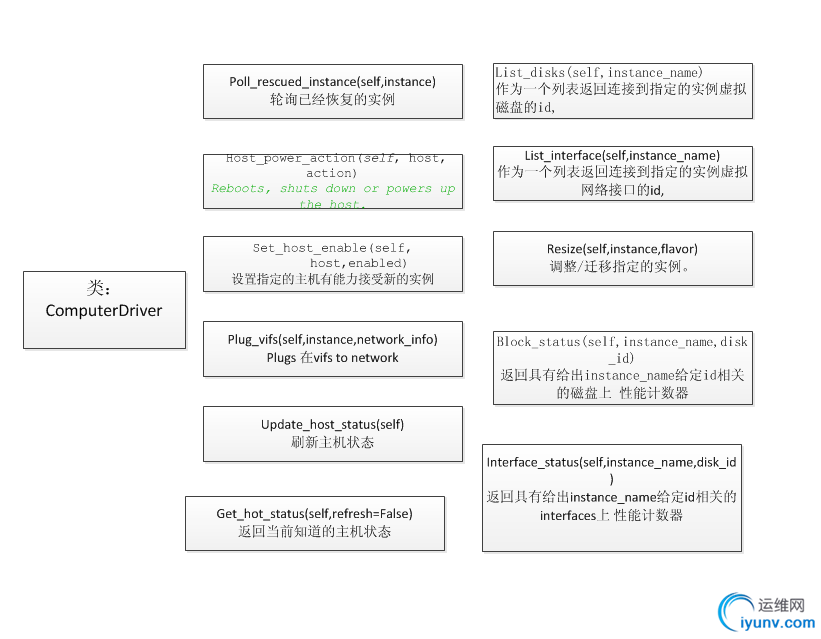

#此处为了让大家看的明白将 ComputerDriver的类图列出来
def init_host(self, host):
"""Initialize anything that is necessary for the driver to function,
including catching up with currently running VM's on the given host."""
# TODO(Vek): Need to pass context in for access to auth_token
raise NotImplementedError()
def get_info(self, instance_name):
"""Get the current status of an instance, by name (not ID!)
Returns a dict containing:
:state: the running state, one of the power_state codes
:max_mem: (int) the maximum memory in KBytes allowed
:mem: (int) the memory in KBytes used by the domain
:num_cpu: (int) the number of virtual CPUs for the domain
:cpu_time: (int) the CPU time used in nanoseconds
"""
# TODO(Vek): Need to pass context in for access to auth_token
raise NotImplementedError()
def list_instances(self):
"""
Return the names of all the instances known to the virtualization
layer, as a list.
"""
# TODO(Vek): Need to pass context in for access to auth_token
raise NotImplementedError()
def list_instances_detail(self):
"""Return a list of InstanceInfo for all registered VMs"""
# TODO(Vek): Need to pass context in for access to auth_token
raise NotImplementedError()
def spawn(self, context, instance,
network_info=None, block_device_info=None):
"""
Create a new instance/VM/domain on the virtualization platform.
Once this successfully completes, the instance should be
running (power_state.RUNNING).
If this fails, any partial instance should be completely
cleaned up, and the virtualization platform should be in the state
that it was before this call began.
:param context: security context
:param instance: Instance object as returned by DB layer.
This function should use the data there to guide
the creation of the new instance.
:param network_info:
:py:meth:`~nova.network.manager.NetworkManager.get_instance_nw_info`
:param block_device_info:
"""
raise NotImplementedError()
def destroy(self, instance, network_info, cleanup=True):
"""Destroy (shutdown and delete) the specified instance.
If the instance is not found (for example if networking failed), this
function should still succeed. It's probably a good idea to log a
warning in that case.
:param instance: Instance object as returned by DB layer.
:param network_info:
:py:meth:`~nova.network.manager.NetworkManager.get_instance_nw_info`
:param cleanup:
"""
# TODO(Vek): Need to pass context in for access to auth_token
raise NotImplementedError()
def reboot(self, instance, network_info):
"""Reboot the specified instance.
:param instance: Instance object as returned by DB layer.
:param network_info:
:py:meth:`~nova.network.manager.NetworkManager.get_instance_nw_info`
"""
# TODO(Vek): Need to pass context in for access to auth_token
raise NotImplementedError()
def snapshot_instance(self, context, instance_id, image_id):
raise NotImplementedError()
def get_console_pool_info(self, console_type):
# TODO(Vek): Need to pass context in for access to auth_token
raise NotImplementedError()
def get_console_output(self, instance):
# TODO(Vek): Need to pass context in for access to auth_token
raise NotImplementedError()
def get_ajax_console(self, instance):
# TODO(Vek): Need to pass context in for access to auth_token
raise NotImplementedError()
def get_diagnostics(self, instance):
"""Return data about VM diagnostics"""
# TODO(Vek): Need to pass context in for access to auth_token
raise NotImplementedError()
def get_host_ip_addr(self):
"""
Retrieves the IP address of the dom0
"""
# TODO(Vek): Need to pass context in for access to auth_token
raise NotImplementedError()
def attach_volume(self, context, instance_id, volume_id, mountpoint):
"""Attach the disk at device_path to the instance at mountpoint"""
raise NotImplementedError()
def detach_volume(self, context, instance_id, volume_id):
"""Detach the disk attached to the instance at mountpoint"""
raise NotImplementedError()
def compare_cpu(self, cpu_info):
"""Compares given cpu info against host 确保vm能运行
Before attempting to migrate a VM to this host,
compare_cpu is called to ensure that the VM will
actually run here.
:param cpu_info: (str) JSON structure describing the source CPU.
:returns: None if migration is acceptable
:raises: :py:class:`~nova.exception.InvalidCPUInfo` if migration
is not acceptable.
"""
raise NotImplementedError()
def migrate_disk_and_power_off(self, instance, dest):
"""
Transfers the disk of a running instance in multiple phases, turning
off the instance before the end.
"""
# TODO(Vek): Need to pass context in for access to auth_token
raise NotImplementedError()
def snapshot(self, context, instance, image_id):
"""
Snapshots the specified instance.
:param context: security context
:param instance: Instance object as returned by DB layer.
:param image_id: Reference to a pre-created image that will
hold the snapshot.
"""
raise NotImplementedError()
def finish_migration(self, context, instance, disk_info, network_info,
resize_instance):
#打开一个迁移的实例，完成一个调整
"""Completes a resize, turning on the migrated instance
:param network_info:
:py:meth:`~nova.network.manager.NetworkManager.get_instance_nw_info`
"""
raise NotImplementedError()
def revert_migration(self, instance):
#返回一个调整，推动回到实例？
"""Reverts a resize, powering back on the instance"""
# TODO(Vek): Need to pass context in for access to auth_token
raise NotImplementedError()
def pause(self, instance, callback):
"""Pause the specified instance."""
# TODO(Vek): Need to pass context in for access to auth_token
raise NotImplementedError()
def unpause(self, instance, callback):
"""Unpause paused VM instance"""
# TODO(Vek): Need to pass context in for access to auth_token
raise NotImplementedError()
def suspend(self, instance, callback):
# 挂起指定的实例
"""suspend the specified instance"""
# TODO(Vek): Need to pass context in for access to auth_token
raise NotImplementedError()
def resume(self, instance, callback):
"""resume the specified instance"""
# TODO(Vek): Need to pass context in for access to auth_token
raise NotImplementedError()
def rescue(self, context, instance, callback, network_info):
#恢复指定的实例
"""Rescue the specified instance"""
raise NotImplementedError()
def unrescue(self, instance, callback, network_info):
"""Unrescue the specified instance"""
# TODO(Vek): Need to pass context in for access to auth_token
raise NotImplementedError()
def update_available_resource(self, ctxt, host):
#在computeNode表中更新电脑资源管理的信息
"""Updates compute manager resource info on ComputeNode table.
This method is called when nova-compute launches, and
whenever admin executes "nova-manage service update_resource".
:param ctxt: security context
:param host: hostname that compute manager is currently running
"""
# TODO(Vek): Need to pass context in for access to auth_token
raise NotImplementedError()
def live_migration(self, ctxt, instance_ref, dest,
post_method, recover_method):
#分发处理高负荷，当有高负荷操作时候，大量生成 live_mirgration
"""Spawning live_migration operation for distributing high-load.
:param ctxt: security context
:param instance_ref:
nova.db.sqlalchemy.models.Instance object
instance object that is migrated.
:param dest: destination host
:param post_method:
post operation method.
expected nova.compute.manager.post_live_migration.
:param recover_method:
recovery method when any exception occurs.
expected nova.compute.manager.recover_live_migration.
"""
# TODO(Vek): Need to pass context in for access to auth_token
raise NotImplementedError()
def refresh_security_group_rules(self, security_group_id):
#改变安全组之后调用
"""This method is called after a change to security groups.
All security groups and their associated rules live in the datastore,
and calling this method should apply the updated rules to instances
running the specified security group.
An error should be raised if the operation cannot complete.
"""
# TODO(Vek): Need to pass context in for access to auth_token
raise NotImplementedError()
def refresh_security_group_members(self, security_group_id):
#当一个安全组被添加到一个实例，这个方法被调用
"""This method is called when a security group is added to an instance.
This message is sent to the virtualization drivers on hosts that are
running an instance that belongs to a security group that has a rule
that references the security group identified by `security_group_id`.
It is the responsiblity of this method to make sure any rules
that authorize traffic flow with members of the security group are
updated and any new members can communicate, and any removed members
cannot.
Scenario:
* we are running on host 'H0' and we have an instance 'i-0'.
* instance 'i-0' is a member of security group 'speaks-b'
* group 'speaks-b' has an ingress rule that authorizes group 'b'
* another host 'H1' runs an instance 'i-1'
* instance 'i-1' is a member of security group 'b'
When 'i-1' launches or terminates we will recieve the message
to update members of group 'b', at which time we will make
any changes needed to the rules for instance 'i-0' to allow
or deny traffic coming from 'i-1', depending on if it is being
added or removed from the group.
In this scenario, 'i-1' could just as easily have been running on our
host 'H0' and this method would still have been called. The point was
that this method isn't called on the host where instances of that
group are running (as is the case with
:method:`refresh_security_group_rules`) but is called where references
are made to authorizing those instances.
An error should be raised if the operation cannot complete.
"""
# TODO(Vek): Need to pass context in for access to auth_token
raise NotImplementedError()
def refresh_provider_fw_rules(self, security_group_id):
#这触发一个基于数据库改变的防火墙的更新
"""This triggers a firewall update based on database changes.
When this is called, rules have either been added or removed from the
datastore. You can retrieve rules with
:method:`nova.db.api.provider_fw_rule_get_all`.
Provider rules take precedence over security group rules. If an IP
would be allowed by a security group ingress rule, but blocked by
a provider rule, then packets from the IP are dropped. This includes
intra-project traffic in the case of the allow_project_net_traffic
flag for the libvirt-derived classes.
"""
# TODO(Vek): Need to pass context in for access to auth_token
raise NotImplementedError()
def reset_network(self, instance):
"""reset networking for specified instance"""
# TODO(Vek): Need to pass context in for access to auth_token
pass
def ensure_filtering_rules_for_instance(self, instance_ref, network_info):
#设置过滤规则,并等待它完成
"""Setting up filtering rules and waiting for its completion.
To migrate an instance, filtering rules to hypervisors
and firewalls are inevitable on destination host.
( Waiting only for filtering rules to hypervisor,
since filtering rules to firewall rules can be set faster).
Concretely, the below method must be called.
- setup_basic_filtering (for nova-basic, etc.)
- prepare_instance_filter(for nova-instance-instance-xxx, etc.)
to_xml may have to be called since it defines PROJNET, PROJMASK.
but libvirt migrates those value through migrateToURI(),
so , no need to be called.
Don't use thread for this method since migration should
not be started when setting-up filtering rules operations
are not completed.
:params instance_ref: nova.db.sqlalchemy.models.Instance object
"""
# TODO(Vek): Need to pass context in for access to auth_token
raise NotImplementedError()
def unfilter_instance(self, instance, network_info):
"""Stop filtering instance"""
# TODO(Vek): Need to pass context in for access to auth_token
raise NotImplementedError()
def set_admin_password(self, context, instance_id, new_pass=None):
"""
Set the root password on the specified instance.
The first parameter is an instance of nova.compute.service.Instance,
and so the instance is being specified as instance.name. The second
parameter is the value of the new password.
"""
raise NotImplementedError()
def inject_file(self, instance, b64_path, b64_contents):
"""在指定的实例上写文件
Writes a file on the specified instance.
The first parameter is an instance of nova.compute.service.Instance,
and so the instance is being specified as instance.name. The second
parameter is the base64-encoded path to which the file is to be
written on the instance; the third is the contents of the file, also
base64-encoded.
"""
# TODO(Vek): Need to pass context in for access to auth_token
raise NotImplementedError()
def agent_update(self, instance, url, md5hash):
#在指定的实例中更新代理
"""
Update agent on the specified instance.
The first parameter is an instance of nova.compute.service.Instance,
and so the instance is being specified as instance.name. The second
parameter is the URL of the agent to be fetched and updated on the
instance; the third is the md5 hash of the file for verification
purposes.
"""
# TODO(Vek): Need to pass context in for access to auth_token
raise NotImplementedError()
def inject_network_info(self, instance, nw_info):
#为指定的实例注入网络信息
"""inject network info for specified instance"""
# TODO(Vek): Need to pass context in for access to auth_token
pass
def poll_rescued_instances(self, timeout):
#轮询已经恢复的实例
"""Poll for rescued instances"""
# TODO(Vek): Need to pass context in for access to auth_token
raise NotImplementedError()
def host_power_action(self, host, action):
"""Reboots, shuts down or powers up the host."""
raise NotImplementedError()
def set_host_enabled(self, host, enabled):
#设置指定的主机有能力接受新的实例
"""Sets the specified host's ability to accept new instances."""
# TODO(Vek): Need to pass context in for access to auth_token
raise NotImplementedError()
def plug_vifs(self, instance, network_info):
"""Plugs in VIFs to networks."""
# TODO(Vek): Need to pass context in for access to auth_token
raise NotImplementedError()
def update_host_status(self):
"""Refresh host stats"""
raise NotImplementedError()
def get_host_stats(self, refresh=False):
"""Return currently known host stats"""
raise NotImplementedError()
def list_disks(self, instance_name):
"""
Return the IDs of all the virtual disks attached to the specified
instance, as a list. These IDs are opaque to the caller (they are
only useful for giving back to this layer as a parameter to
disk_stats). These IDs only need to be unique for a given instance.
Note that this function takes an instance ID.
"""
raise NotImplementedError()
def list_interfaces(self, instance_name):
"""
Return the IDs of all the virtual network interfaces attached to the
specified instance, as a list. These IDs are opaque to the caller
(they are only useful for giving back to this layer as a parameter to
interface_stats). These IDs only need to be unique for a given
instance.
Note that this function takes an instance ID.
"""
raise NotImplementedError()
def resize(self, instance, flavor):
"""
Resizes/Migrates the specified instance.
The flavor parameter determines whether or not the instance RAM and
disk space are modified, and if so, to what size.
"""
raise NotImplementedError()
def block_stats(self, instance_name, disk_id):
"""
Return performance counters associated with the given disk_id on the
given instance_name. These are returned as [rd_req, rd_bytes, wr_req,
wr_bytes, errs], where rd indicates read, wr indicates write, req is
the total number of I/O requests made, bytes is the total number of
bytes transferred, and errs is the number of requests held up due to a
full pipeline.
All counters are long integers.
This method is optional. On some platforms (e.g. XenAPI) performance
statistics can be retrieved directly in aggregate form, without Nova
having to do the aggregation. On those platforms, this method is
unused.
Note that this function takes an instance ID.
"""
raise NotImplementedError()
def interface_stats(self, instance_name, iface_id):
"""
Return performance counters associated with the given iface_id on the
given instance_id. These are returned as [rx_bytes, rx_packets,
rx_errs, rx_drop, tx_bytes, tx_packets, tx_errs, tx_drop], where rx
indicates receive, tx indicates transmit, bytes and packets indicate
the total num
ber of bytes or packets transferred, and errs and dropped
is the total number of packets failed / dropped.
All counters are long integers.
This method is optional. On some platforms (e.g. XenAPI) performance
statistics can be retrieved directly in aggregate form, without Nova
having to do the aggregation. On those platforms, this method is
unused.
Note that this function takes an instance ID.
"""
raise NotImplementedError()

　　1：

　　2：

　　3：

4：
4

账号		自动登录	找回密码
密码			立即注册

VMware vcenter+vSphere 6.5 U2共享

【跟谁学】韩宇极简英语课-技术人员不得不

用Zabbix通过JMX方式监控weblogic

winhex数据恢复教程（非常巨大，内容丰富）

Symantec Backup Exec 2015 2016/2012 BE20

NetScaler VPX部署之：NetScaler Gateway调

zabbix3.4.1安装部署+微信推送信息+大屏显

[经验分享] openstack nova 源码分析4

扫码加入运维网微信交流群
