DNS Server : Install

蔷薇525

　　Configure DNS Server to resolve Hostname or IP Address.

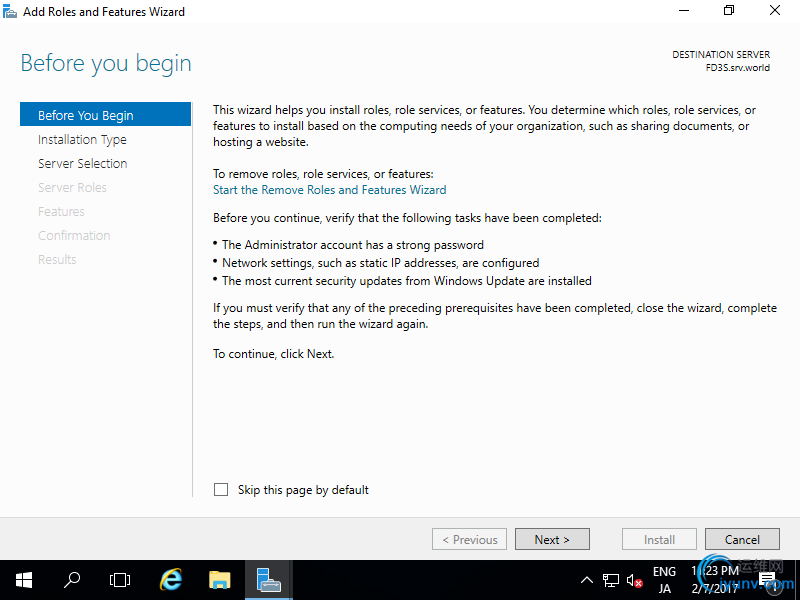

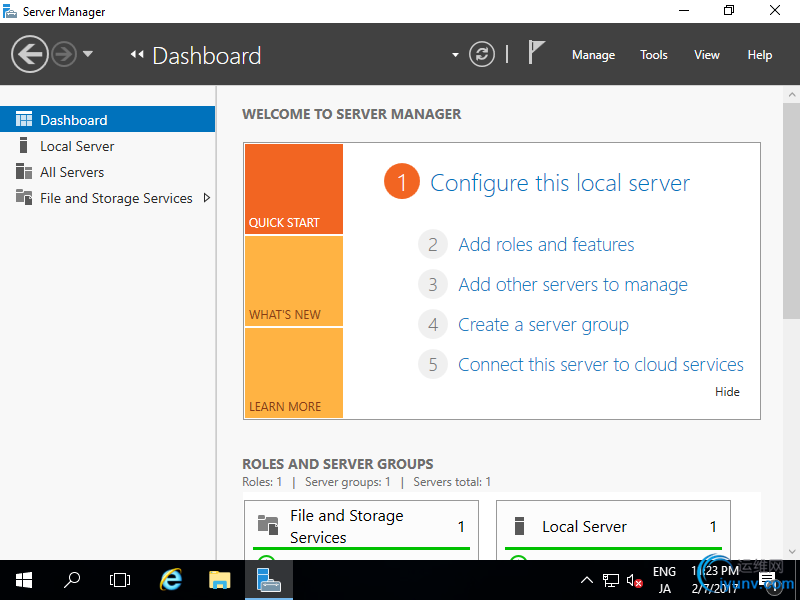

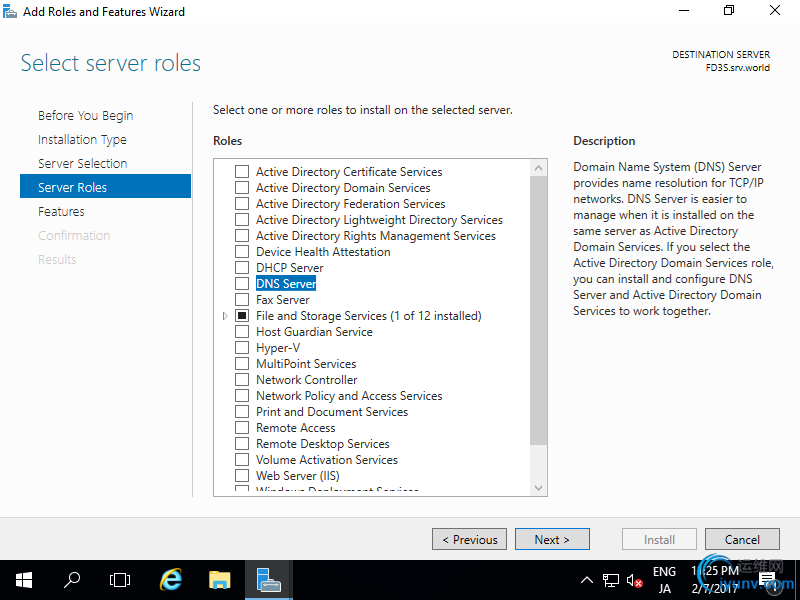

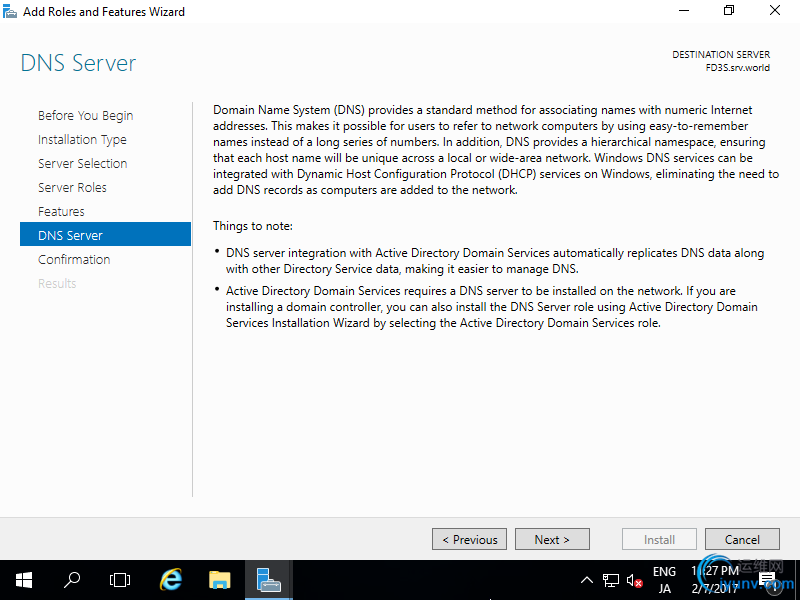

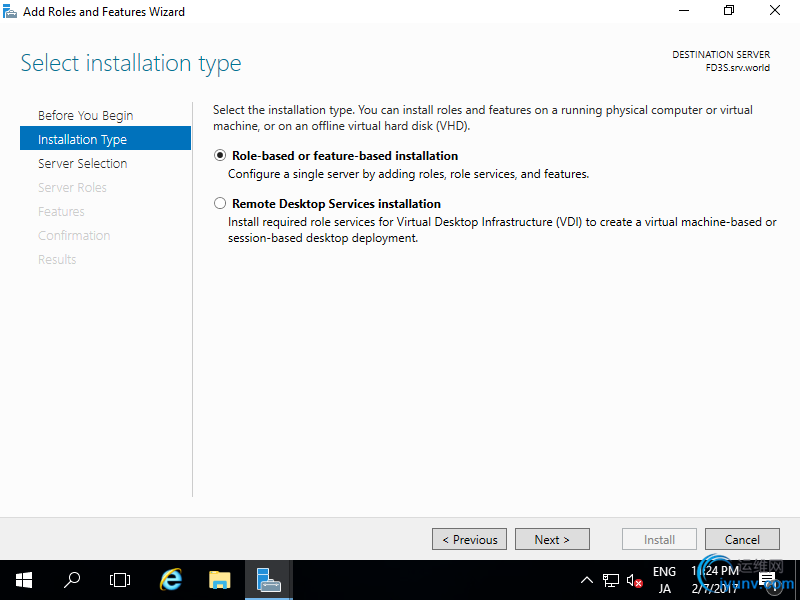

[1]Run Server Manager and Click [Add roles and features]. [2]Click [Next] button. [3]Select [Role-based or feature-based installation]. [4]Select a Host which you'd like to add services. [5]Check a box [DNS Server]. [6]Addtional features are required to add DNS Server. Click [Add Features] button. [7]Click [Next] button. [8]Click [Next] button. [9]Click [Next] button. [10]Click [Install] button. [11]After finishing Installation, click [Close] button.

DNS Server : Add Forward lookup Zone　　Add Forward lookup Zone.

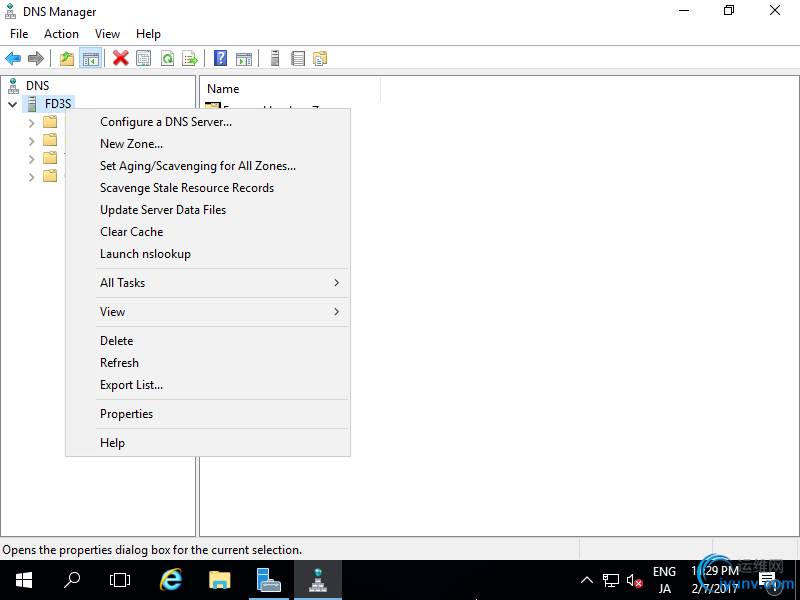

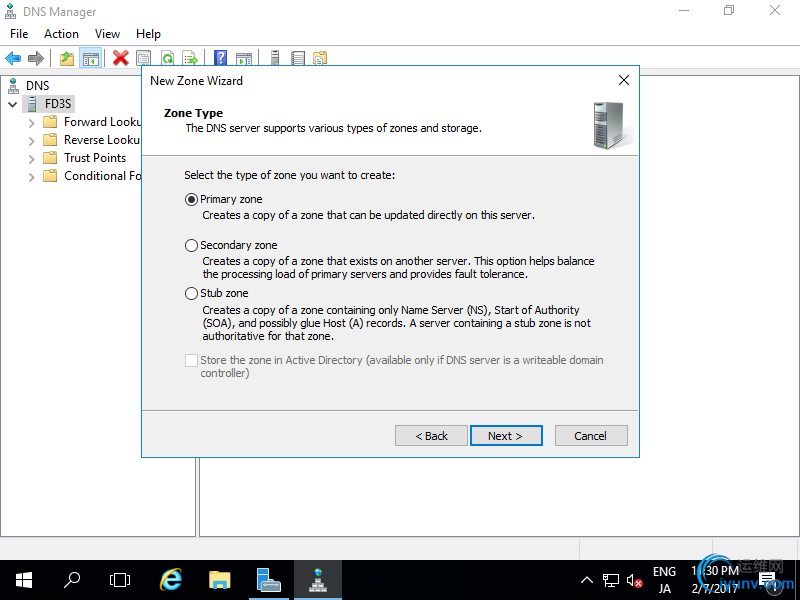

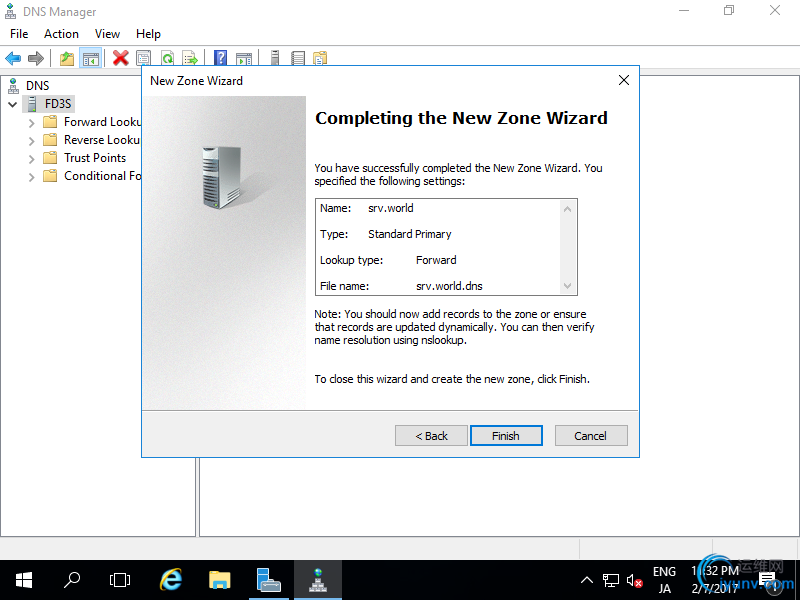

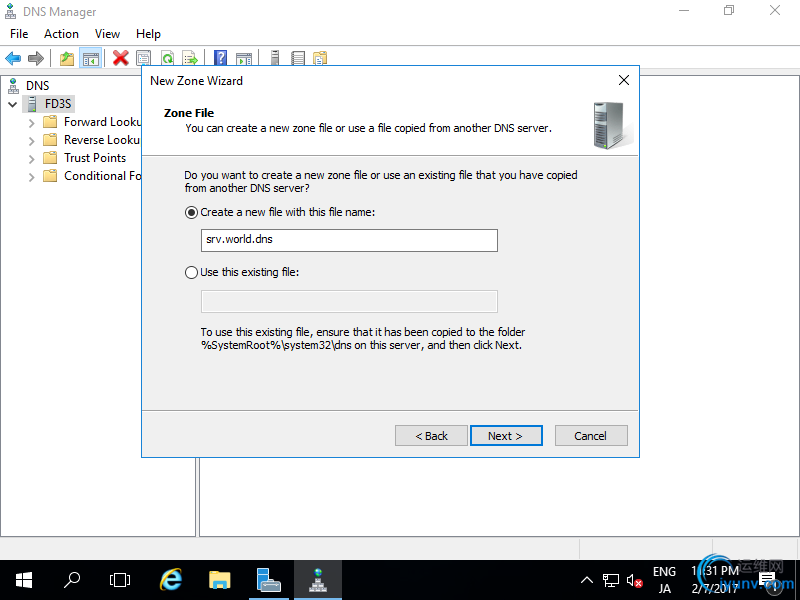

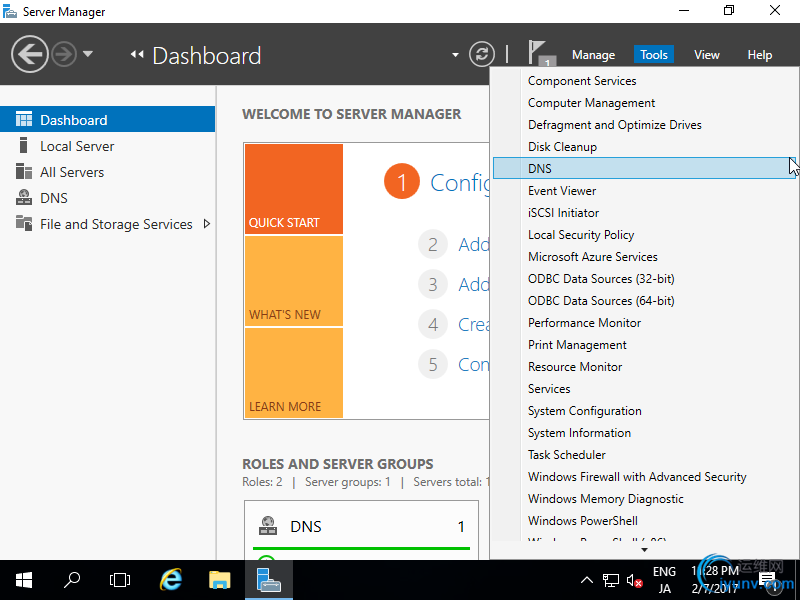

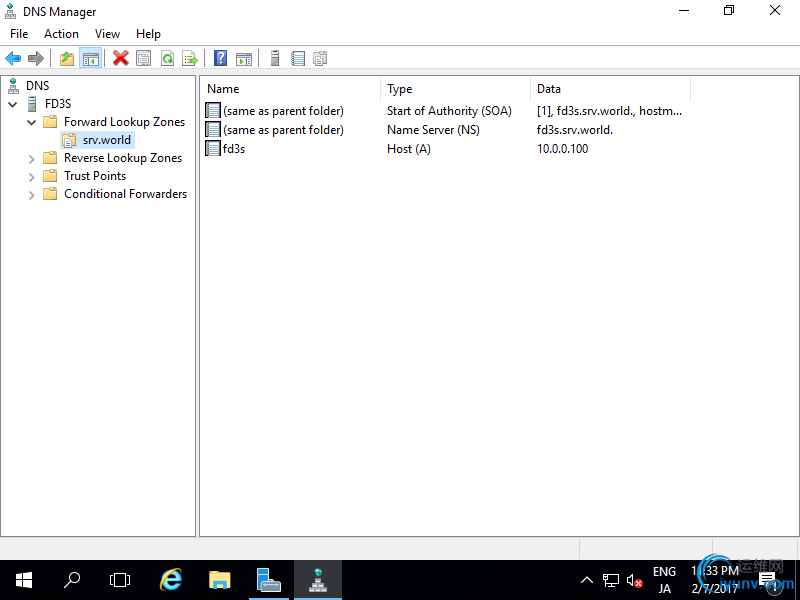

[1]Run Server Manager and select [Tools] - [DNS]. [2]Select own Hostname on the left pane and right-click the own Hostname to show menu on the left pane, then select [New Zone...]. [3]Click [Next] button. [4]Check a box [Primary zone] and click [Next] button. [5]Check a box [Forward lookup Zone] and click [Next] button. [6]Input Zone name. As the description on the screen-shot below, set domain name or portion of domain name for this zone name. [7]Set zone-file-name and click [Next] button. It's OK to keep default for zone-file-name. [8]Click [Next] button with keeping default. [9]Click [Finish] button. [10]A new zone has been created under the Forward lookup Zone.

　　DNS Server : Add Reverse lookup Zone
　　Add Reverse lookup Zone.

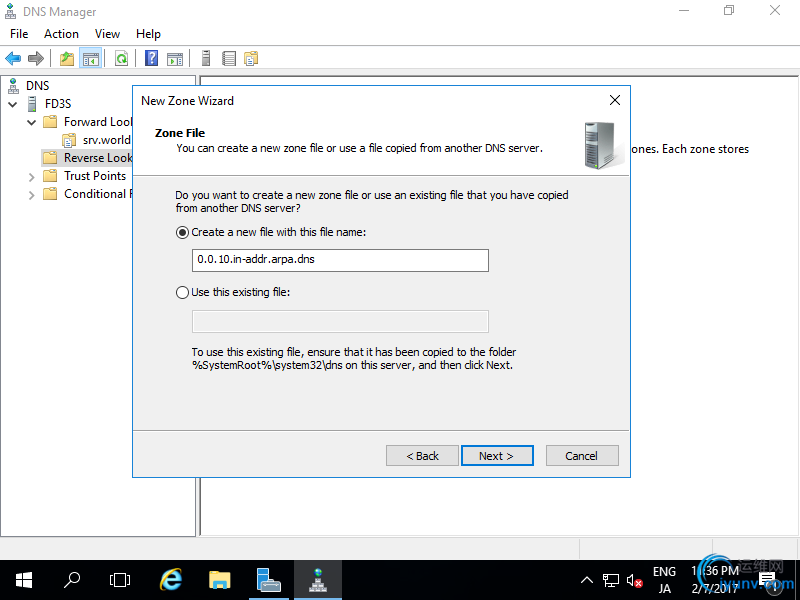

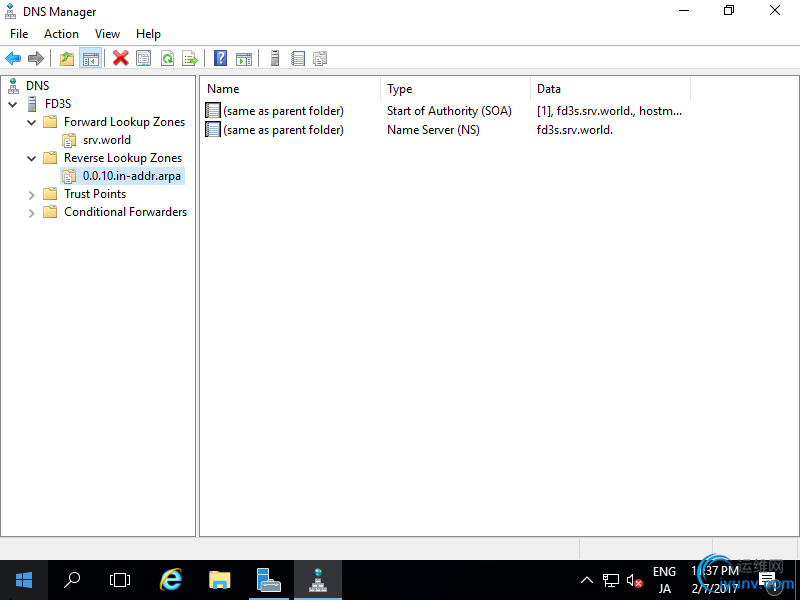

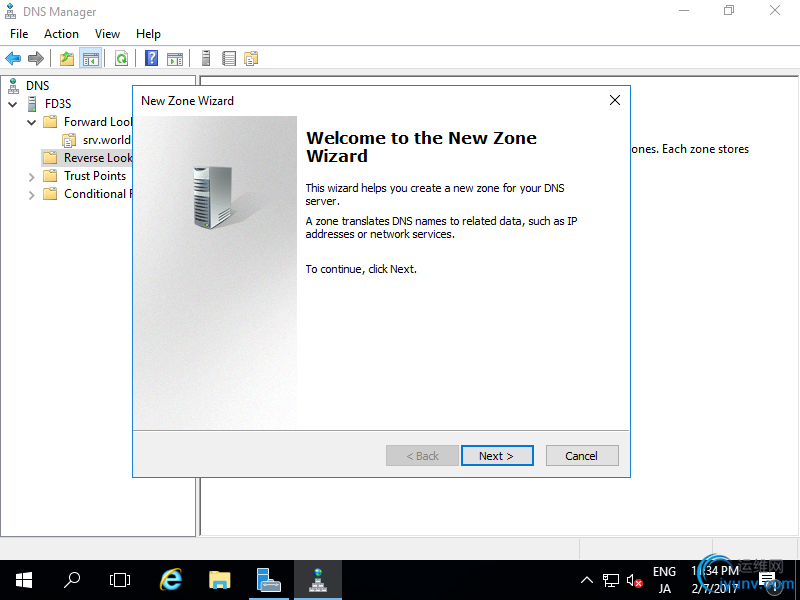

[1]Run Server Manager and select [Tools] - [DNS], next right-click [Reverse lookup Zones...] to show menu on the left pane, then select [New Zone...]. [2]Click [Next] button. [3]Check a box [Primary zone] and click [Next] button. [4]Check a box [IPv4 Reverse lookup Zone] and click [Next] button. [5]Input [Network>[6]Set zone-file-name and click [Next] button. It's OK to keep default for zone-file-name. [7]Click [Next] button with keeping default. [8]Click [Finish] button. [9]A new zone has been created under the Reverse lookup Zone.

　　DNS Server : Add A/PTR record
　　Add A/PTR record.

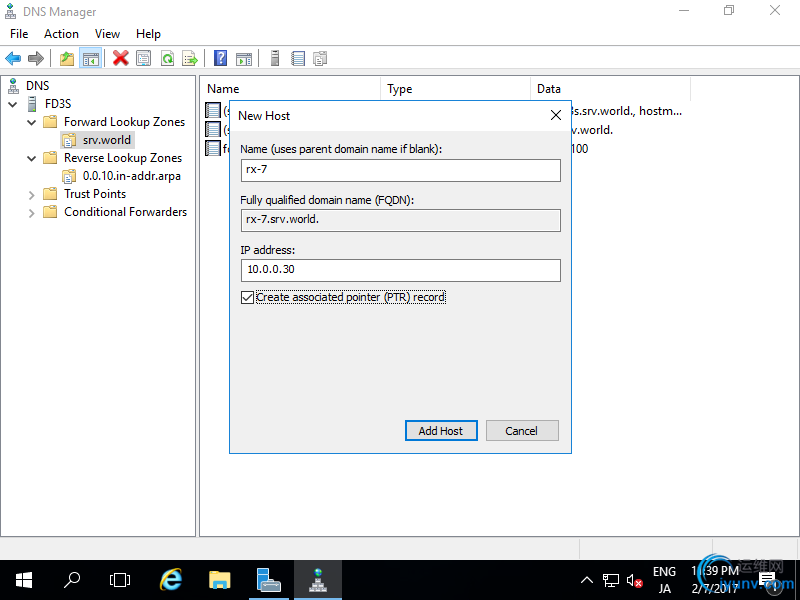

[1]Run Server Manager and select [Tools] - [DNS], next right-click the own domain name to show menu on the left pane, then select [New Host(A or AAA)...]. [2]Input Hostname and IP address you'd like to add.　　Furthermore, check a box [Create associated pointer (PTR) record].

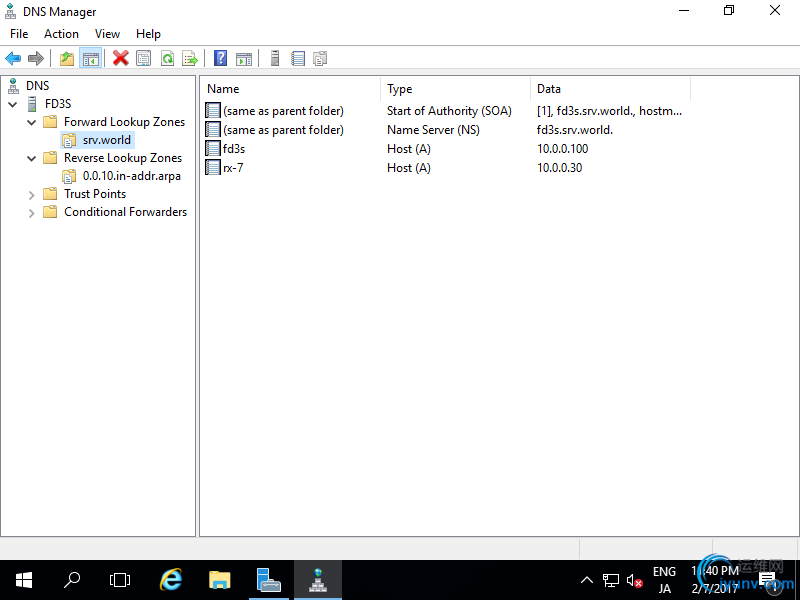

[3]A new A-record has beed just added. [4]Make sure with nslookup to resolve Hostname or IP address.

　　DNS Server : Add MX record
　　Add MX record to define Mail Server to use.

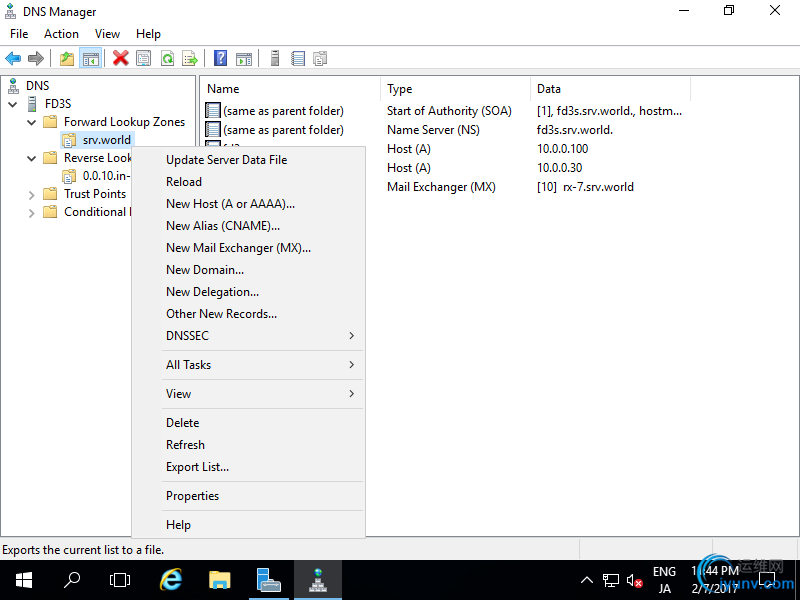

[1]Run Server Manager and select [Tools] - [DNS], next right-click the own domain name to show menu on the left pane, then select [New Mail Exchanger(MX)...]. [2]Input Hostname and FQDN of Mail exchanger like follows. [3]A new Mail exchanger record has beed just added. 　　DNS Server : Add CNAME record
　　Add CNAME record which is another name of an A-record.
　　

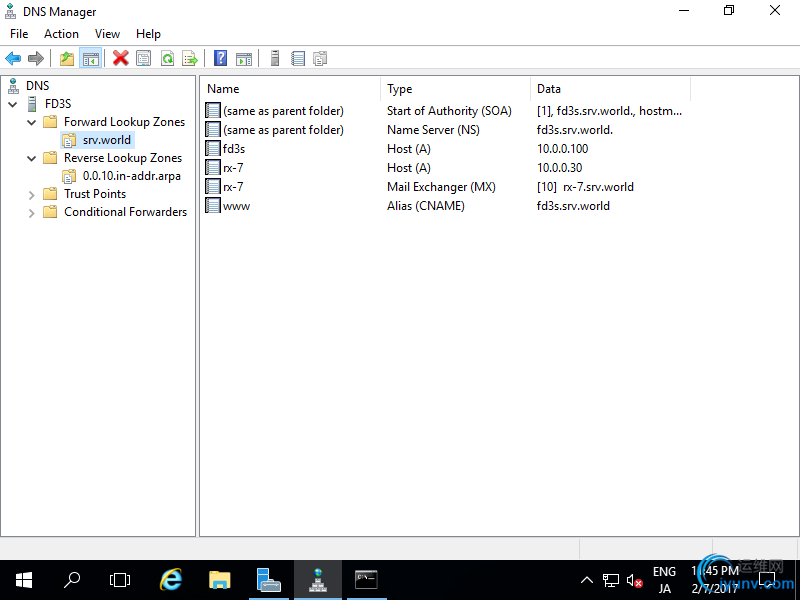

[1]Run Server Manager and select [Tools] - [DNS], next right-click the own domain name to show menu on the left pane, then select [New Alias (CNAME)...]. [2]Input Alias name and FQDN, and also target Hostname like follows. [3]A new CNAME record has beed just added. [4]Make sure with nslookup to resolve the Alias Name.
