　　How to Install Rancher Docker Container Manager on CentOS 7
　　Rancher is an open source container management platform. It allows you to run and manage Docker and Kubernetes with ease. Rancher provides infrastructure services such as multi-host networking, load balancing, and volume snapshots.
　　In this tutorial, I will guide you to step-by-step install and configure Rancher Server and Agent on CentOS 7 server. We will install Docker and Rancher on the CentOS server, enable local authentication Rancher server, add the rancher host, and then try to deploy container application 'Ghost' from Rancher Dashboard.
Prerequisites

• 　　CentOS 7



  • 　　host01 - 192.168.33.10

  • 　　host02 - 192.168.33.11



• 　　Root privileges


What we will do?

• 　　Install Docker on CentOS 7

• 　　Install Rancher Server

• 　　Enable Local Authentication Rancher Server

• 　　Add New Host

• 　　Deploy New Container


Step 1 - Install Docker on CentOS 7
　　Rancher can be installed as a set of Docker Containers, one container as a management server and another as an agent. And we need Docker installed on all our rancher host and agent.
　　Install Docker on CentOS 7 using the yum command below.
　　yum -y install docker
　　After the installation is complete, start the service and add it to the boot time.
　　systemctl start docker
　　systemctl enable docker
　　Docker installed on the rancher host server - check it using commands below.
　　systemctl status docker
　　docker --version
　　And you will get the result as shown below.

Step 2 - Install Rancher Server
　　To run and install Rancher, we just need to run the Rancher container on our server host. In this step, we will install Rancher Server single container on our 'host01' server.
　　Before installing Rancher server on 'host01' server, we will create and define a new directory as a Rancher database volume.
　　Run the commands below.
　　HOST_VOLUME=$HOME/rancher-data/mysql
　　mkdir -p $HOST_VOLUME
　　Now install Rancher server using the docker command below.
　　sudo docker run -d \
　　-v $HOST_VOLUME:/var/lib/mysql \
　　--restart=unless-stopped \
　　-p 8080:8080 \
　　rancher/server
　　Wait for the Rancher server installation.

　　When the installation is complete, Rancher server is accessible from the web browser.
　　Open your web browser and type the server IP address with port 8080.
　　http://192.168.33.10:8080/
　　And you will get the Rancher first page installation as below.

　　Rancher server has been installed on CentOS 7 server and is now running on default port 8080.
Step 3 - Enable Local Authentication on Rancher Server
　　After the Rancher installation, we need to configure the Rancher Access Control. The Access Control allows you to manage users who have the access permissions to your Rancher server.
　　Rancher supports many access control providers, including Active Directory, Azure AD, Github, OpenLDAP, SAML, and Local Authentication.
　　For this guide, we will enable the local authentication for our Rancher server installation.
　　Open your web browser and type the server IP address with port 8080.
　　http://192.168.33.10:8080/
　　Move your cursor to the 'ADMIN' menu drop-down and click the 'Access Control'.

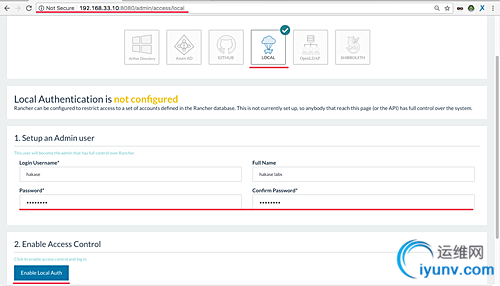

　　Now we want to use the 'Local Authentication' method. Click 'LOCAL' on the page, then type your username and password.

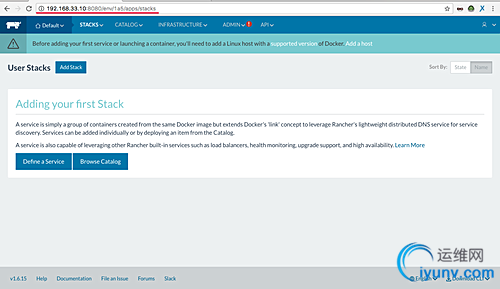

　　Click 'Enable Local Auth' button and you will be redirected to the Rancher admin dashboard.
　　Access Control for the Rancher server has been setup with Local Authentication enabled.
Step 4 - Add New Host
　　Hosts are the most basic unit of resource within Rancher and represented as any Linux server (a virtual or physical server with Docker installed on it).
　　In this step, we will add new host 'host02' with Ubuntu as an operating system and with the 2GB of RAM.
　　Connect to the 'host02' server using the ssh.
　　ssh root@gost02
　　Now install Docker on it using yum command.
　　yum -y install docker
　　And when the installation is complete, start docker and enable it to launch everytime at system start.
　　systemctl start docker
　　systemctl enable docker
　　Docker has been installed on the 'host02' server.

　　Next, we will add host02 to the Rancher as a host.

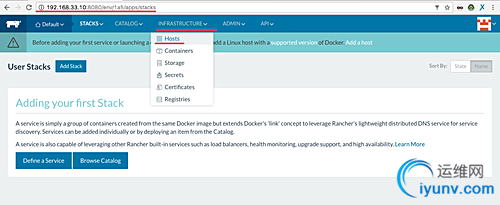

　　Open the Rancher Dashboard, move your cursor to the 'INFRASTRUCTURE' menu and click 'Hosts'.

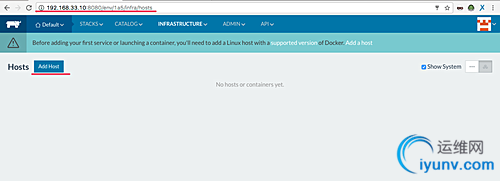

　　Now click the 'Add Host' button.

　　For the Host Registration URL, we will use default as shown below.

　　Click 'Save button'.
　　Now select the Host type, Rancher support for many type of hosts including Amazon EC2, Azure, DigitalOcean, Rackspace Hosts.
　　Select the 'Custom' host, type the 'hots02' IP address, and copy the docker command on the box.

　　Now open the host02 terminal shell and paste the following command.
　　sudo docker run -e CATTLE_AGENT_IP="192.168.33.11"  --rm --privileged -v /var/run/docker.sock:/var/run/docker.sock -v /var/lib/rancher:/var/lib/rancher rancher/agent:v1.2.10 http://192.168.33.10:8080/v1/scripts/BCF2EFCA73A02954EBDF:1514678400000:OdRDdvnEUbV2hUMAFIS3oQxcTt4
　　The command will download and run new container for Rancher Agent.

　　And when it's complete, you will get the result as shown below.

　　Now back to the Rancher Dashboard Host Add page and click the 'Close' button.
　　And you will see the 'host02' on the page as shown below.

　　host02 has been added to the Rancher server, and we're now ready to run container managed by Rancher server.
Step 5 - Test Create New Container
　　Rancher provides a catalog for applications. The available application templates make deployment easier.
　　Rancher provides two types of catalogs. The Library catalog that contains templates from the Rancher certified catalog, and the Community catalog that contains templates from the Rancher Community-catalog.
　　In this step, we will try to deploy a simple blog platform 'Ghost' as a container through the Rancher Catalog Community Templates.
　　On the Rancher Dashboard, move the cursor to the 'CATALOG' menu and click the Community Catalog.

　　In the 'Search' box, type the application name that we want to install ('Ghost').

　　Click the 'View Details' button.
　　Give the new Ghost container a name and description.

　　Then click the 'Launch' button.
　　When it's complete, you will get the result as below.

　　The 'Ghost' container has been created and is now running on Rancher agent server.

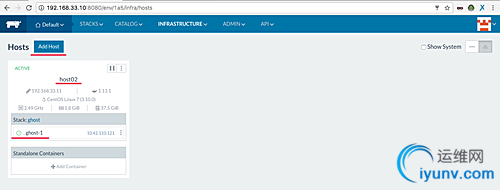

　　Now move your cursor to the 'INFRASTRUCTURE' menu and click 'Host'. Now make sure you get the 'ghost' container is running on the 'host2' server.

　　To verify the Ghost container installation, open your web browser and type the 'host02' IP address and you will get the ghost blog default homepage.
　　http://192.168.33.11/

　　Rancher server and Rancher agent installation on Ubuntu 16.04 has been completed successfully.
Reference

• 　　http://rancher.com/docs/rancher/latest/en/
