构建高可用服务器之三 Keepalive均衡Mysql

qrqwe

实验目的：
   通过Keepalive来构建Mysql的高可用。Mysql已做主从，当一台Mysql宕机的时候不影响对Mysql的调用。
实验环境：
  两台Mysql服务器(基于LAMP且已做主从)，两台Mysql服务器都通过Apache发布Discuz论坛(discuz调用的是主mysql地址)。
身份            主机名      IP地址
主Mysql           master      192.168.1.3
从Myslq           slave        192.168.1.4
LAMP平台请参见<<搭建Discuz论坛的两种方式>>
Mysql主从参见<<构建Mysql三部曲之三 主从案例>>
实验步骤：
一、在主mysql上安装配置keepalive

1	[iyunv@master ~]# bash keepalive_install.sh

“脚本”内容如下：

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

[iyunv@master ~]# cat keepalive_install.sh #!/bin/bash yum -y  install kernel-devel openssl-devel  popt-devel && wgethttp://www.keepalived.org/software/keepalived-1.1.15.tar.gz && tar -zxf keepalived-1.1.15.tar.gz && cd keepalived-1.1.15 && ./configure--with-kernel-dir=/usr/src/kernels/2.6.32-431.el6.x86_64/ && make && make install && DIR=/usr/local/ cp $DIR/etc/rc.d/init.d/keepalived  /etc/rc.d/init.d/  && cp $DIR/etc/sysconfig/keepalived /etc/sysconfig/&& mkdir -p /etc/keepalived && cp $DIR/sbin/keepalived/usr/sbin/&& cp/usr/local/etc/keepalived/keepalived.conf /etc/keepalived/ && /etc/init.d/keepalived restart if [ $? -eq 0 ];then         echo -e '\e[32mInstall Keepalive Successfully!\e[0m' else         echo -e '\e[31mInstall Keepalive Failure!\e[0m' fi

加载ip_vs的内核模块

1 2 3

[iyunv@master ~]# modprobe ip_vs [iyunv@master~]# modprobe ip_vs_wrr [iyunv@master~]# modprobe ip_vs_rr

修改keepalived.conf配置文件如下：

1 2	[iyunv@master ~]# vim /etc/keepalived/keepalived.conf [iyunv@master ~]# cat/etc/keepalived/keepalived.conf

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45

! Configuration File for keepalived    global_defs {   notification_email {          654001593@qq.com    }   notification_email_from root@localhost.com   smtp_server 127.0.0.1   smtp_connect_timeout 30   router_id LVS_DEVEL }    vrrp_instance VI_1 {    state MASTER    interface eth0    virtual_router_id 51    priority 100    advert_int 1    authentication {        auth_type PASS        auth_pass 1111     }    virtual_ipaddress {          192.168.1.77     } }    virtual_server 192.168.1.77 3306 {    delay_loop 6    lb_algo wrr    lb_kind DR    persistence_timeout 50    protocol TCP       real_server 192.168.1.3 3306 {        weight 1          notify_down/data/sh/ keepalive_stop.sh        TCP_CHECK {            connect_timeout 3            nb_get_retry 3            delay_before_retry 3              connect_port 3306        }     } }

1 2 3 4 5 6 7 8 9

[iyunv@master ~]# mkdir -p /data/sh [iyunv@master ~]# vim/data/sh/keepalive_stop.sh [iyunv@master ~]# chmod +x /data/sh/keepalive_stop.sh [iyunv@master ~]# /etc/init.d/keepalivedreload Reloading keepalived:                                      [  OK  ] [iyunv@master ~]# cat/data/sh/keepalive_stop.sh #!/bin/bash /etc/init.d/keepalived stop [iyunv@master ~]#

二、在从mysql上安装配置keepalive

1	[iyunv@slave ~]# bash keepalive_install.sh

“脚本”内容如下，同master上执行的脚本一致(非严格意义上的脚本，安装命令放一起而已)。

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

[iyunv@slave ~]# cat keepalive_install.sh #!/bin/bash yum -y install  kernel-developenssl-devel  popt-devel && wget http://www.keepalived.org/softwa ... 15.tar.gz&& tar -zxf keepalived-1.1.15.tar.gz && cd keepalived-1.1.15 && ./configure--with-kernel-dir=/usr/src/kernels/2.6.32-431.el6.x86_64/ && make && make install && DIR=/usr/local/ cp $DIR/etc/rc.d/init.d/keepalived  /etc/rc.d/init.d/  && cp $DIR/etc/sysconfig/keepalived/etc/sysconfig/ && mkdir -p /etc/keepalived && cp $DIR/sbin/keepalived/usr/sbin/&& cp/usr/local/etc/keepalived/keepalived.conf /etc/keepalived/ && /etc/init.d/keepalived restart if [ $? -eq 0 ];then         echo -e '\e[32mInstall Keepalive Successfully!\e[0m' else         echo -e '\e[31mInstall Keepalive Failure!\e[0m' fi [iyunv@slave ~]#

加载ip_vs的内核模块

1 2 3

[iyunv@master ~]# modprobe ip_vs [iyunv@master ~]# modprobe ip_vs_wrr [iyunv@master ~]# modprobe ip_vs_rr

修改keepalived.conf配置文件如下

1 2	[iyunv@slave ~]# vim/etc/keepalived/keepalived.conf [iyunv@slave ~]# cat/etc/keepalived/keepalived.conf

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46

! Configuration File for keepalived    global_defs {   notification_email {          654001593@qq.com    }   notification_email_from root@localhost.com   smtp_server 127.0.0.1   smtp_connect_timeout 30   router_id LVS_DEVEL }    vrrp_instance VI_1 {    state BACKUP    !此处同master不一样    interface eth0    virtual_router_id 51    priority 90     !优先级比master上低    advert_int 1     authentication{        auth_type PASS        auth_pass 1111     }    virtual_ipaddress {          192.168.1.77     } }    virtual_server 192.168.1.77 3306 {    delay_loop 6    lb_algo wrr    lb_kind DR    nat_mask 255.255.255.0    persistence_timeout 50     protocol TCP       real_server 192.168.1.4 3306 { !Slave上的IP        weight 1          notify_down/data/sh/keepalive_stop.sh        TCP_CHECK {            connect_timeout 3            nb_get_retry 3            delay_before_retry 3              connect_port 3306        }     } }

1 2 3 4 5 6 7 8 9 10

[iyunv@slave ~]# root@slave ~]# mkdir -p /data/sh [iyunv@slave ~]# vim/data/sh/keepalive_stop.sh [iyunv@slave ~]# chmod +x/data/sh/keepalive_stop.sh [iyunv@slave ~]# /etc/init.d/keepalivedreload Reloading keepalived:                                      [  OK  ] [iyunv@slave ~]# cat/data/sh/keepalive_stop.sh #!/bin/bash /etc/init.d/keepalived stop [iyunv@slave ~]#

三、修改Discuz论坛数据库连接IP为VIP
直接访问master上的192.168.1.3论坛是可以访问的，且直接访问slave上的192.168.1.4论坛也是可以访问的，现在我们直接访问VIP(虚拟IP) 192.168.1.77依旧可以访问论坛。


这个时候因为discuz调用的是master上的数据库IP，所以我们应该让其调用VIP     192.168.1.77,这样才能保证在主挂的时候自动切换到从上。
在master上

1 2	[iyunv@master ~]#sed -i 's/192.168.1.3/192.168.1.77/'/usr/local/apache/htdocs/config/config_global.php [iyunv@master ~]#/usr/local/apache/bin/apachectl restart

在slave上

1 2	[iyunv@slave ~]#sed -i 's/192.168.1.3/192.168.1.77/'/usr/local/apache/htdocs/config/config_global.php [iyunv@slave ~]#/usr/local/apache/bin/apachectl restart

四、测试

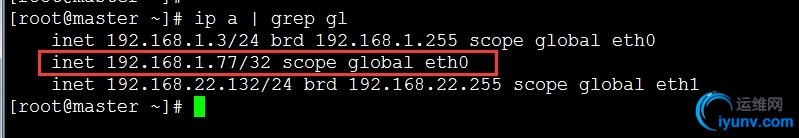

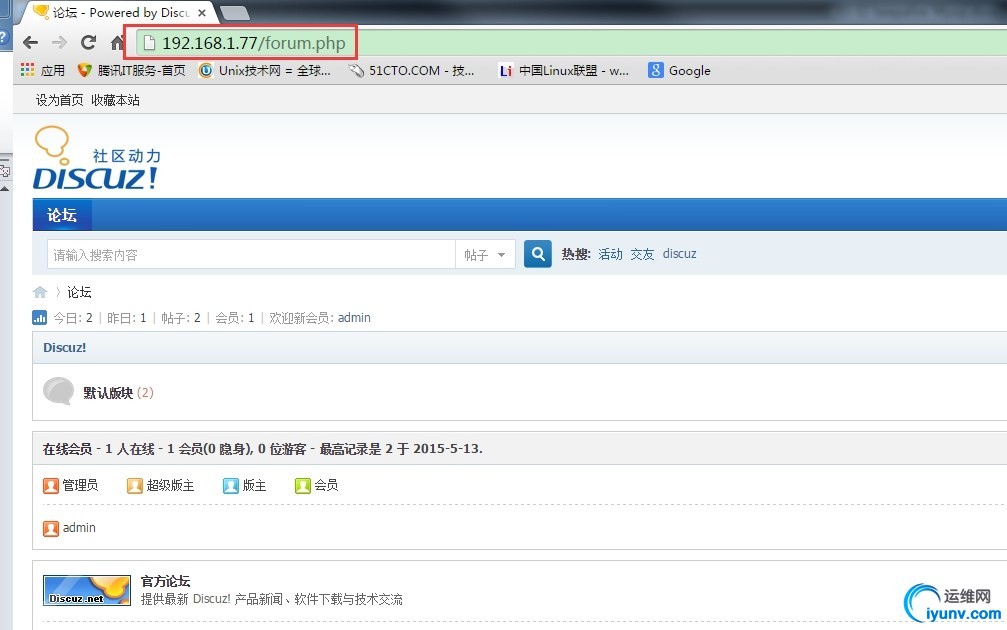

上边两个图很明显可以看出此时VIP在master上。
手动模拟master上的mysql关闭


VIP自动漂到slave上



论坛依旧可以访问
