ospf+lvs+fullnat 配置部署纪要

ewr23

拓扑图如下::



实验需求及目的：
    通过ospf路由自动宣告功能来宣布LVS的VIP地址:192.168.0.111 使C1计算机能够通过网络不间断的访问192.168.0.111提供的WEB 访问服务。
实验结果：
   在C1段的计算机节点ping VIP地址192.168.0.111     重启C2或者C3 这时候发现VIP不会断。

实验工具:
   用gns3来模拟网络，用c7200模拟路由器R1和R2， 用C3600来模拟三层交换r3.
   用VMware虚拟机来实现LVS 的loadblance调度 LVS1和LVS2
实验配置过程：
GNS3配置
    1.加载镜像,点击edit-->ios IMAGES and hypervisors

加载镜像完成.
下面配置草C1  其他PC的配置类似


注意C1在这里选择本地网卡，C2 C3 一定选择NET8
下面开始配置R1 R2  R3

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 216 217 218 219 220 221 222 223 224 225 226 227 228 229 230 231 232 233 234 235 236 237 238 239 240 241 242 243 244 245 246 247 248 249 250 251 252 253 254 255 256 257 258 259 260 261 262 263 264 265 266 267 268 269 270 271 272 273 274 275 276 277 278 279 280 281 282 283 284 285 286 287 288 289 290 291 292 293 294 295 296 297 298 299 300 301 302 303 304 305 306 307 308 309 310 311 312 313 314

R1的配置如下： Router#sh running-config Building configuration... Current configuration : 1062 bytes version 12.4 service timestamps debug datetime msec service timestamps log datetime msec no service password-encryption hostname Router boot-start-marker boot-end-marker no aaa new-model resource policy ip subnet-zero ip cef no ip dhcp use vrf connected no ip ips deny-action ips-interface interface FastEthernet0/0 ip address 6.6.6.2 255.255.255.0 duplex auto speed auto ! interface FastEthernet0/1 ip address 1.1.1.2 255.255.255.0 duplex auto speed auto ! interface Ethernet1/0 no ip address shutdown duplex half ! interface Ethernet1/1 no ip address shutdown duplex half ! interface Ethernet1/2 no ip address shutdown duplex half ! interface Ethernet1/3 no ip address shutdown duplex half ! router ospf 10 log-adjacency-changes network 1.1.1.0 0.0.0.255 area 0 network 6.6.6.0 0.0.0.255 area 0 ! ip classless no ip http server no ip http secure-server control-plane gatekeeper shutdown line con 0 stopbits 1 line aux 0 line vty 0 4 end R2的配置如下： Router#sh running-config Router#sh running-config Building configuration... Current configuration : 1062 bytes ! version 12.4 service timestamps debug datetime msec service timestamps log datetime msec no service password-encryption ! hostname Router ! boot-start-marker boot-end-marker ! ! no aaa new-model ! resource policy ! ip subnet-zero ip cef ! ! no ip dhcp use vrf connected ! ! no ip ips deny-action ips-interface interface FastEthernet0/0 ip address 2.2.2.1 255.255.255.0 duplex auto speed auto ! interface FastEthernet0/1 ip address 1.1.1.1 255.255.255.0 duplex auto speed auto ! interface Ethernet1/0 no ip address shutdown duplex half ! interface Ethernet1/1 no ip address shutdown duplex half ! interface Ethernet1/2 no ip address shutdown duplex half ! interface Ethernet1/3 no ip address shutdown duplex half ! router ospf 10 log-adjacency-changes network 1.1.1.0 0.0.0.255 area 0 network 2.2.2.0 0.0.0.255 area 0 ! ip classless no ip http server no ip http secure-server control-plane gatekeeper shutdown line con 0 stopbits 1 line aux 0 line vty 0 4 ! ! end ######################################################### R3的配置（三层交换的配置） Router#sh running-config Building configuration... Current configuration : 1326 bytes ! version 12.4 service timestamps debug datetime msec service timestamps log datetime msec no service password-encryption ! hostname Router ! boot-start-marker boot-end-marker no aaa new-model memory-size iomem 5 ip cef ! ! ip auth-proxy max-nodata-conns 3 ip admission max-nodata-conns 3 interface FastEthernet0/0 no switchport ip address 2.2.2.2 255.255.255.0 ! interface FastEthernet0/1 switchport access vlan 2 ! interface FastEthernet0/2 switchport access vlan 2 ! interface FastEthernet0/3 ! interface FastEthernet0/4 ! interface FastEthernet0/5 ! interface FastEthernet0/6 ! interface FastEthernet0/7 ! interface FastEthernet0/8 ! interface FastEthernet0/9 ! interface FastEthernet0/10 ! interface FastEthernet0/11 ! interface FastEthernet0/12 ! interface FastEthernet0/13 ! interface FastEthernet0/14 ! interface FastEthernet0/15 ! interface Vlan1 no ip address ! interface Vlan2 ip address 3.3.3.1 255.255.255.0 ! router ospf 10 log-adjacency-changes network 2.2.2.0 0.0.0.255 area 0 network 3.3.3.0 0.0.0.255 area 0 ! no ip http server no ip http secure-server ! ip forward-protocol nd ! ! mac-address-table static cc03.04c0.0000 interface FastEthernet0/2 vlan 1 control-plane line con 0 line aux 0 line vty 0 4 login end 分别查看R1  R2   R3上的路由信息 R1: Router#sh ip route Codes: C - connected, S - static, R - RIP, M - mobile, B - BGP        D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area        N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2        E1 - OSPF external type 1, E2 - OSPF external type 2        i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2        ia - IS-IS inter area, * - candidate default, U - per-user static route        o - ODR, P - periodic downloaded static route Gateway of last resort is not set      1.0.0.0/24 is subnetted, 1 subnets C       1.1.1.0 is directly connected, FastEthernet0/1      2.0.0.0/24 is subnetted, 1 subnets O       2.2.2.0 [110/2] via 1.1.1.1, 01:26:44, FastEthernet0/1      3.0.0.0/24 is subnetted, 1 subnets O       3.3.3.0 [110/3] via 1.1.1.1, 01:26:44, FastEthernet0/1      6.0.0.0/24 is subnetted, 1 subnets C       6.6.6.0 is directly connected, FastEthernet0/0      192.168.0.0/32 is subnetted, 1 subnets O       192.168.0.111 [110/13] via 1.1.1.1, 01:26:44, FastEthernet0/1 R2: Router#sh ip route Codes: C - connected, S - static, R - RIP, M - mobile, B - BGP        D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area        N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2        E1 - OSPF external type 1, E2 - OSPF external type 2        i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2        ia - IS-IS inter area, * - candidate default, U - per-user static route        o - ODR, P - periodic downloaded static route Gateway of last resort is not set      1.0.0.0/24 is subnetted, 1 subnets C       1.1.1.0 is directly connected, FastEthernet0/1      2.0.0.0/24 is subnetted, 1 subnets C       2.2.2.0 is directly connected, FastEthernet0/0      3.0.0.0/24 is subnetted, 1 subnets O       3.3.3.0 [110/2] via 2.2.2.2, 01:27:12, FastEthernet0/0      6.0.0.0/24 is subnetted, 1 subnets O       6.6.6.0 [110/2] via 1.1.1.2, 01:27:12, FastEthernet0/1      192.168.0.0/32 is subnetted, 1 subnets O       192.168.0.111 [110/12] via 2.2.2.2, 01:27:12, FastEthernet0/0 R3: Router#sh ip route Codes: C - connected, S - static, R - RIP, M - mobile, B - BGP        D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area        N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2        E1 - OSPF external type 1, E2 - OSPF external type 2        i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2        ia - IS-IS inter area, * - candidate default, U - per-user static route        o - ODR, P - periodic downloaded static route Gateway of last resort is not set      1.0.0.0/24 is subnetted, 1 subnets O       1.1.1.0 [110/2] via 2.2.2.1, 01:25:40, FastEthernet0/0      2.0.0.0/24 is subnetted, 1 subnets C       2.2.2.0 is directly connected, FastEthernet0/0      3.0.0.0/24 is subnetted, 1 subnets C       3.3.3.0 is directly connected, Vlan2      6.0.0.0/24 is subnetted, 1 subnets O       6.6.6.0 [110/3] via 2.2.2.1, 01:25:40, FastEthernet0/0      192.168.0.0/32 is subnetted, 1 subnets O       192.168.0.111 [110/11] via 3.3.3.8, 01:25:40, Vlan2                       [110/11] via 3.3.3.3, 01:25:42, Vlan2

下面是虚拟机的配置
虚拟机LVS1和2需要两个网卡  1个走NET8模式  一个走桥接模式
虚拟机首先安装quagga 包
yum -y install quagga  keepalived ipvsadm
LVS1和LVS2上都要安装

配置如下：

keepalived的配置：

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27

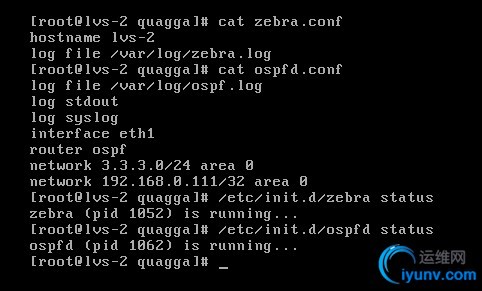

[iyunv@lvs-1 ~]# cat  /etc/keepalived/keepalived.conf vrrp_instance VI_2 {     interface eth3     virtual_router_id 11     priority 30     virtual_ipaddress {         192.168.0.111     } } virtual_server 192.168.0.111 80 {     delay_loop 6     lb_algo rr     lb_kind DR     protocol TCP     real_server 192.168.0.109 80 {         weight 10         inhibit_on_failure         TCP_CHECK {         connect_timeout 9         nb_get_retry 3         delay_before_retry 3         connect_port 80         }     } } 查看服务器上LV1或LVS2上的路由配置

最后 在拿一台电脑模仿PC客户端， 配置IP 6.6.6.3  指定网管为6.6.6.2（R1的接口IP）
然后在该机器上ping  192.168.0.111       重启lvs1 或者LV2  VIP也不会断。
达到实验目的！！！

当然在起个虚拟机模仿也是可以的
