项目说明1、 使用LVS负载均衡用户请求到后端web服务器，并且实现健康状态检查
2、 使用keepalived高可用LVS，避免LVS单点故障
3、 集群中分别在LK-01和LK-02运行一个VIP地址，实现LVS双主
4、 用户通过DNS轮训的方式实现访问集群的负载均衡（不演示）

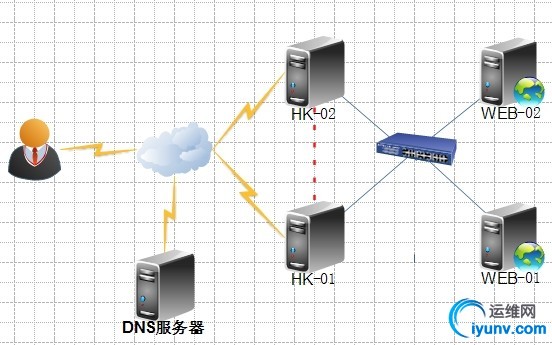

实验拓扑
环境介绍:
| IP地址
| 功能描述
| HK-01
| 172.16.4.100
| 调度用户请求到后端web服务器，并且和LK-02互为备份
| HK-02
| 172.16.4.101
| 调度用户请求到后端web服务器，并且和LK-01互为备份
| WEB-01
| 172.16.4.102
| 提供web服务
| WEB-02
| 172.16.4.103
| 提供web服务
| DNS
| 172.16.4.10
| 实现DNS轮训解析用户请求域名地址
| VIP1
| 172.16.4.1
| 用户访问集群的入口地址，可能在LK-01，也可能在LK-02
| VIP2
| 172.16.4.2
| 用户访问集群的入口地址，可能在LK-01，也可能在LK-02
|
配置示例后端WEB服务器配置Web服务器的配置极其简单，只需要提供测试页面启动web服务即可，配置如下：
Web-01配置
1
2
3
4
5
| [iyunv@WEB-01 ~]# echo "web-01" >/var/www/html/index.html
[iyunv@WEB-01 ~]# service httpd start
Web-02配置
[iyunv@WEB-02 ~]# echo "web-02" >/var/www/html/index.html
[iyunv@WEB-02 ~]# service httpd start
|
LVS访问后端web服务器，验证web服务提供成功
1
2
3
4
| [iyunv@HK-01 ~]# curl 172.16.4.102
web-01
[iyunv@HK-01 ~]# curl 172.16.4.103
web-02
|
出现设置的页面，就说明web服务是正常
Haproxy+keepalived配置两个HK节点都安装haproxy和keepalived
1
2
3
4
| [iyunv@HK-01 ~]# yum -y install haproxy
[iyunv@HK-02 ~]# yum -y install haproxy
[iyunv@HK-01 ~]# yum -y install keepalived
[iyunv@HK-02 ~]# yum -y install keepalived
|
修改内核参数设置，设置haproxy启动的时候不管有没有vip地址都可以启动 1
2
3
4
| [iyunv@HK-01 ~]# echo"net.ipv4.ip_nonlocal_bind = 1" >> /etc/sysctl.conf
[iyunv@HK-01 ~]# sysctl –p
[iyunv@HK-02 ~]# echo "net.ipv4.ip_nonlocal_bind= 1" >> /etc/sysctl.conf
[iyunv@HK-02 ~]# sysctl -p
|
设置haproxy两个haproxy节点的配置文件一模一样，所以只放出一个
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
| [iyunv@HK-01 ~]# vim /etc/haproxy/haproxy.cfg
global
log 127.0.0.1 local2
chroot /var/lib/haproxy
pidfile /var/run/haproxy.pid
maxconn 4000
user haproxy
group haproxy
daemon
statssocket /var/lib/haproxy/stats
defaults
mode http
log global
option httplog
option dontlognull
optionhttp-server-close
optionforwardfor except 127.0.0.0/8
option redispatch
retries 3
timeouthttp-request 10s
timeoutqueue 1m
timeoutconnect 10s
timeoutclient 1m
timeoutserver 1m
timeouthttp-keep-alive 10s
timeoutcheck 10s
maxconn 3000
statsenable
statsuri /admin?stats
statsauth proxy:proxy
listen www1
bind172.16.4.1:80
modehttp
option forwardfor
server www01 172.16.4.102:80 check
server www02 172.16.4.103:80 check
listen www2
bind172.16.4.2:80
modetcp
option forwardfor
server www01 172.16.4.102:80 check
server www01 172.16.4.103:80 check
|
keepalived设置HK-01配置
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
| [iyunv@HK-01 ~]# vim /etc/keepalived/keepalived.conf
global_defs {
router_idLVS_DEVEL
}
vrrp_script chk_mt_down {
script"[[ -f /etc/keepalived/down ]] && exit 1 || exit 0"
interval 1
weight -5
}
vrrp_instance VI_1 {
stateMASTER
interfaceeth0
virtual_router_id 51
priority100
advert_int 1
authentication {
auth_type PASS
auth_pass asdfgh
}
virtual_ipaddress {
172.16.4.1/32 brd 172.16.4.1 dev eth0 label eth0:0
}
track_script {
chk_mt_down
}
}
vrrp_instance VI_2 {
stateBACKUP
interfaceeth0
virtual_router_id 52
priority99
advert_int 1
authentication {
auth_type PASS
auth_pass qwerty
}
virtual_ipaddress {
172.16.4.2
}
track_script {
chk_mt_down
}
}
|
HK-02配置
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
| [iyunv@HK-02 ~]# vim /etc/keepalived/keepalived.conf
global_defs {
router_idLVS_DEVEL
}
vrrp_script chk_mt_down {
script"[[ -f /etc/keepalived/down ]] && exit 1 || exit 0"
interval 1
weight -5
}
vrrp_instance VI_1 {
stateBACKUP
interfaceeth0
virtual_router_id 51
priority99
advert_int 1
authentication {
auth_type PASS
auth_pass asdfgh
}
virtual_ipaddress {
172.16.4.1/32 brd 172.16.4.1 dev eth0 label eth0:0
}
track_script {
chk_mt_down
}
}
vrrp_instance VI_2 {
stateMASTER
interfaceeth0
virtual_router_id 52
priority100
advert_int 1
authentication {
auth_type PASS
auth_pass qwerty
}
virtual_ipaddress {
172.16.4.2
}
track_script {
chk_mt_down
}
}
|
设置完成之后两个节点分别启动haproxy和keepalived服务，集群就配置完成了
1
2
3
4
| [iyunv@HK-01 ~]# service haproxy start
[iyunv@HK-01 ~]# service keepalived start
[iyunv@HK-02 ~]# service haproxy start
[iyunv@HK-02 ~]# service keepalived start
|

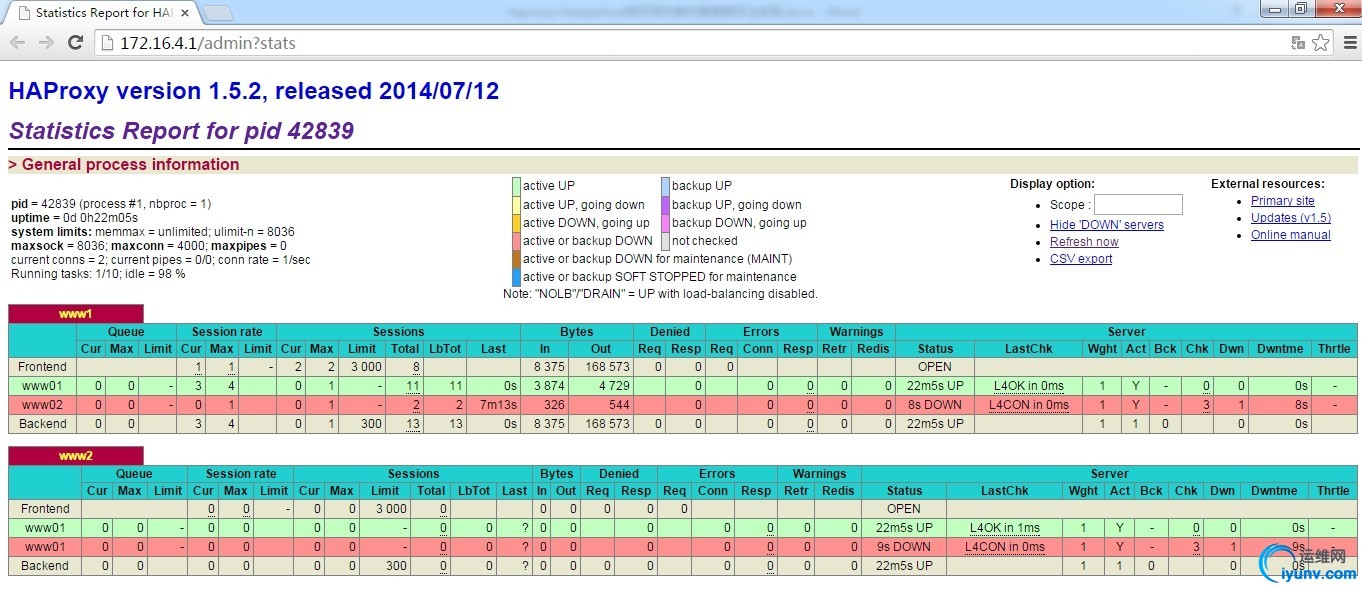

验证访问状态页面，www1，和www2示例都显示正常
VIP地址也可以正常启动
1
2
3
4
5
6
7
8
9
10
11
12
13
14
| [iyunv@HK-01 ~]# ip addr show dev eth0
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP>mtu 1500 qdisc pfifo_fast state UP qlen 1000
link/ether 00:0c:29:22:c5:c2 brd ff:ff:ff:ff:ff:ff
inet172.16.4.100/16 brd 172.16.255.255 scope global eth0
inet172.16.4.1/32 brd 172.16.4.1 scope global eth0:0
inet6fe80::20c:29ff:fe22:c5c2/64 scope link
valid_lft forever preferred_lft forever
[iyunv@HK-02 ~]# ip addr show dev eth0
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP>mtu 1500 qdisc pfifo_fast state UP qlen 1000
link/ether 00:0c:29:f1:dd:b2 brd ff:ff:ff:ff:ff:ff
inet172.16.4.101/16 brd 172.16.255.255 scope global eth0
inet172.16.4.2/32 scope global eth0
inet6fe80::20c:29ff:fef1:ddb2/64 scope link
valid_lft forever preferred_lft forever
|
负载均衡测试分别访问两个vip地址均实现了负载均衡的效果
1
2
3
4
5
6
7
8
| [iyunv@localhost ~]# curl 172.16.4.1
web-02
[iyunv@localhost ~]# curl 172.16.4.1
web-01
[iyunv@localhost ~]# curl 172.16.4.2
web-01
[iyunv@localhost ~]# curl 172.16.4.2
web-02
|
高可用验证手动关闭其中HK-02，验证vip地址是否会自动漂移到HK-01服务器
[iyunv@HK-02 ~]# touch /etc/keepalived/down
两个vip地址均正常漂移到HK-02
1
2
3
4
5
6
7
8
| [iyunv@HK-01 ~]# ip addr show dev eth0
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP>mtu 1500 qdisc pfifo_fast state UP qlen 1000
link/ether 00:0c:29:22:c5:c2 brd ff:ff:ff:ff:ff:ff
inet172.16.4.100/16 brd 172.16.255.255 scope global eth0
inet172.16.4.1/32 brd 172.16.4.1 scope global eth0:0
inet172.16.4.2/32 scope global eth0
inet6fe80::20c:29ff:fe22:c5c2/64 scope link
valid_lft forever preferred_lft forever
|
健康状态检测验证手动关闭web-02，查看是否会自动下线web-02
1
| [iyunv@WEB-02 ~]# service httpd stop
|
查看web状态页面，WEB-02已经自动下线了
访问验证，调度请求不会转发到web-02
1
2
3
4
5
6
7
8
| [iyunv@localhost ~]# curl 172.16.4.1
web-01
[iyunv@localhost ~]# curl 172.16.4.1
web-01
[iyunv@localhost ~]# curl 172.16.4.2
web-01
[iyunv@localhost ~]# curl 172.16.4.2
web-01
|
|
