eNSP园区网络结构图配置

oiuy

实验要求：

1、 掌握汇聚层终结vlan

2、 掌握三层交换机怎样配置IP

3、 掌握三层交换机虚拟接口怎样配IP



实验拓扑：

实验步骤：

1、 划分vlan

---------------------二层交换机-----------------SW2----------------

[SW2]vlan 10

[SW2-vlan10]vlan 20

[SW2-vlan20]int e0/0/1

[SW2-Ethernet0/0/1]port link-type access

[SW2-Ethernet0/0/1]port default vlan 10

[SW2-Ethernet0/0/1]int e0/0/2

[SW2-Ethernet0/0/2]port link-type access

[SW2-Ethernet0/0/2] port default vlan 20

-----------------------SW4-----------------------

[SW4]vlan 10

[SW4-vlan10]vlan 20

[SW4-vlan20]int e0/0/1

[SW4-Ethernet0/0/1]port link-type access

[SW4-Ethernet0/0/1]port default vlan 10

[SW4-Ethernet0/0/1]int e0/0/2

[SW4-Ethernet0/0/2]port link-type access

[SW4-Ethernet0/0/2]port default vlan 20

-------------------------------------三层交换机-----------SW1--------------------------

[SW1]vlan 10

[SW1-vlan10]vlan 20

2、 开中继口

----------------二层交换机--------SW2--------------

[Huawei-Ethernet0/0/2]int g0/0/1

[Huawei-GigabitEthernet0/0/1]port link-type trunk

[Huawei-GigabitEthernet0/0/1]port trunk allow-pass vlan 10 20

-------------------SW4---------------------------

[Huawei-Ethernet0/0/2]int g0/0/2

[Huawei-GigabitEthernet0/0/2]port link-type trun

[Huawei-GigabitEthernet0/0/2]port trunk allow-pass

vlan 10 20

---------------三层交换机--------SW1---------------

[Huawei-vlan20]int g0/0/1

[Huawei-GigabitEthernet0/0/1]port link-type trunk

[Huawei-GigabitEthernet0/0/1]port trunk allow-pass vlan 10 20

[Huawei-GigabitEthernet0/0/1]int g0/0/2

[Huawei-GigabitEthernet0/0/2]port link-type trunk

[Huawei-GigabitEthernet0/0/2]port trunk allow-pass vlan 10 20

用查看命令查看当前配置display ip interface brief

3、DHCP、vlan间路由

[SW1]dhcp enable

[SW1]int vlan 10

[SW1-Vlanif10]ip add 192.168.10.1 24

[SW1-Vlanif10]dhcp select interface

[SW1-Vlanif10]dhcp server dns-list 8.8.8.8

[SW1]int vlan 20

[SW1-Vlanif20] ip add 192.168.20.1 24

[SW1-Vlanif20]dhcp select interface

[SW1-Vlanif20]dhcp server dns-list 9.9.9.9

4、dhcp获得地址

PC1用ping命令检测

5、华为三层交换机没有三层接口，为了使三层交换机与上行口路由互通，必须在交换机上加一个他们同属的vlan

[SW1]vlan 100

[SW1-Vlanif100]int g0/0/24

[SW1-GigabitEthernet0/0/24]port link-type access

[SW1-GigabitEthernet0/0/24]port default vlan 100

[SW1]int vlan 100

[SW1-Vlanif100]ip add 192.168.1.1 24

[SW1-Vlanif100]undo shut

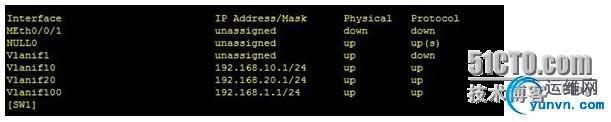

Display ip interface brief

6、路由配置IP地址

---------------------------------------------AR1---------------------------------------------

[AR1]int g0/0/0

[AR1-GigabitEthernet0/0/0]ip add 192.168.1.2 24

[AR1-GigabitEthernet0/0/0]undo shut

[AR1-GigabitEthernet0/0/0]int g0/0/1

[AR1-GigabitEthernet0/0/1]ip add 202.106.1.1 30

[AR1-GigabitEthernet0/0/1]undo shut

--------------------AR2--------------------------

[AR2]int g0/0/1

[AR2-GigabitEthernet0/0/1]ip add 202.106.1.2 30

[AR2-GigabitEthernet0/0/1]undo shut

7、为了实现业务网段上网，必须在出口路由器上做PAT

[AR1]acl 2000

[AR1-acl-basic-2000]rule 5 permit source 192.168.10.0 0.0.0.255

[AR1-acl-basic-2000]rule 10 permit source 192.168.20.0 0.0.0.255

[AR1-acl-basic-2000]int g0/0/1

[AR1-GigabitEthernet0/0/1]nat outbound 2000

8、由于AR1不知道向192.168.10.0、192.168.20.0网段怎么回包，所以在此处向下加静态

[AR1]ip route-static 192.168.10.0 255.255.255.0 192.168.1.1

[AR1]ip route-static 192.168.20.0 255.255.255.0 192.168.1.1

9、由于SW1对外上网不知道怎么传输数据，所以在此处加默认路由

[SW1]ip route-static 0.0.0.0 0.0.0.0 192.168.1.2

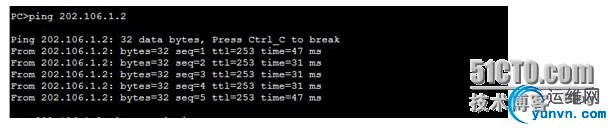

用ping命令检测全网是否互通
