SQL Server 加密功能实例

uykjgfh

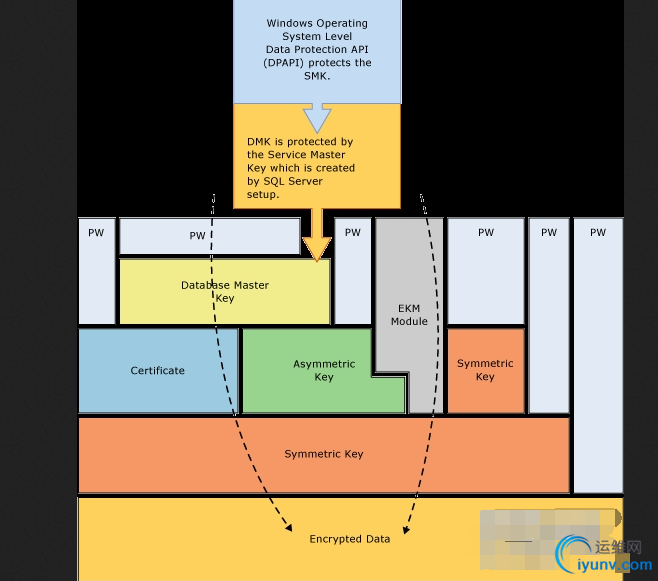

SQL Server中加密是层级的，每一个上层为下提供保护。如图：

实例：
/**
SMK(Service Master Key)在SQL Server安装时生成,由Windows DPAPI(Data Protection API)提供保护
**/

/**创建数据库级别DMK(Database Master Key),受SMK保护**/
create master key encryption by password=N'Passw0rd'
go

/**数据库内的加密对象受DMK保护
支持的对称加密算法:DES | TRIPLE_DES | TRIPLE_DES_3KEY | RC2 | RC4 | RC4_128| DESX | AES_128 | AES_192 | AES_256
非对称加密算法：RSA_512 | RSA_1024 | RSA_2048
注意避免使用RC,DESX类算法,2014之后会删除此功能
**/
--1.创建非对称密钥.

1 2 3 4

create asymmetric key asyc_key_enc with algorithm=RSA_1024 encryption by password=N'Pass@word' go

--2.创建对称密钥.

1 2 3 4

create symmetric key symc_key_enc with algorithm=Triple_DES encryption by password=N'Pass@word' go

--3.创建证书.证书也可被其它方式保护

1 2 3

create certificate cert_ENC with subject='certificate for ENC',expiry_date='20990101' go

--4.对称密钥可由以上三种方式提供加密保护
--4.1 由非对称密钥加密

1 2 3 4

create symmetric key symc_key_enc_byAsyc with algorithm=AES_128 encryption by asymmetric key asyc_key_enc go

--4.2 由对称密钥加密

1 2 3 4 5 6 7

open symmetric key symc_key_enc decryption by password=N' Pass@word'; create symmetric key symc_key_enc_bySymc with algorithm = DES encryption by symmetric key symc_key_enc go

--4.3 由证书加密

1 2 3 4

create symmetric key symc_key_enc_byCert with algorithm =AES_128 encryption by certificate cert_ENC go

/**列级数据加密和解密.MSSQL提供以下4对加密/解密函数对列数据加密
EncryptByCert() 和DecryptByCert()—利用证书对数据进行加密和解密
EncryptByAsymKey() and DecryptByAsymKey()—利用非对称密钥对数据进行加密和解密
EncryptByKey() and DecryptByKey()—利用对称密钥对数据进行加密和解密
EncryptByPassphrase() and DecryptByPassphrase()—利用密码字段产生对称密钥对数据进行加密和解密
注意:被加密和解密的数据,必需是varbinary类型
**/

--以ENCRYPTBYKEY为例，其它的大同小异
--对***号IDN进行加密和解密

1 2 3 4

create table tb(IDN int,Name varchar(20)); insert into tb values (123456789,'BigBrother'),(090807001,'SpiderMan'),(336655789,'SuperMan') go

--新增列Ency_IDN存储加密数据,使用之前由非对称密钥加密的对称密钥symc_key_enc_byAsyc来加密数据

1 2 3 4 5 6 7 8 9 10

alter table tb add Ency_IDN varbinary(128); go open symmetric key symc_key_enc_byAsyc decryption by asymmetric key asyc_key_enc with password=N' Pass@word'; update tb set Ency_IDN=ENCRYPTBYKEY(KEY_GUID('symc_key_enc_byAsyc'),CONVERT(Varbinary,IDN));--加密前要转成varbinary close symmetric key symc_key_enc_byAsyc --显式关闭对称密钥 go

--解密被加密的列数据

1 2 3 4 5 6 7 8

open symmetric key symc_key_enc_byAsyc decryption by asymmetric key asyc_key_enc with password=N' Pass@word'; select IDN,Ency_IDN,convert(int,DECRYPTBYKEY(Ency_IDN))as Decr_IDN from tb; close symmetric key symc_key_enc_byAsyc --显式关闭对称密钥 go
