ESXI5.5添加本地磁盘出错的解决

dsfggg

在esxi5.5的虚拟化服务器上添加一块900G的硬盘时，报如下错误。

这个错误的出现主要是因为这块盘被使用过，还带有原分区信息。

解决办法：

首先到 配置->安全配置文件里启用ssh服务。然后远程登陆EXSI主机。

1、查看分区信息

ls  /vmfs/devices/disks

2、与exsi上的标识符对应

3、使用partedutil工具看到有1个分区，然后删除分区。(注：LINUX里新建和调整分区一般用FDISK和PARTED。 fdisk可划分单个分区不超过2T的分区，parted命令可以划分单个分区大于2T的GPT格式的分区，在EXSI里使用partedUtil命令来设置和调整分区。)
#partedUtil delete vmfs/devices/disks/naa.600605b0051527001970471b0e906a8b  1

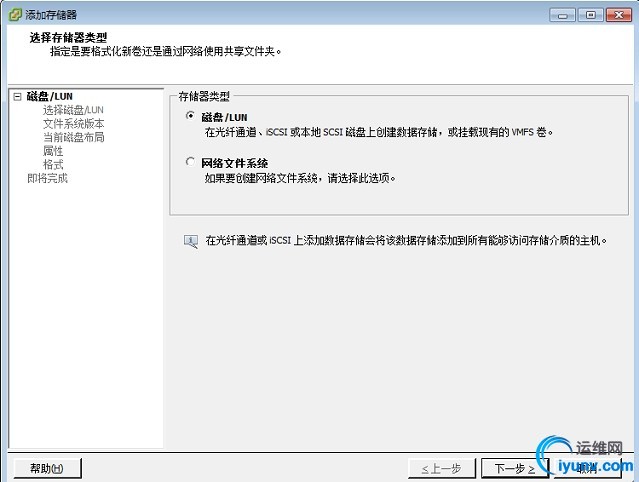

4、重新添加磁盘

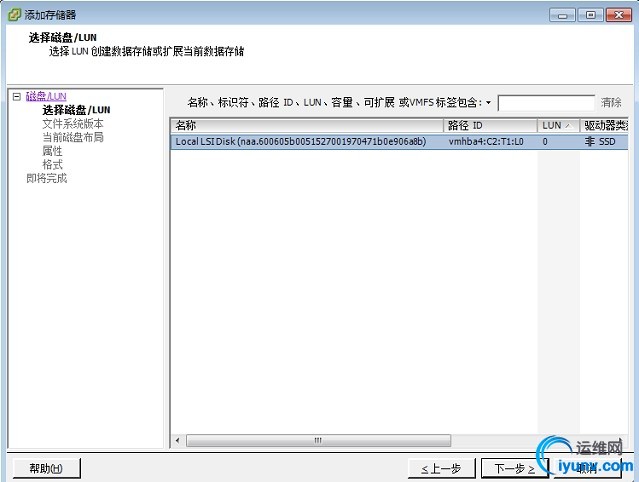

5、选择磁盘

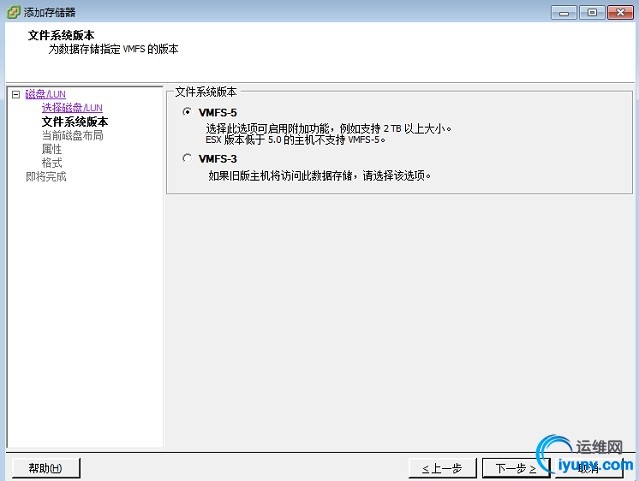

6、选择文件系统

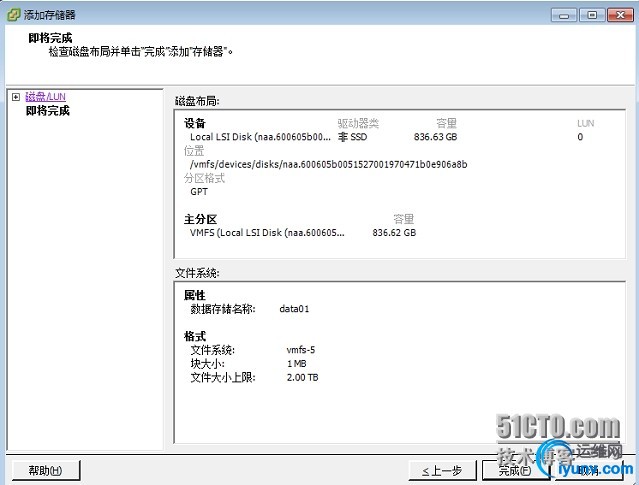

7、检查磁盘布局并完成

8、添加成功。

附：重置分区大小
Resizing a partitionThe partedUtil command can be used to resize an existing partition on ESXi/ESX 4.0 and higher. This does not resize the file system within the partition, and is no different from deleting and recreating the partition with a new starting or ending sector.

To resize a partition, run this command:

partedUtil resize "/vmfs/devices/disks/DeviceName" PartitionNumber NewStartSector NewEndSector

Example: To move partition 4 such that it starts in the same location (for example, 2474073) and ends at the new ending sector (1234567890), run this command:

partedUtil resize "/vmfs/devices/disks/mpx.vmhba0:C0:T0:L0" 4 2474073 1234567890

Caution: There is no facility to undo a partition table change other than creating a new partition table. Ensure that you have a backup before making any change. Ensure that there is no active I/O to a partition before modifying it.
